Send Digital Input to PMC

Send a digital input to the PMC. The PMC will react to the digital input as configured by Configure Digital Input to PMC.

Fieldbus Interface

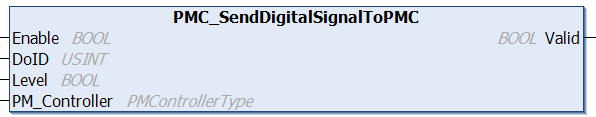

PMC_SendDigitalSignalToPMC

Inputs

Name	Data Type	Description
Enable	BOOL	Set to TRUE to enable the function block. It will continuously obtain the most up-to-date value(s) until reset to FALSE.
DoID	UINT	Digital Input ID, valid range [1,128]
Level	BOOL	TRUE: Turn Digital Input on; FALSE: Turn Digital Input off
PM_Controller	PMControllerType	Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC.

Outputs

Name	Data Type	Description
Valid	BOOL	TRUE: output values have been successfully read. FALSE: unable to obtain output values.

Operating Conditions
Preconditions	None
Postconditions	The specified Digital Input is sent to the PMC

Send a digital input to the PMC. The PMC will react to the digital input as configured by Configure Digital Input to PMC.
