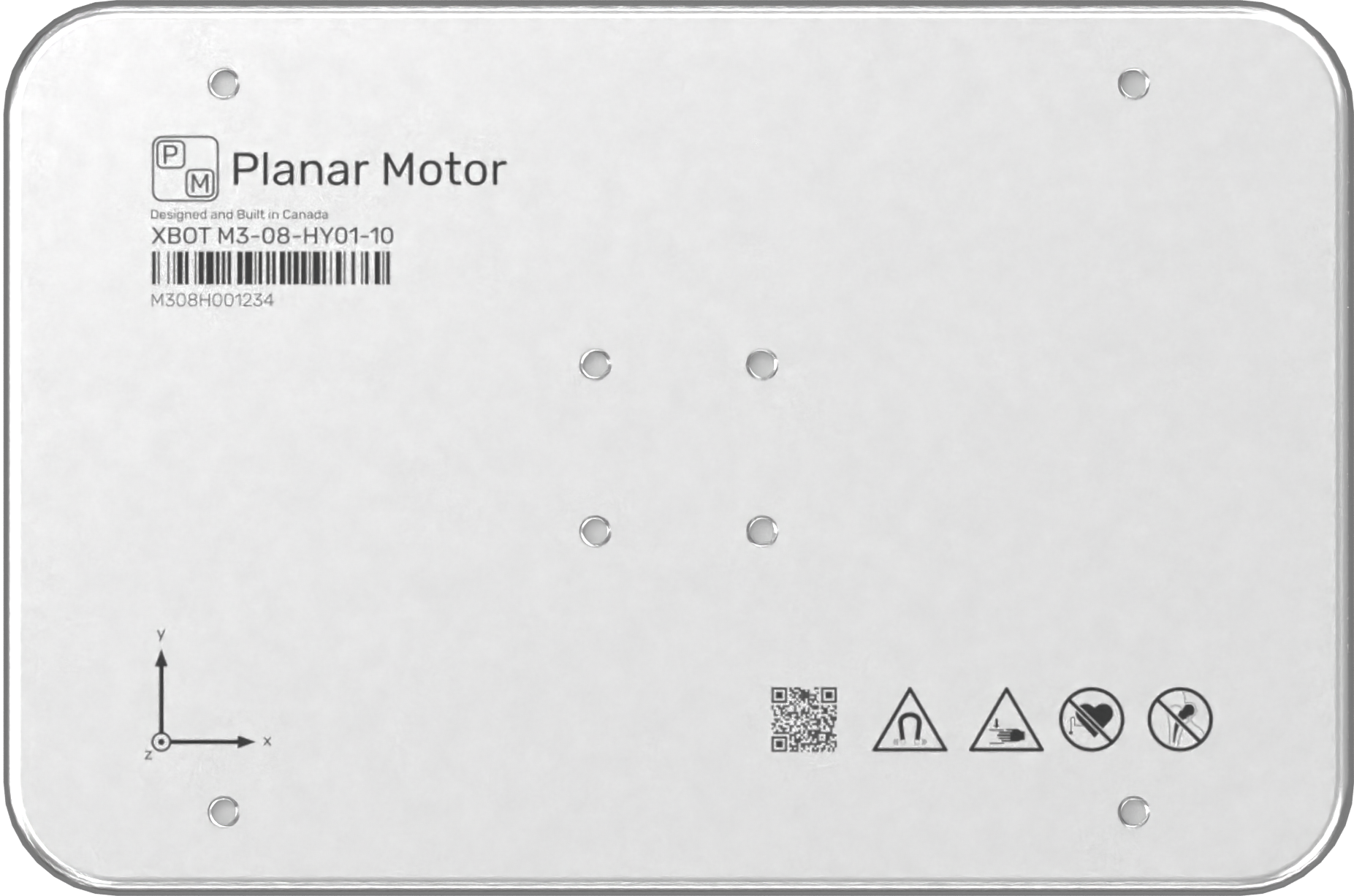

M3-08-HY01-10

General Data

Model No

M3-08-HY01-10

Description

XBot (Mover)

1 micron repeatability typ.

Absolute traceability

Dimensions

178.1 x 118.1 x 8.5 mm

Payload

1.0 kg

Absolute ID

Integrated

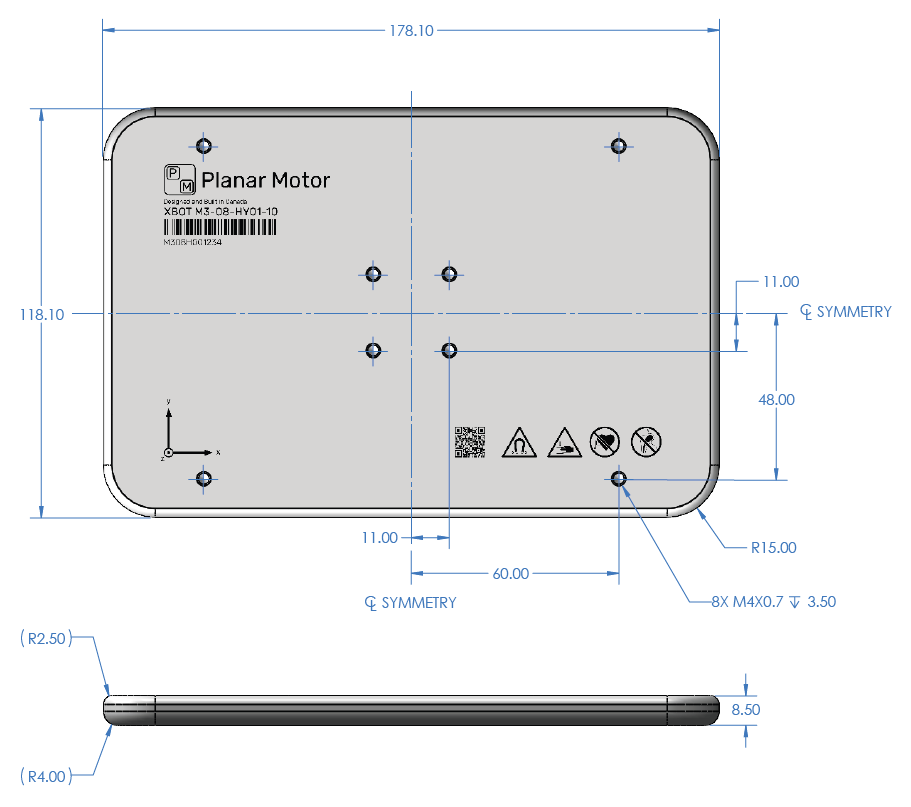

Mechanical CAD data

2D (PDF) / 3D (STEP)

XBot Conditions

Temperature

Operating

5°C to 70°C

Relative Humidity

Operating

0% to 100%

Ambient Conditions

Temperature

Storage / Transport

-25°C to 70°C

Relative Humidity

Storage / Transport

0% to 100%

Mechanical properties

Dimensions

    Length

178.1 mm

    Width

118.1 mm

    Height

8.5 mm

Weight

0.90 kg

Material

316-L Stainless Steel

Autoclave safe

No

Surface Roughness

Ra 1.6 on M3-08-HY01-10

Ra 0.8 on M3-08-HY81-10

Payload Mounting Holes

8 x M4x0.7^*
