Deactivate Auto Loading Zone

This command is used to deactivate an auto loading zone activated using Activate Auto Loading Zone. Deactivating an auto loading zone stops it from performing any auto loading/unloading operations.

Fieldbus Interface

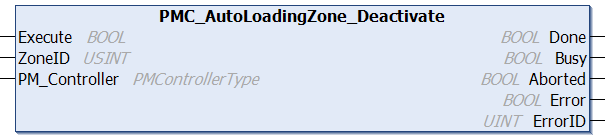

PMC_AutoLoadingZone_Deactivate

Inputs

Name	Data Type	Description
Execute	BOOL	Execution of the function block begins on a rising edge of this input.
ZoneID	USINT	Zone ID, valid range [1,40]
PM_Controller	PMControllerType	Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC.

Outputs

Name	Data Type	Description
Done	BOOL	Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE)
Busy	BOOL	Function block is active and must continue to be called.
Aborted	BOOL	Command aborted by another command.
Error	BOOL	If there is an error in processing the command, then Error = TRUE, otherwise, FALSE.
ErrorID	UINT	0x0: All OK. Otherwise, please see Fieldbus Reply Codes.

Ethernet Interface

PMCRTN AutoLoadingZoneControl(ALZONEOPERATION zoneOp, int zoneID, AutoLoadZoneDefinition zoneDefinition)

Parameters

Name	Type	Description
zoneOp	enum	DEACTIVATE_AUTOLOAD_ZONE (3) = deactivate zone
zoneID	int	Zone ID, valid range [1,40]
zoneDefinition	struct	Ignored, can send empty/new struct

Returns

Name	Type	Description
PMCRTN	PMCRTN enum	ALLOK (0): Command Accepted. Otherwise, please see Ethernet Reply Codes.

Conditions

Operating Conditions
Preconditions	The specified Auto Loading Zone is defined
Postconditions	The specified Auto Loading Zone is deactivated

Description

This command is used to deactivate an auto loading zone activated using Activate Auto Loading Zone. Deactivating an auto loading zone stops it from performing any auto loading/unloading operations.
