S4-xN Mounting Plate Guide

Download S4-xN Mounting Plate Guide (PDF, DXF, STEP)

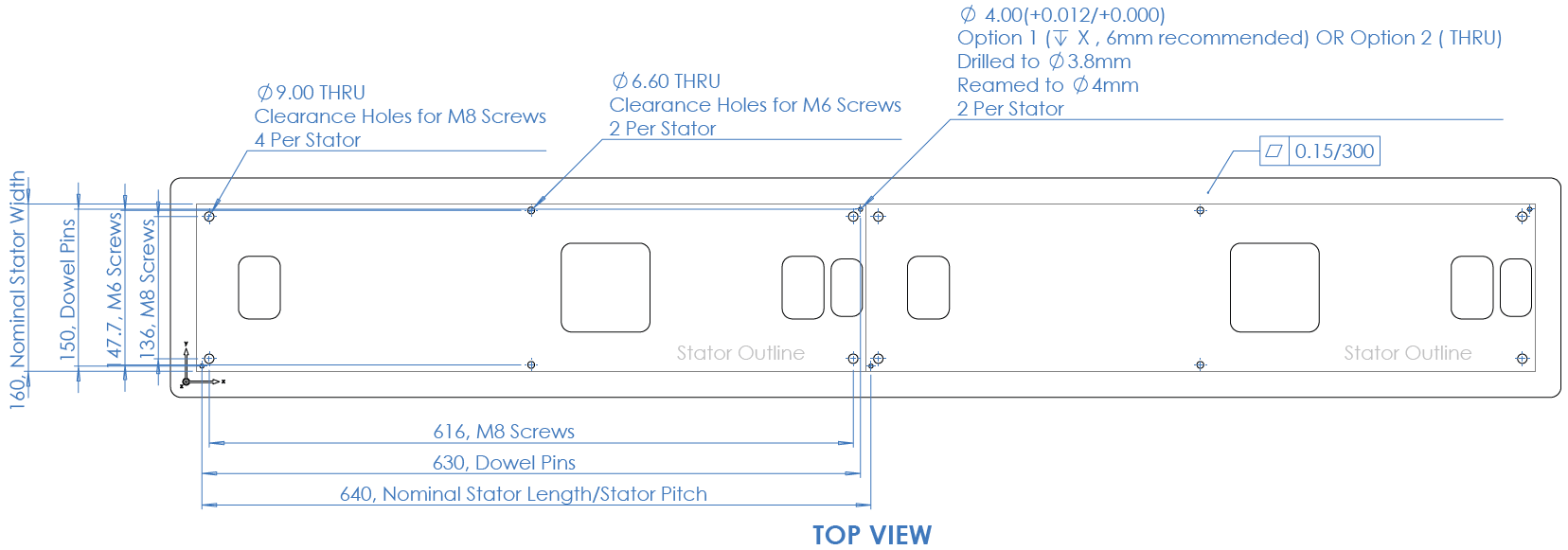

Example 2 x 1 S4-xN Flyway mounting plate.png — Example 2 x 1 S4-xN Flyway mounting plate

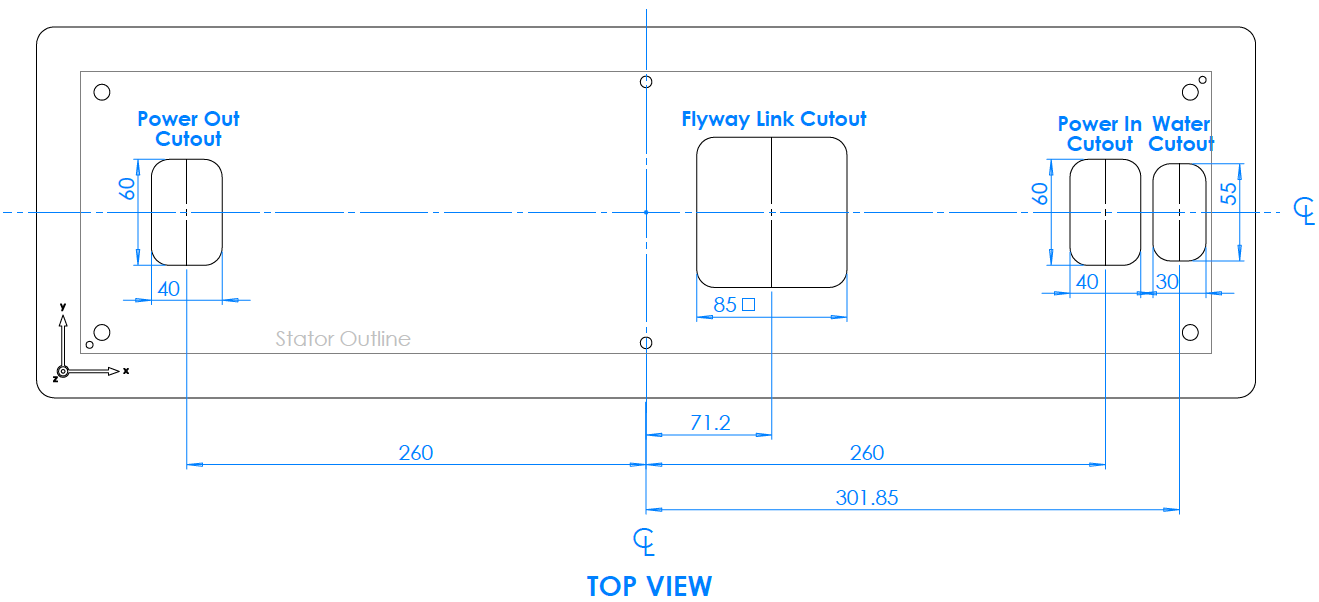

Example 1 x 1 S4-xN Flyway mounting plate.png — Example 1 x 1 S4-xN Flyway mounting plate

Layout Restrictions

Using S4-xS and S4-xN Flyways together create restrictions on the possible configurations of the system.

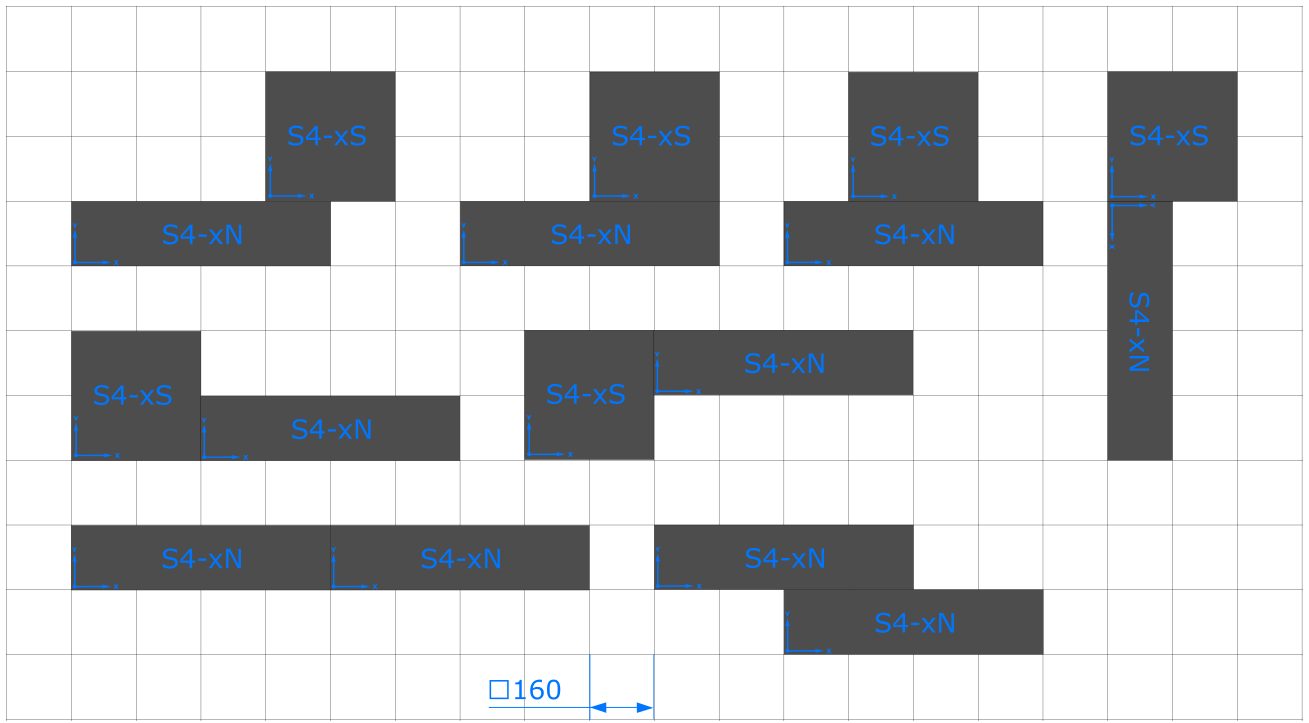

Allowable example 4-series configurations
