M4 XBots Magnetic Field Diagrams
M4-09-SD00-10

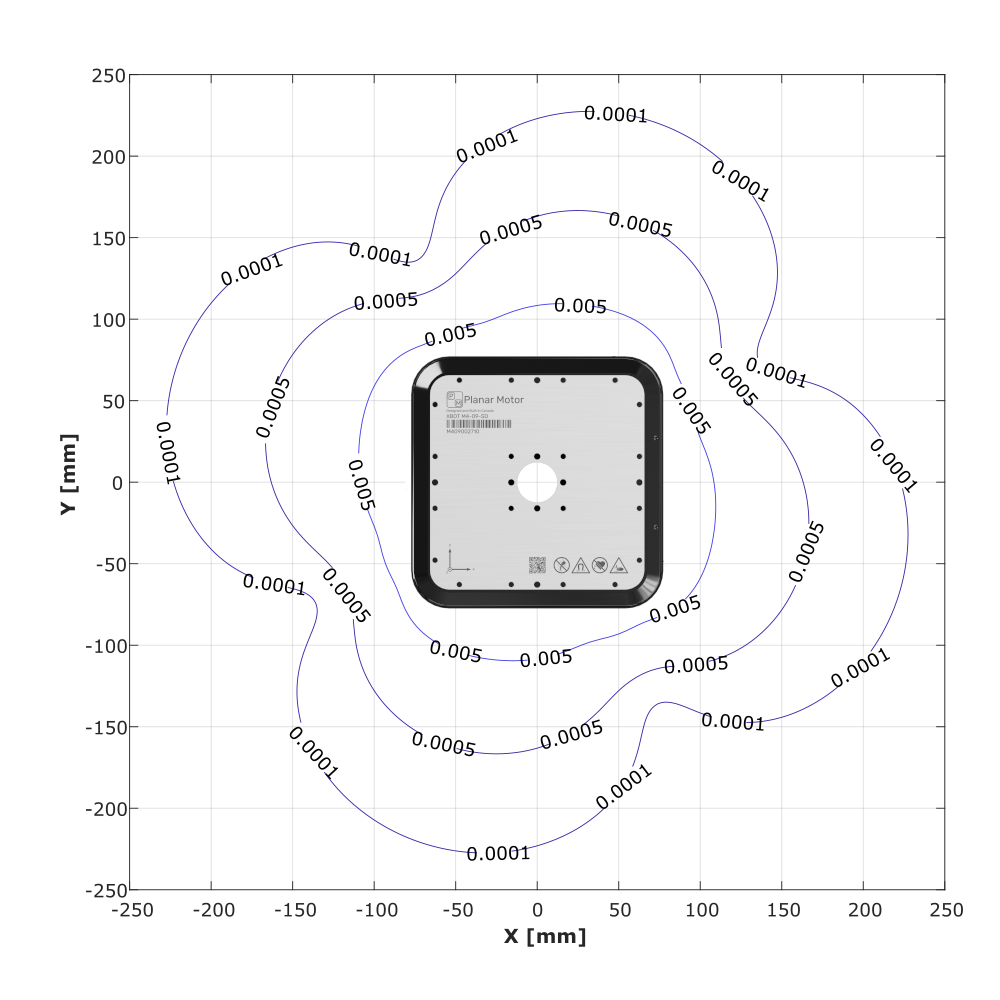

M4-09-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

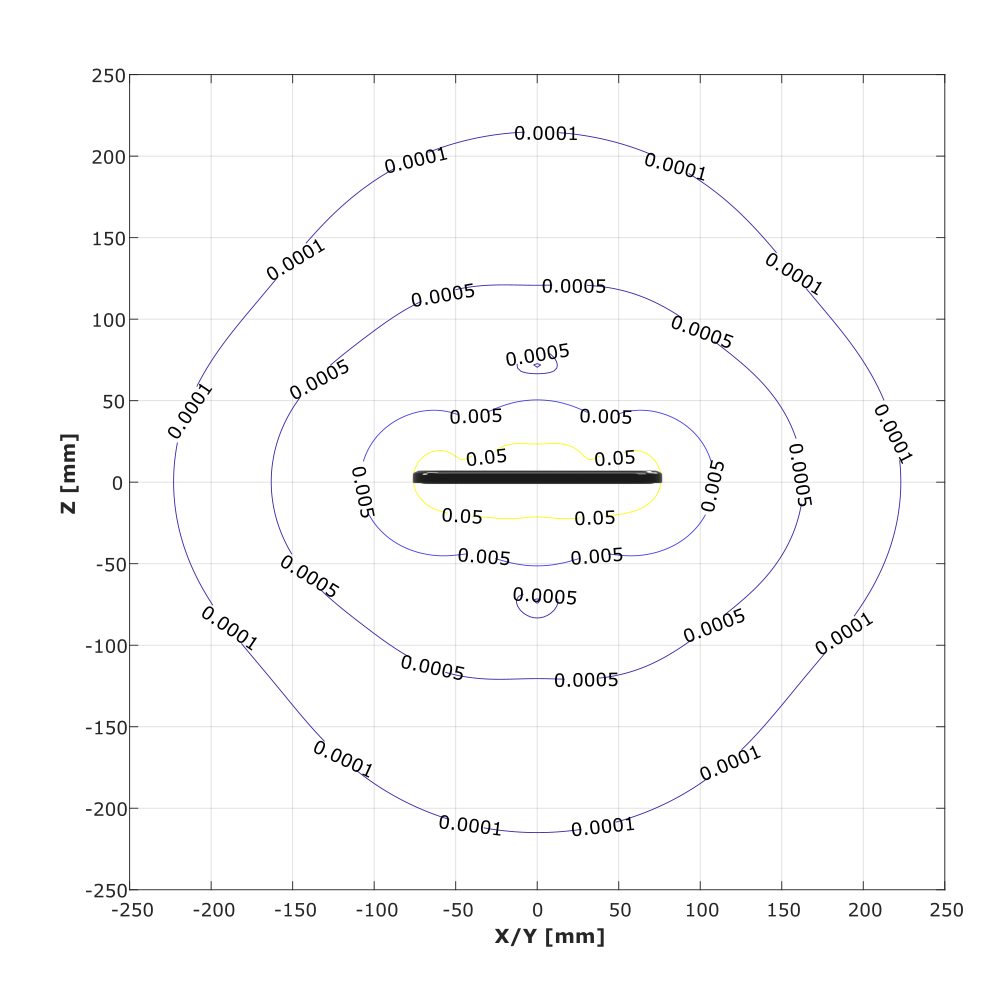

M4-09-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-11-SD00-11

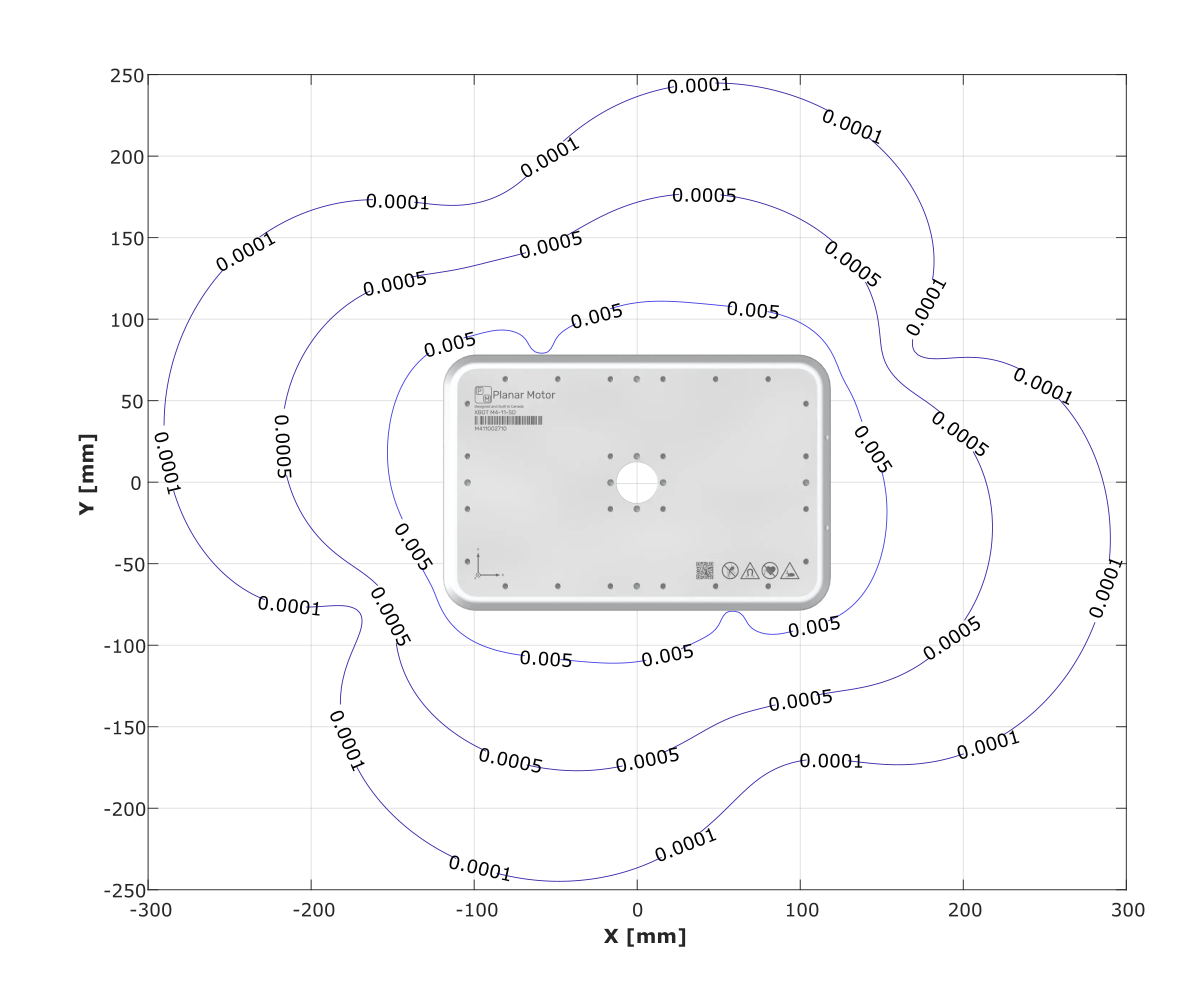

M4-11-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm
M4-12-SD00-11

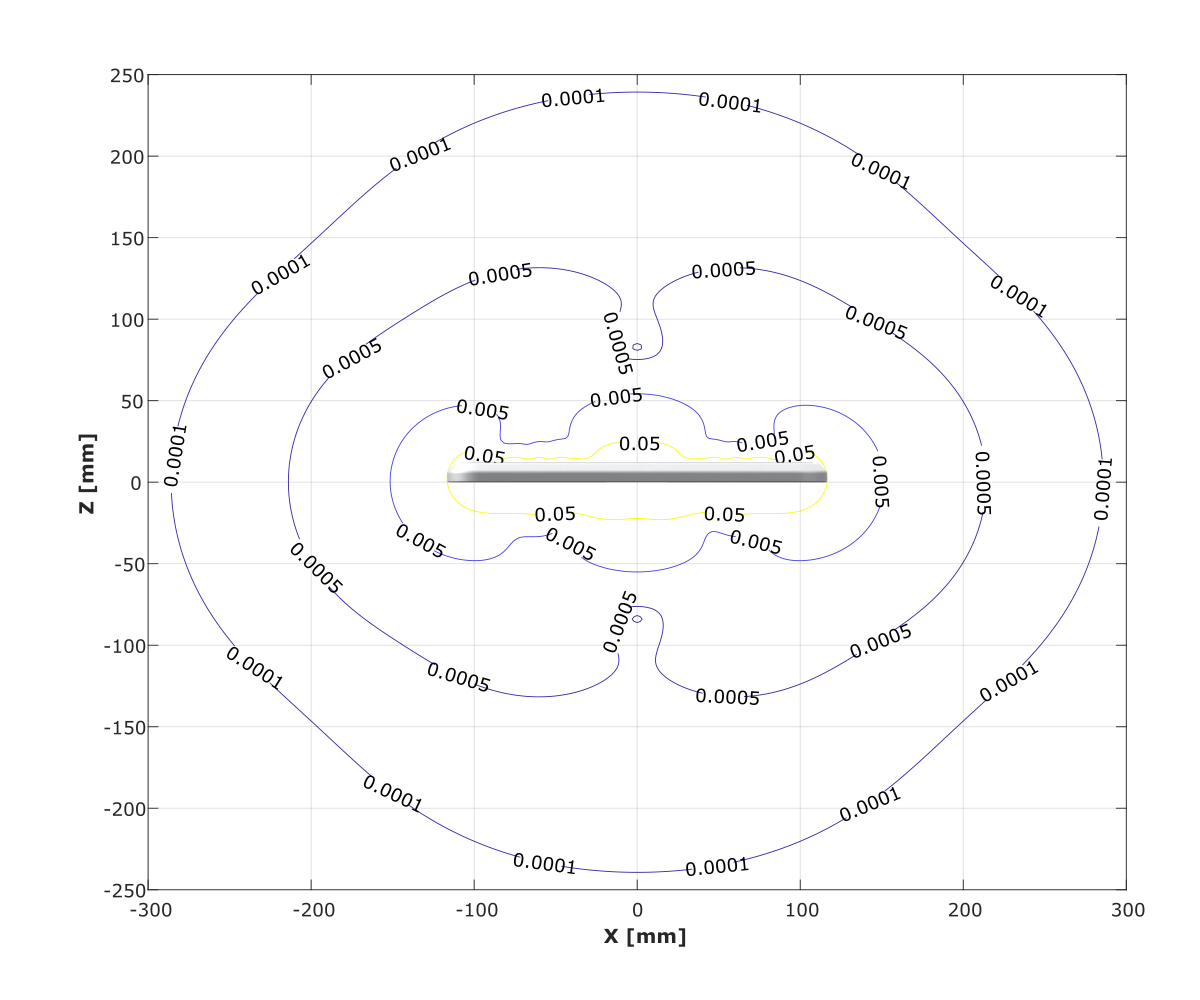

M4-11-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm

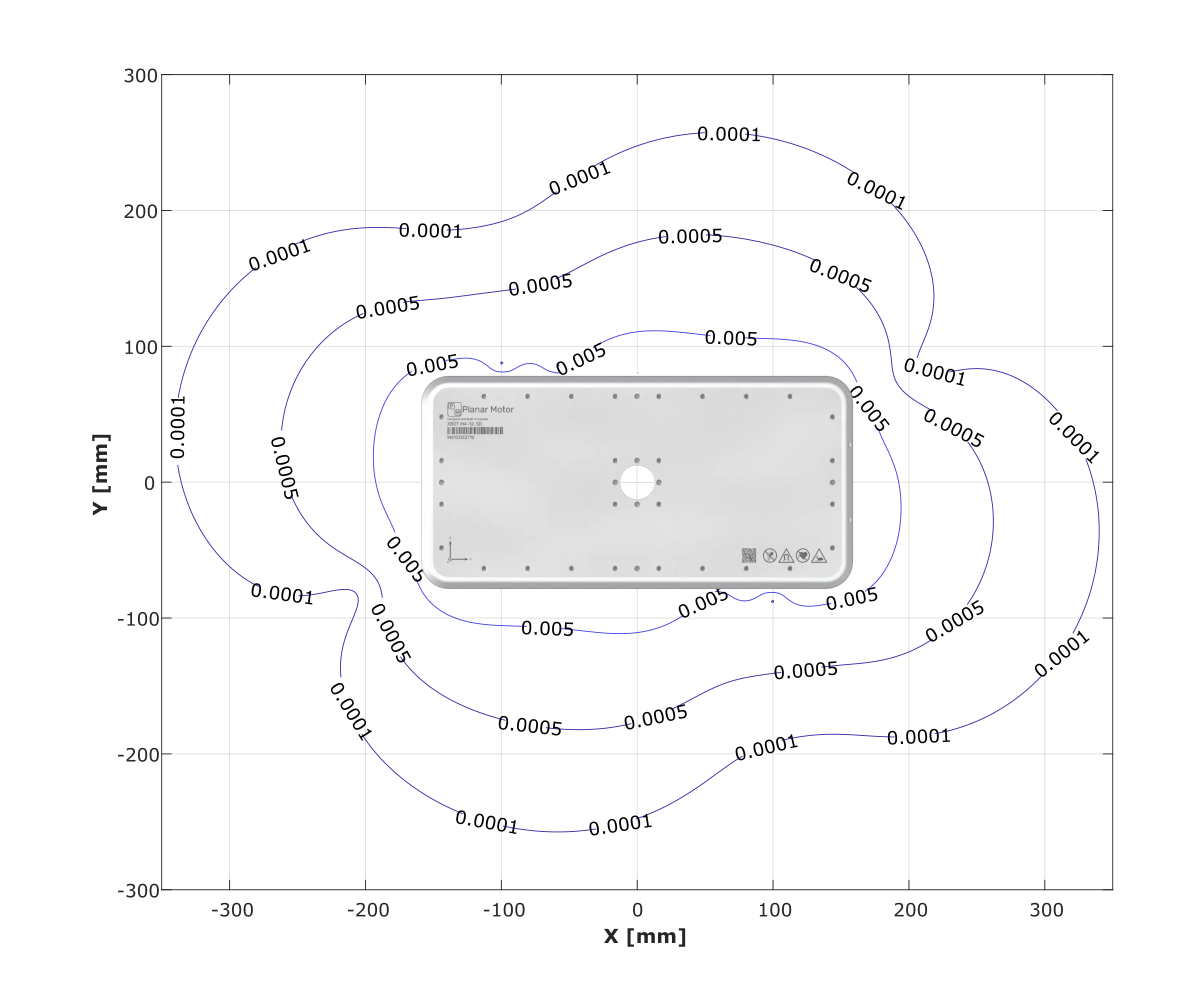

M4-12-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm

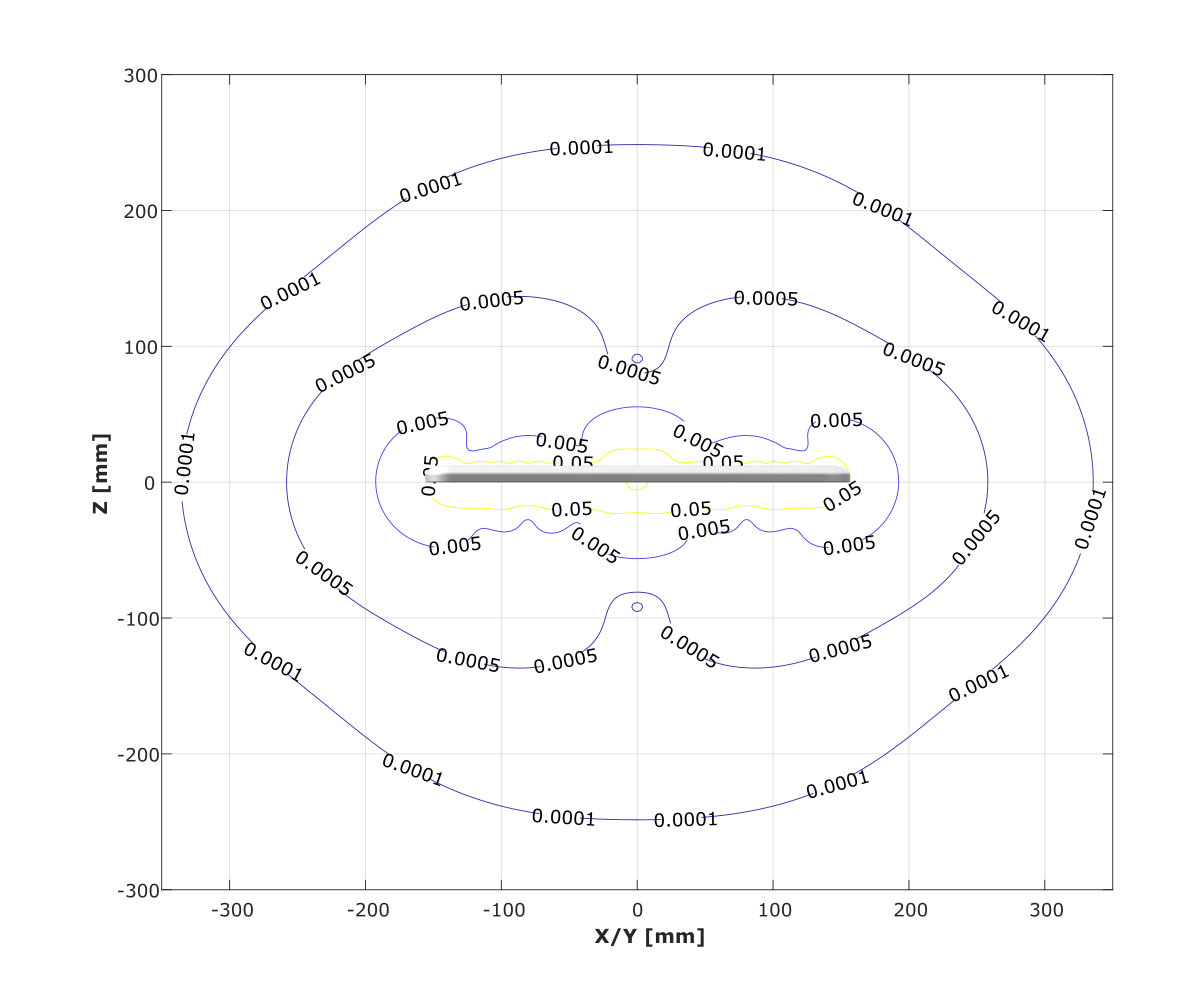

M4-12-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-13-SD00-11

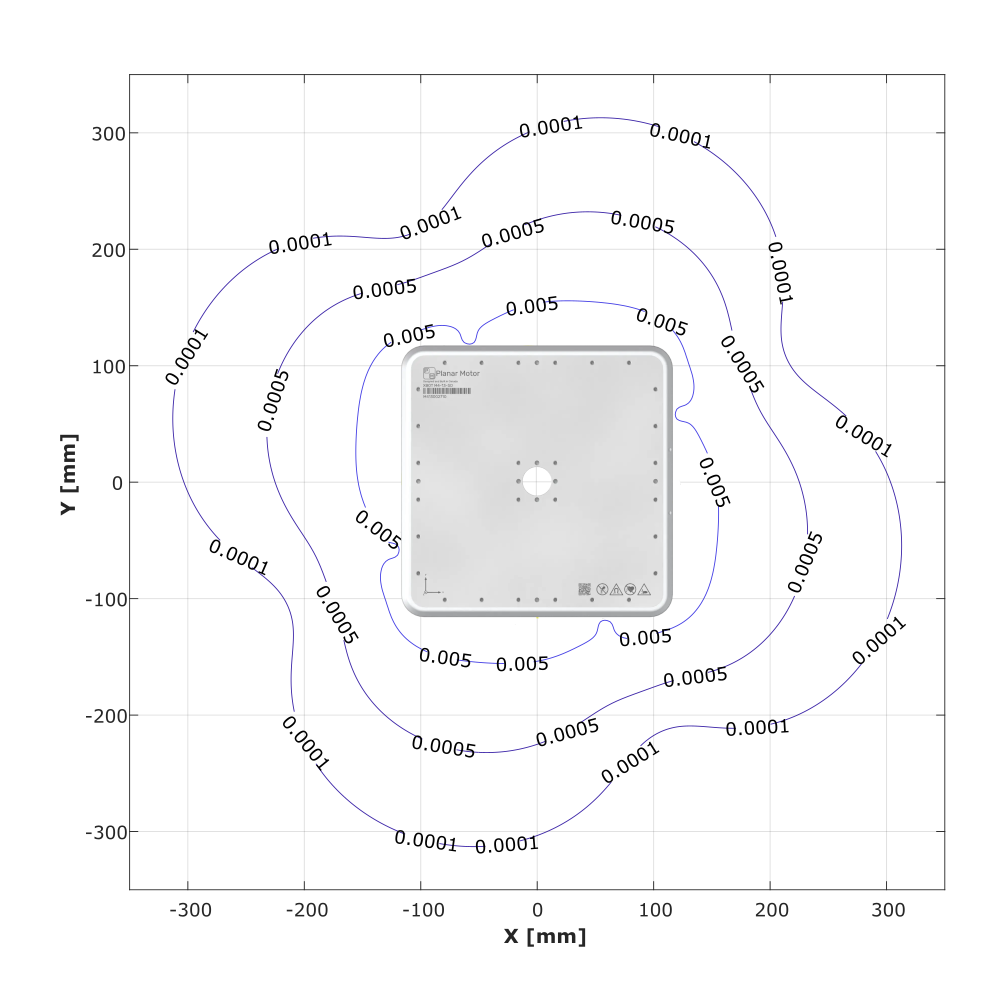

M4-13-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm

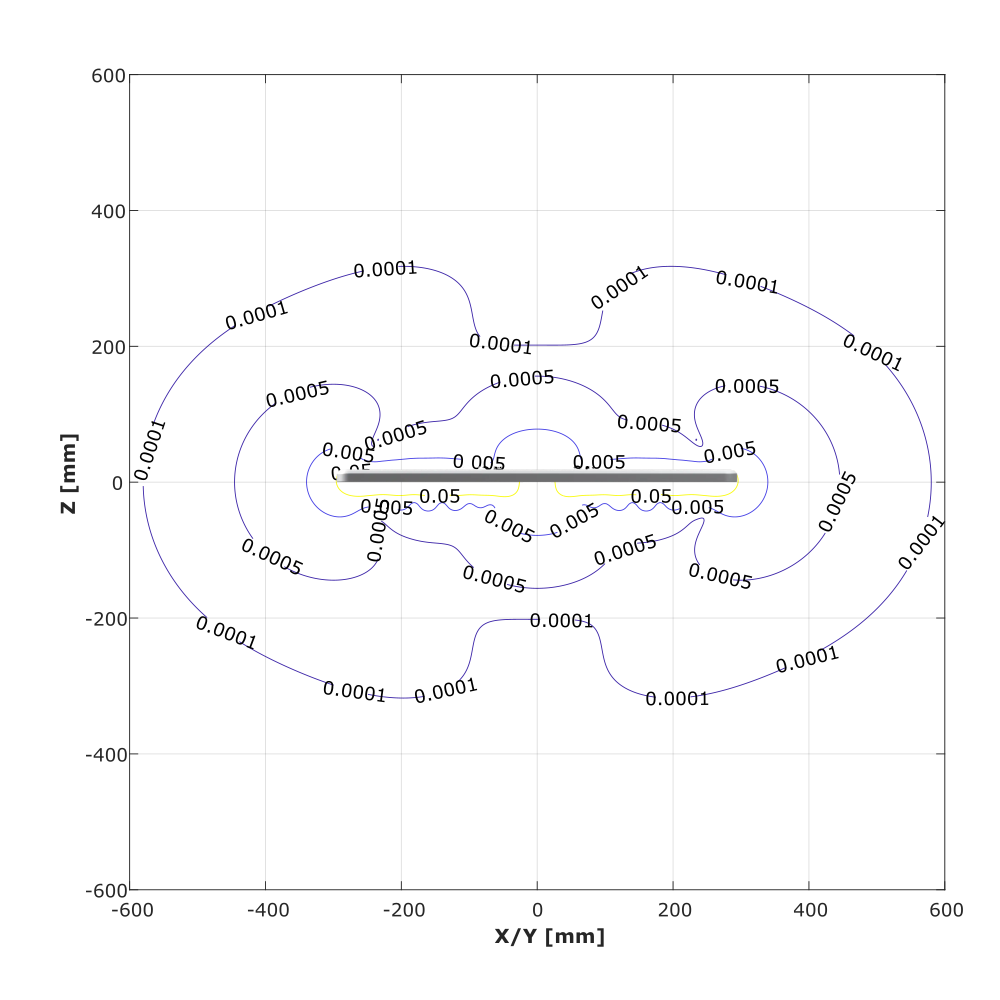

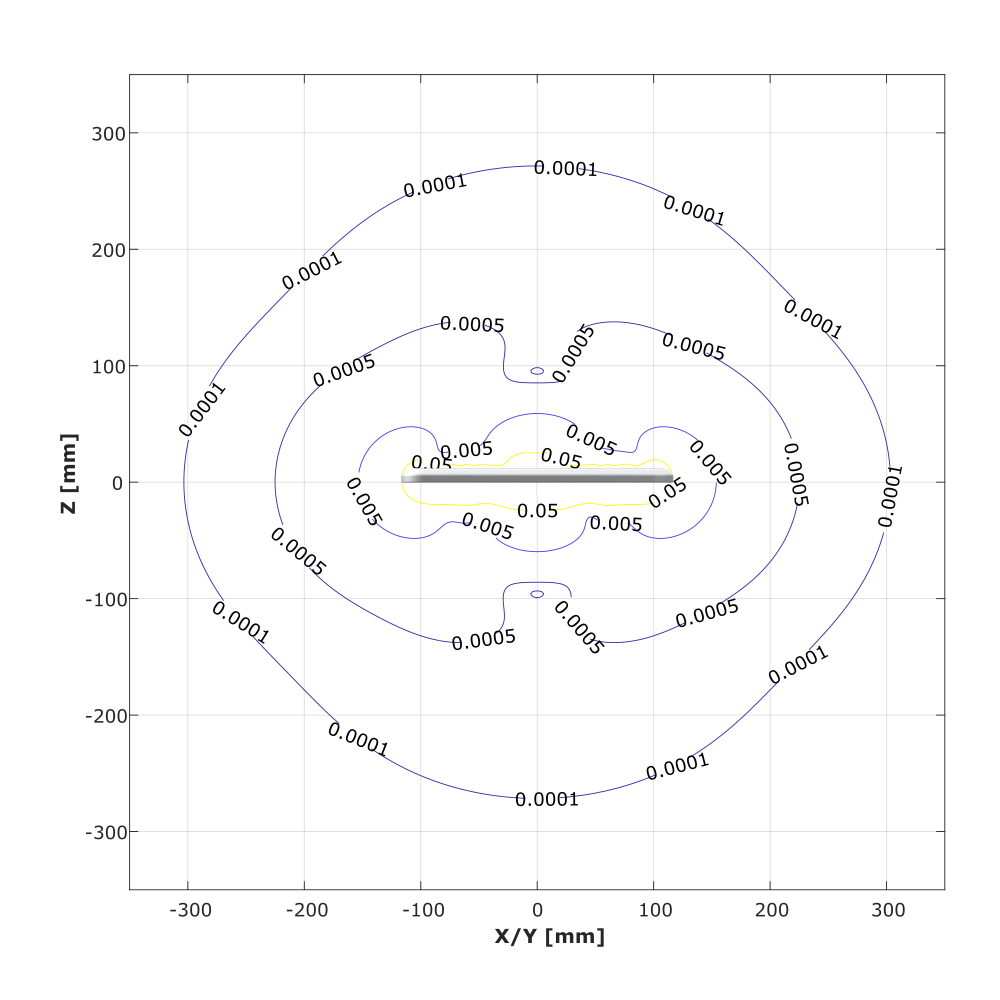

M4-13-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-16-SD00-11

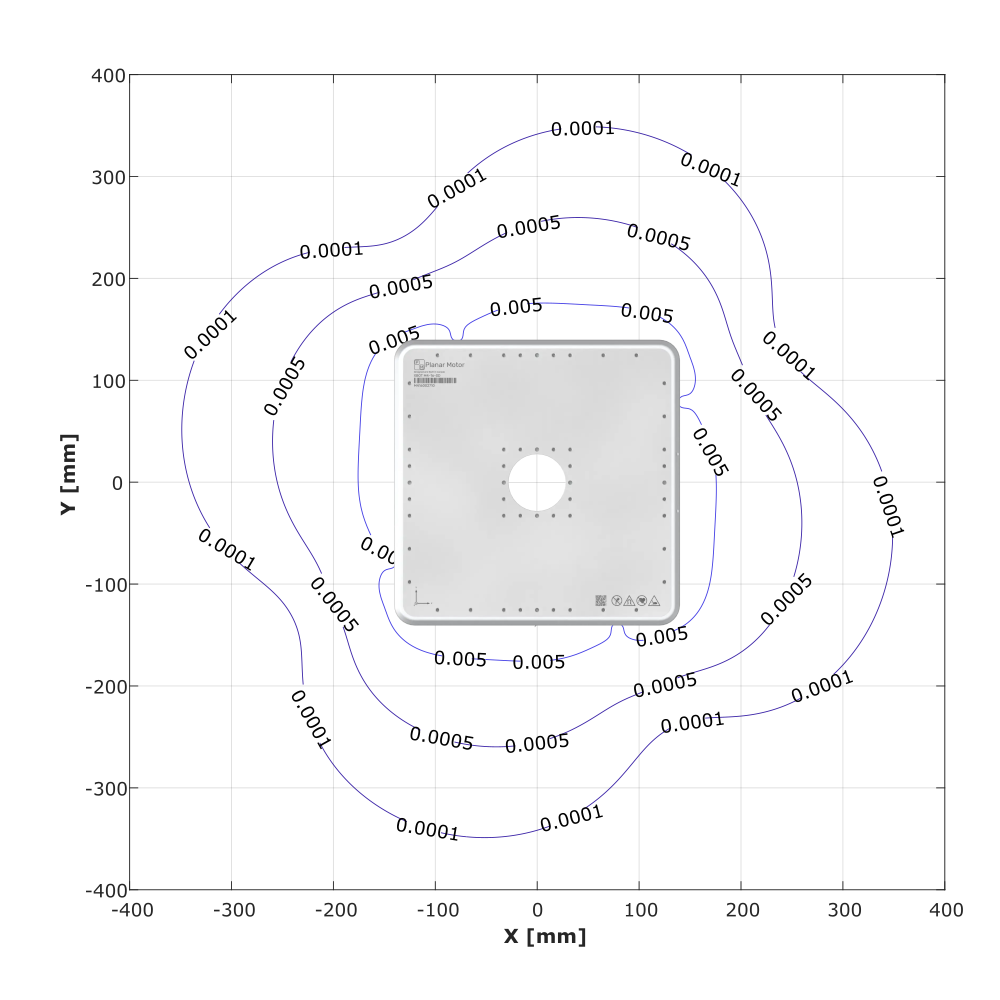

M4-16-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm

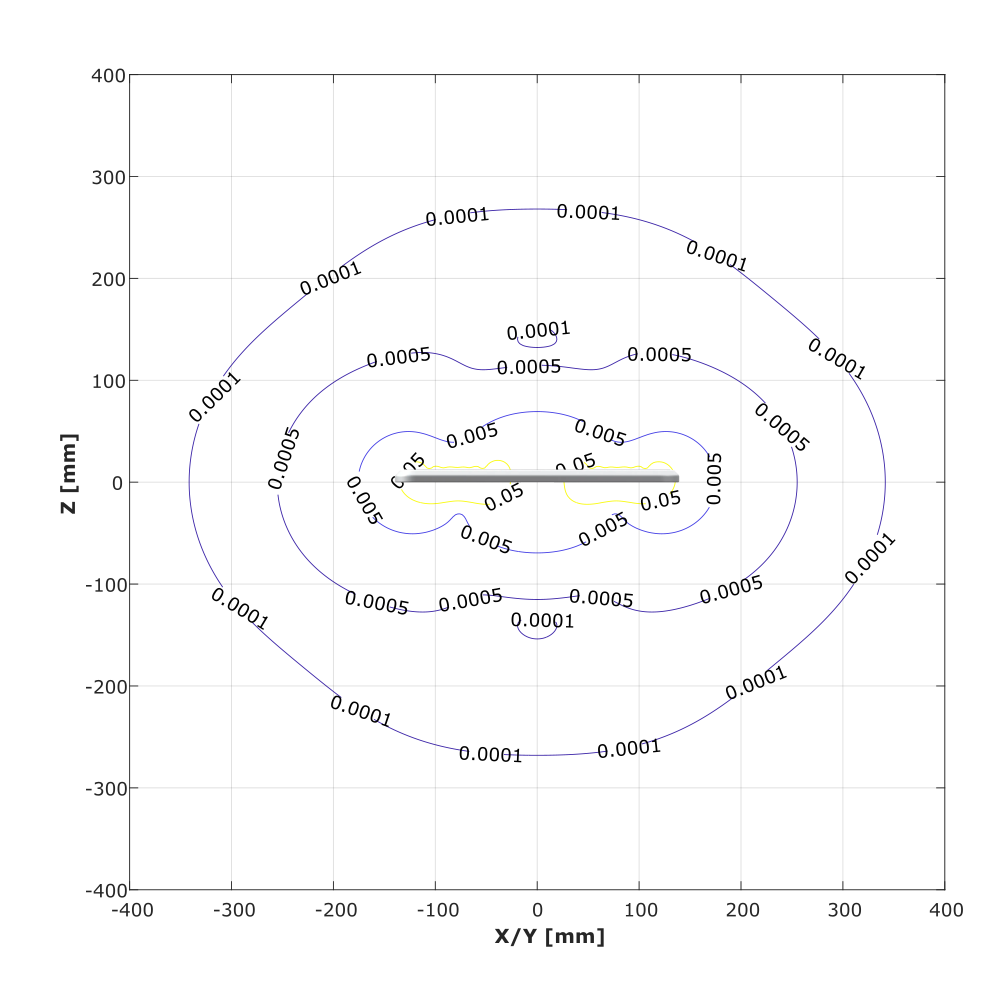

M4-16-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-18-SD00-11

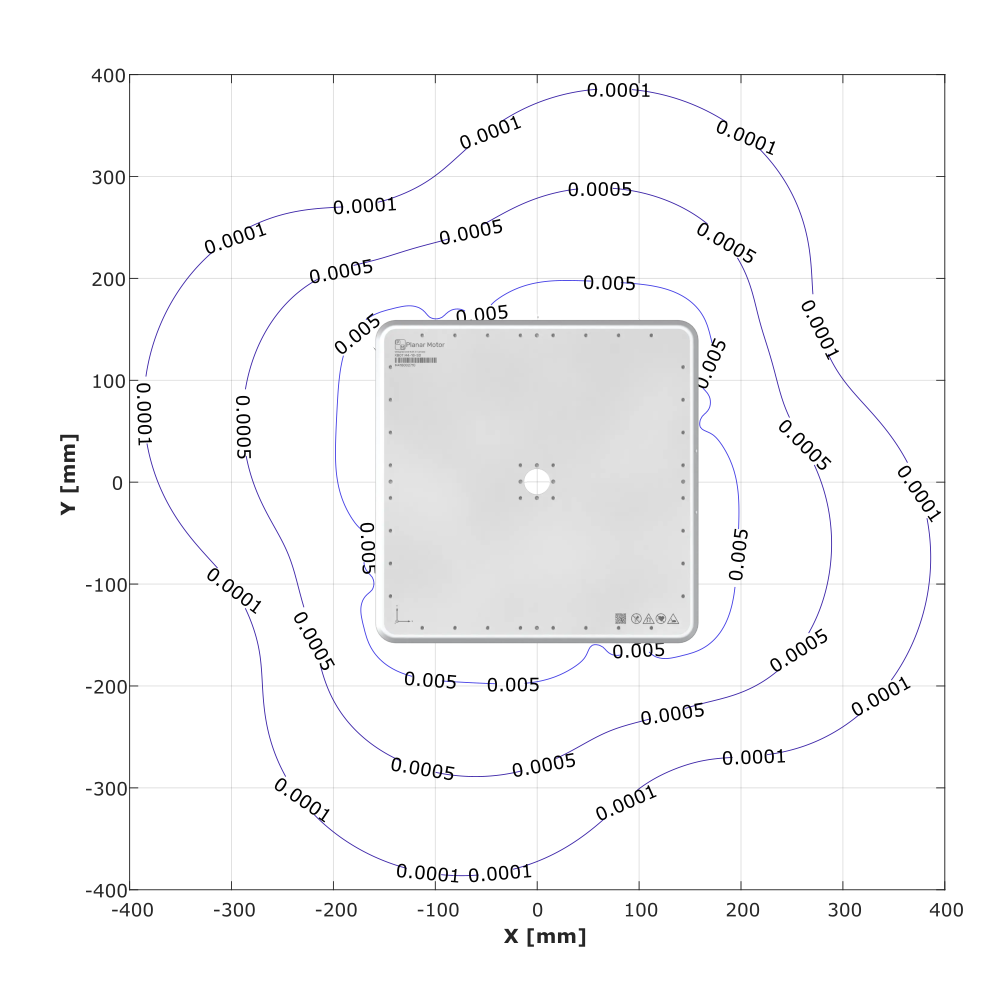

M4-18-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm

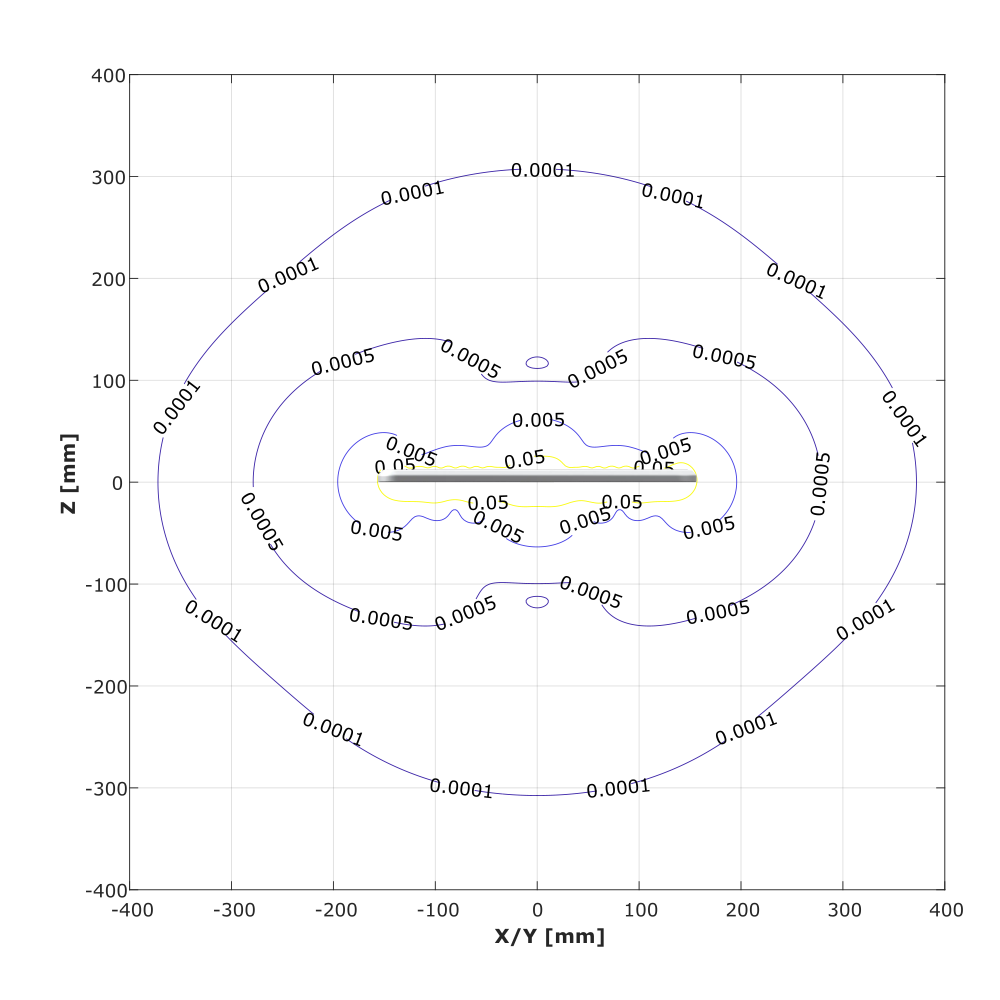

M4-18-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-20-SD00-11

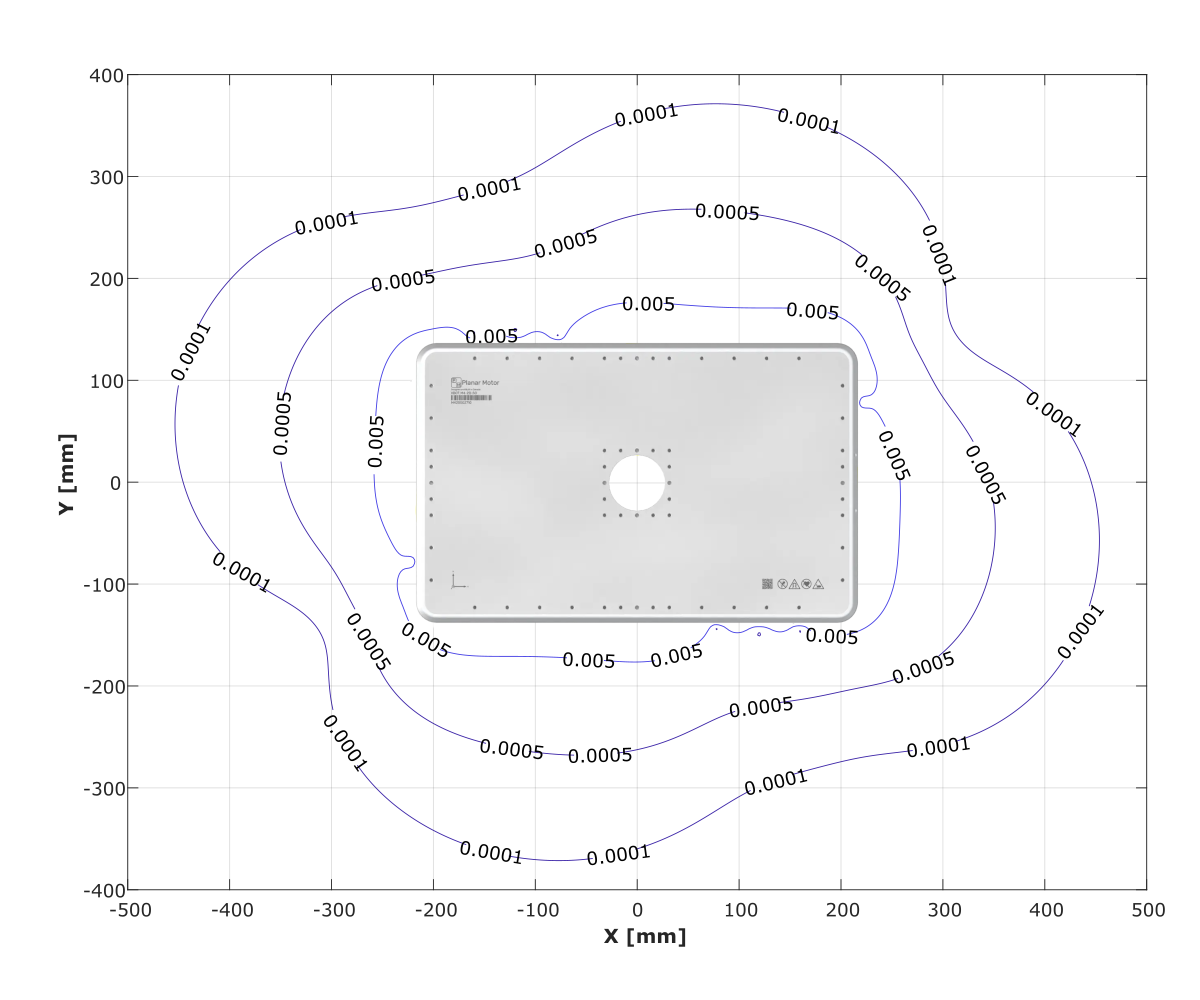

M4-20-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm

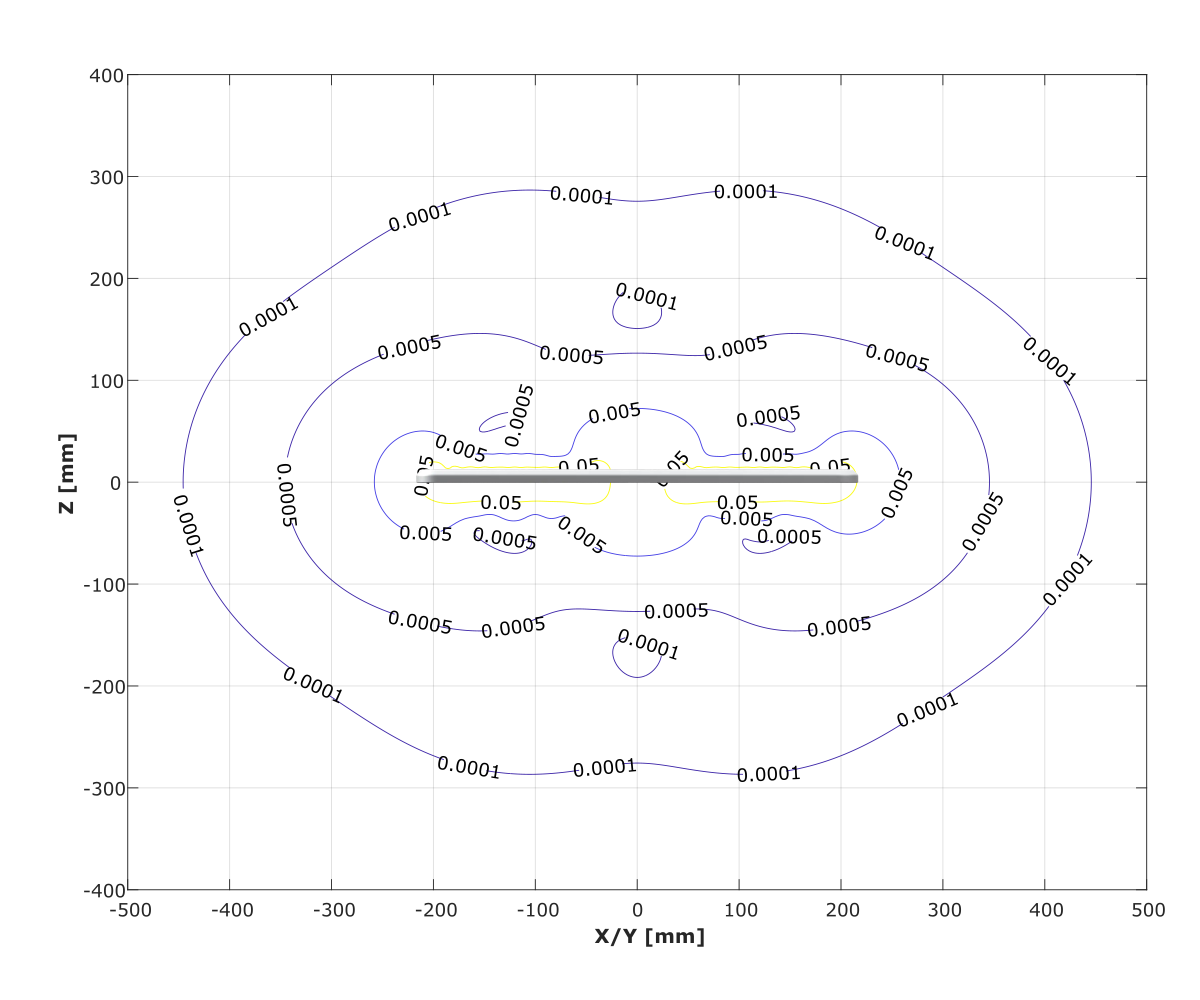

M4-20-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-22-SD00-11

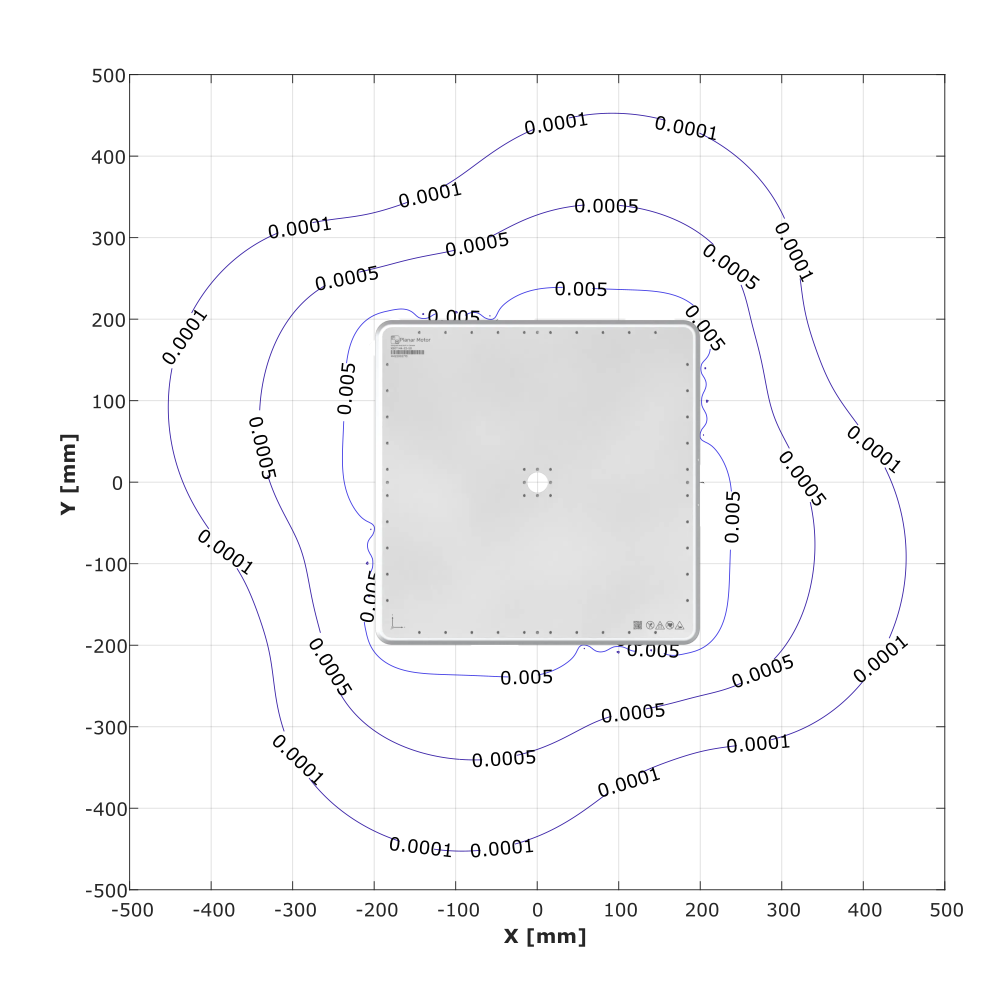

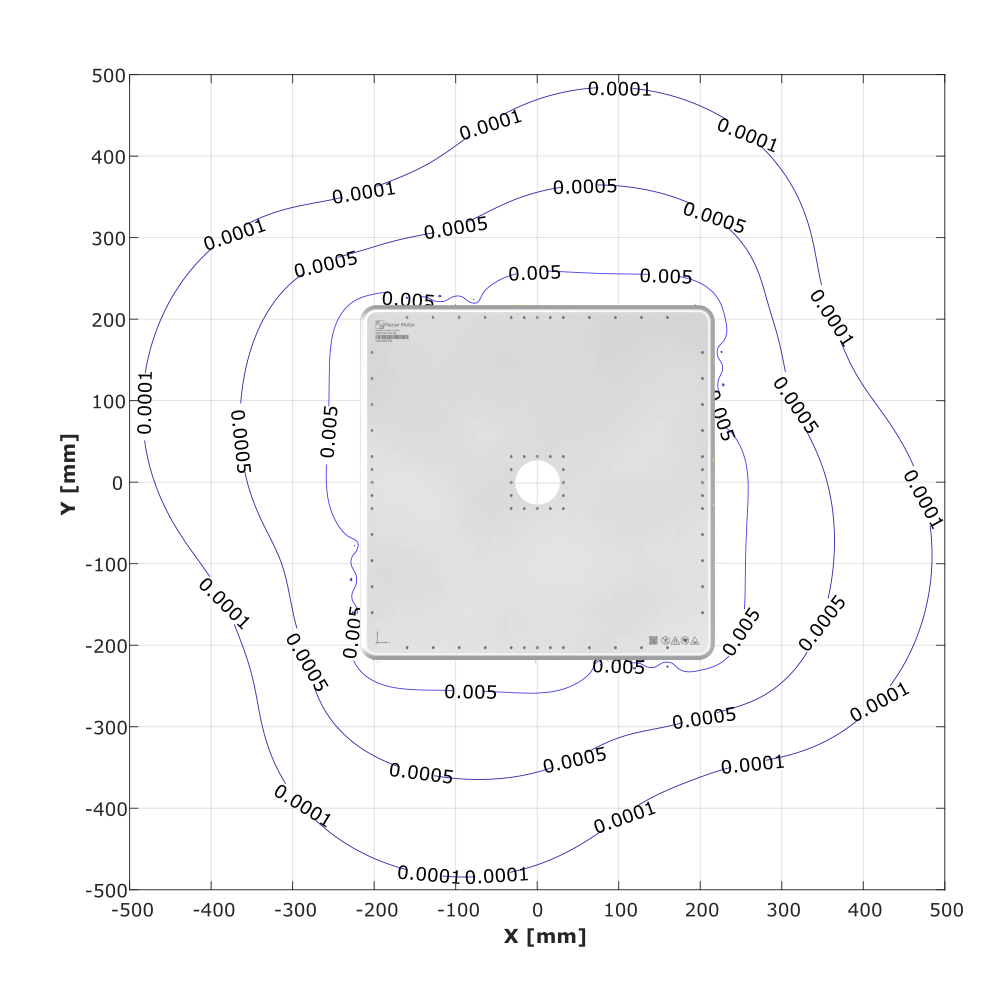

M4-22-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm

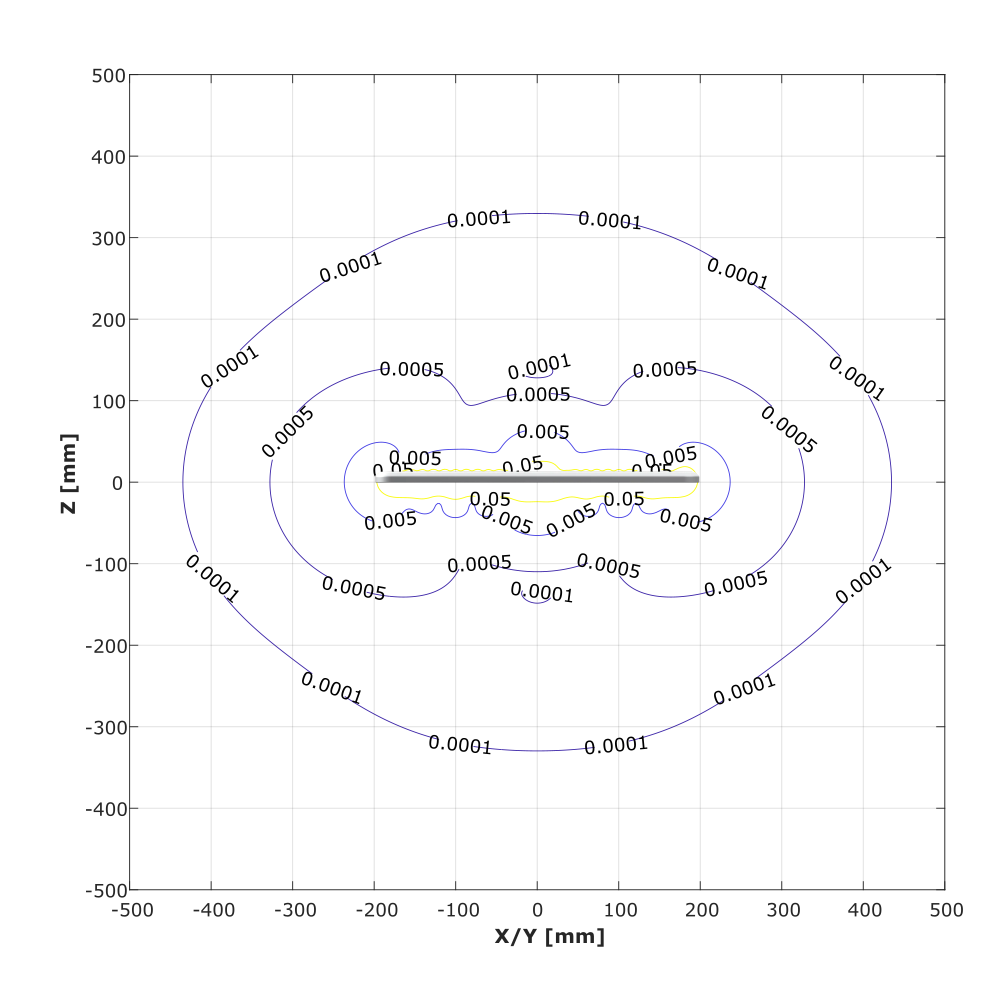

M4-22-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-24-SD00-11
M4-24-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm

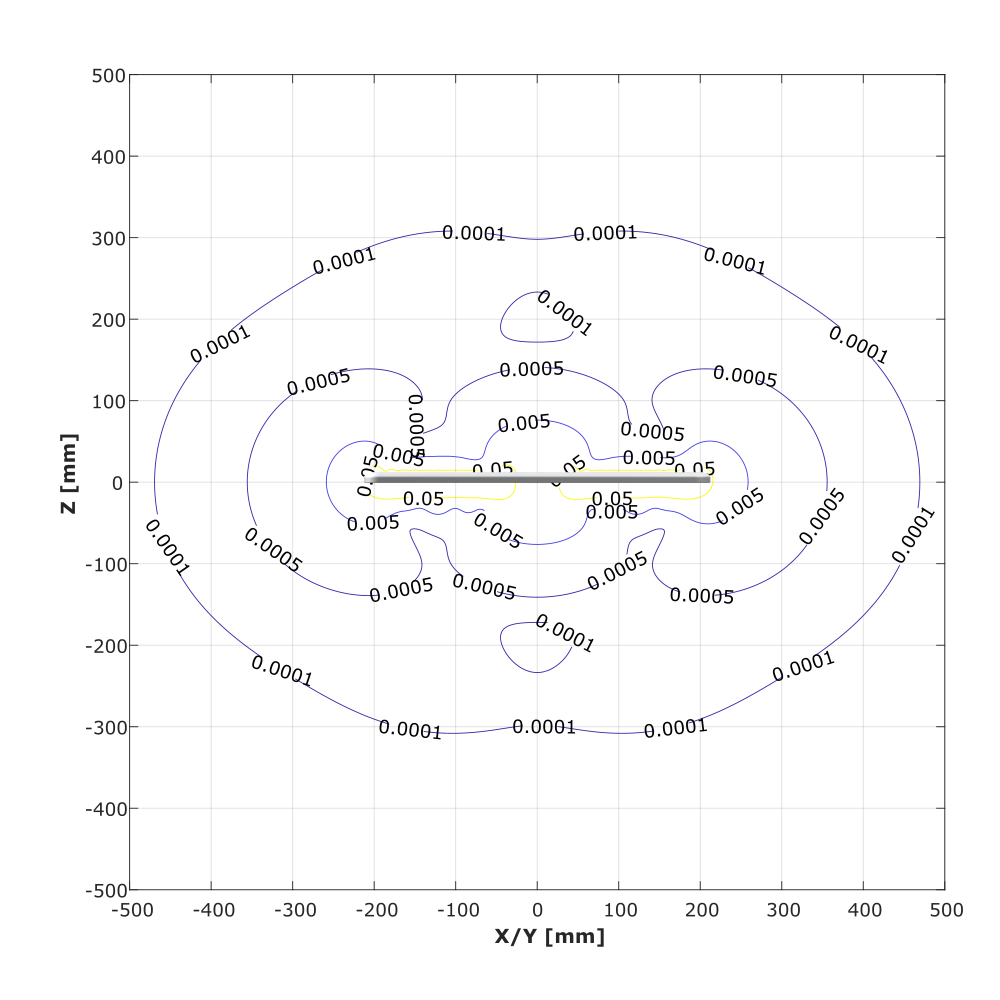

M4-24-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
M4-33-SD00-11

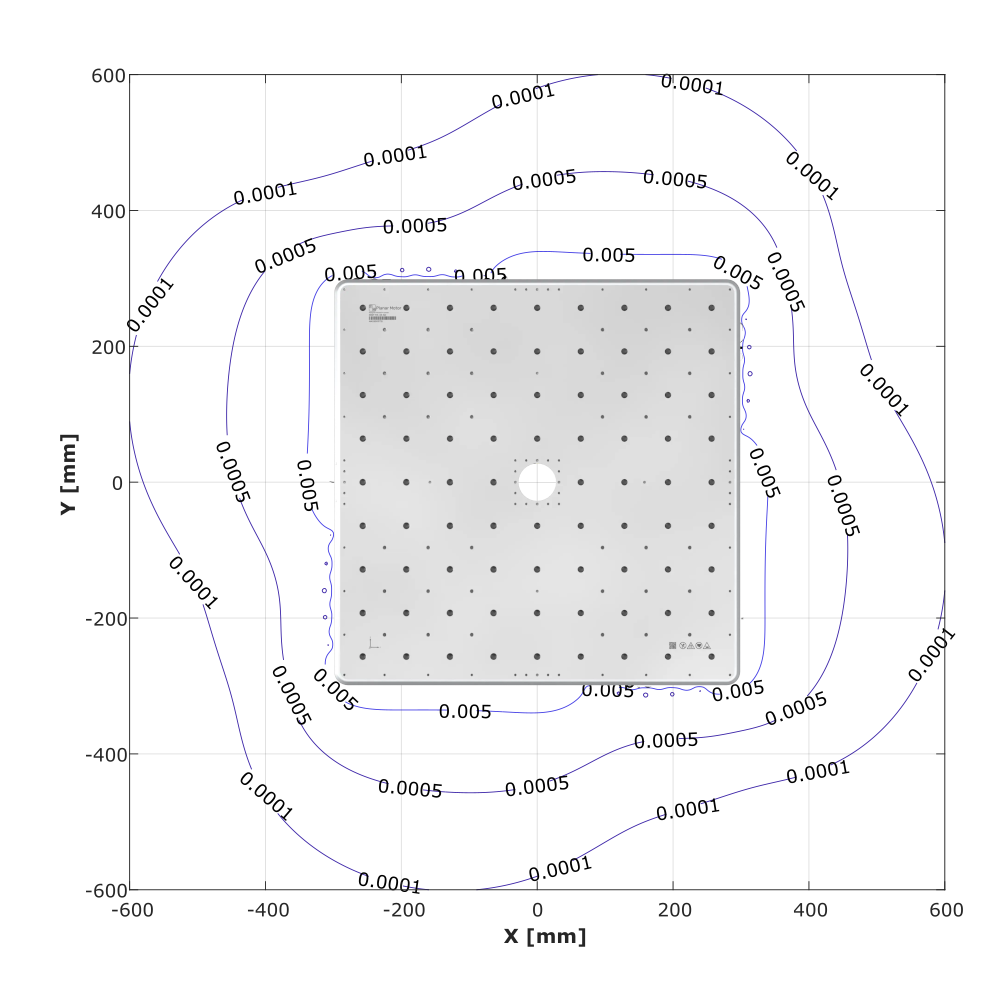

M4-33-SD00-11 magnetic field [Tesla] at bottom surface Z = 0 mm
M4-33-SD00-11 magnetic field [Tesla] at vertical central plane Y = 0 mm
