General Information |
||
|
Model number |
C-XXX*-6.2 |
|
|
Cooling |
Fanless |
|
|
Status indicators |
PMNet, CPU function, Ethernet, Fieldbus |
|
|
Diagnostics |
||
|
PMNet |
Yes, using status LED (CPU status LED will blink green if unable to detect Flyway connection) |
|
|
CPU function |
Yes, using status LED |
|
|
Ethernet |
Yes, using status LED |
|
|
Fieldbus |
Yes, using status LED |
|
|
Power consumption |
7 W |
|
|
Maximum number of supported flyways |
200 |
|
|
Mechanical CAD data |
||
|

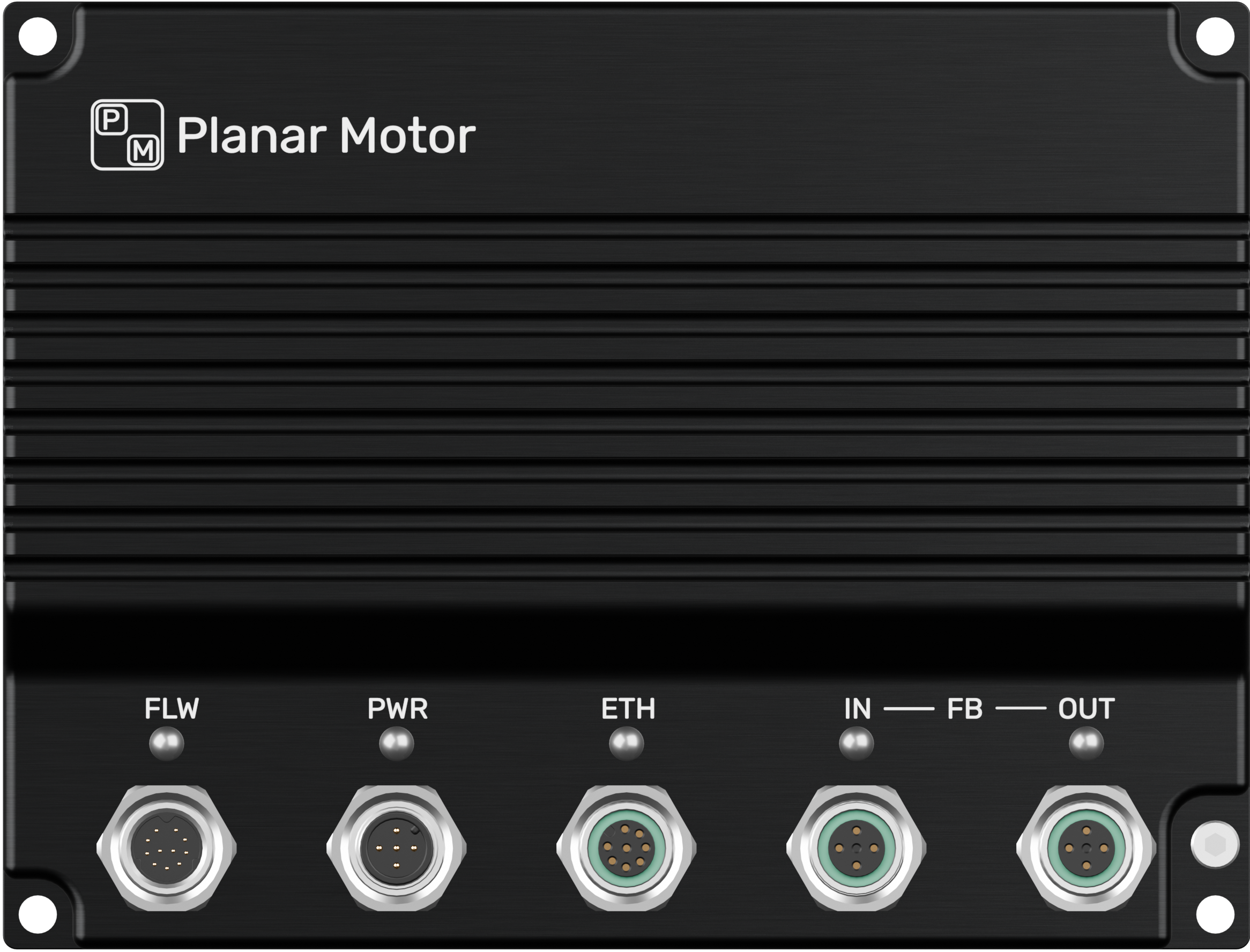

Interface 1 |
||
|
Label |
FLW |
|
|
Signal |
PMNet (Planar Motor Network) |
|
|
PMNet |
Connection to master Flyway |
|
|
Connector Type |
M12, 12-Pin Male, push lock |
|
|
Line Length |
Max. 10 m |
|
|
Power Port |
||
|
Label |
PWR |
|
|
Input Voltage |
18~36 VDC; 24 VDC (typical)** |
|
|
Input Current |
Min. 0.67 A @ 18 VDC, Min. 0.50 A @ 24 VDC, Min. 0.33 A @ 36 VDC |
|
|
Interface 2 |
||
|
Label |
ETH |
|
|
Signal |
Ethernet |
|
|
Connector Type |
M12, 8-Pin Female, A coded with internal thread |
|
|
Line Length |
Max. 20 m |
|
|
Transfer Rate |
Up to 1 Gbps |
|
|
Transfer |
||
|
Physical layer |
Ethernet (Gigabit) |
|
|
Half-duplex |
Yes |
|
|
Full-duplex |
Yes |
|
|
Auto negotiation |
Yes, Auto select speed from 10 Mbps to 1 Gbps |
|
|
Auto-MDI / MDIX |
Yes, Auto select either connection to another computer or connection to router |
|
|
Interface 3 & 4 |
||
|
Label |
IN |
OUT |
|
Signal |
Fieldbus In |
Fieldbus Out |
|
Fieldbus Options |
EtherCAT, EtherNet/IP, POWERLINK, Profinet IRT, CC-Link IE Field, CC-Link IE TSN or no fieldbus installed. |
|
|
Connector Type |
M12, 4-Pin Female, D-coded with internal thread for EtherCAT, EtherNet/IP, POWERLINK, Profinet IRT |
|
|
M12, 8-pin Female, X-coded with internal thread for CC-Link IE Field, CC-Link IE TSN. |
||
|
Line length |
Max. 20 m |
|
|
Transfer |
||
|
Physical layer |
Ethernet (100 Mbps) for EtherCAT, EtherNet/IP, POWERLINK, Profinet IRT |
|
|
Ethernet (1 Gbps) for CC-Link IE Field, CC-Link IE TSN |
||
|
Half-duplex |
Yes |
|
|
Full-duplex |
Yes |
|
|
Auto negotiation |
Transfer speed is fixed. |
|
|
Auto-MDI / MDIX |
Yes |
|
|
Min. Cycle Time |
1 ms |
|
|
Operating Conditions |
||
|
Temperature |
||
|
Operation |
5 °C to 40 °C |
|
|
Storage |
-25 °C to 55 °C |
|
|
Transport |
-25 °C to 70 °C |
|
|
Relative Humidity |
||
|
Operation |
5% to 85%, non-condensing |
|
|
Storage |
5% to 95% |
|
|
Transport |
95% at 40 °C |
|
|
Protection Class |
IP65/IP67*** |
|
|
Mechanical Properties |
||
|
Dimensions |
||
|
Width |
179 mm |
|
|
Height |
36.1 mm |
|
|
Depth |
136 mm |
|
|
Weight |
1.0 kg |
|
* XXX denotes fieldbus options: ECT for EtherCAT, EIP for EtherNet/IP, ETH for Ethernet only, PLK for POWERLINK, PRN for Profinet IRT, CLF for CC-Link IE Field, and CLT for CC-Link IE TSN.
** Please connect the PMC to a certified Class 2 or LPS power supply. This ensures the installation stays within safety limits.
*** To maintain the IP65/IP67 ingress protection rating, all ports must be sealed. Ethernet and fieldbus ports are shipped with protective caps pre-installed; these must remain securely in place or restored if the port is not in use. For active connections, use only the supplied power and signal cables. For use in applications in adverse environments where moisture or pollution is present, please contact PMI for more details.
