General Data |
|
|
Model No |
M3-25-SD00-11 |
|
Description |

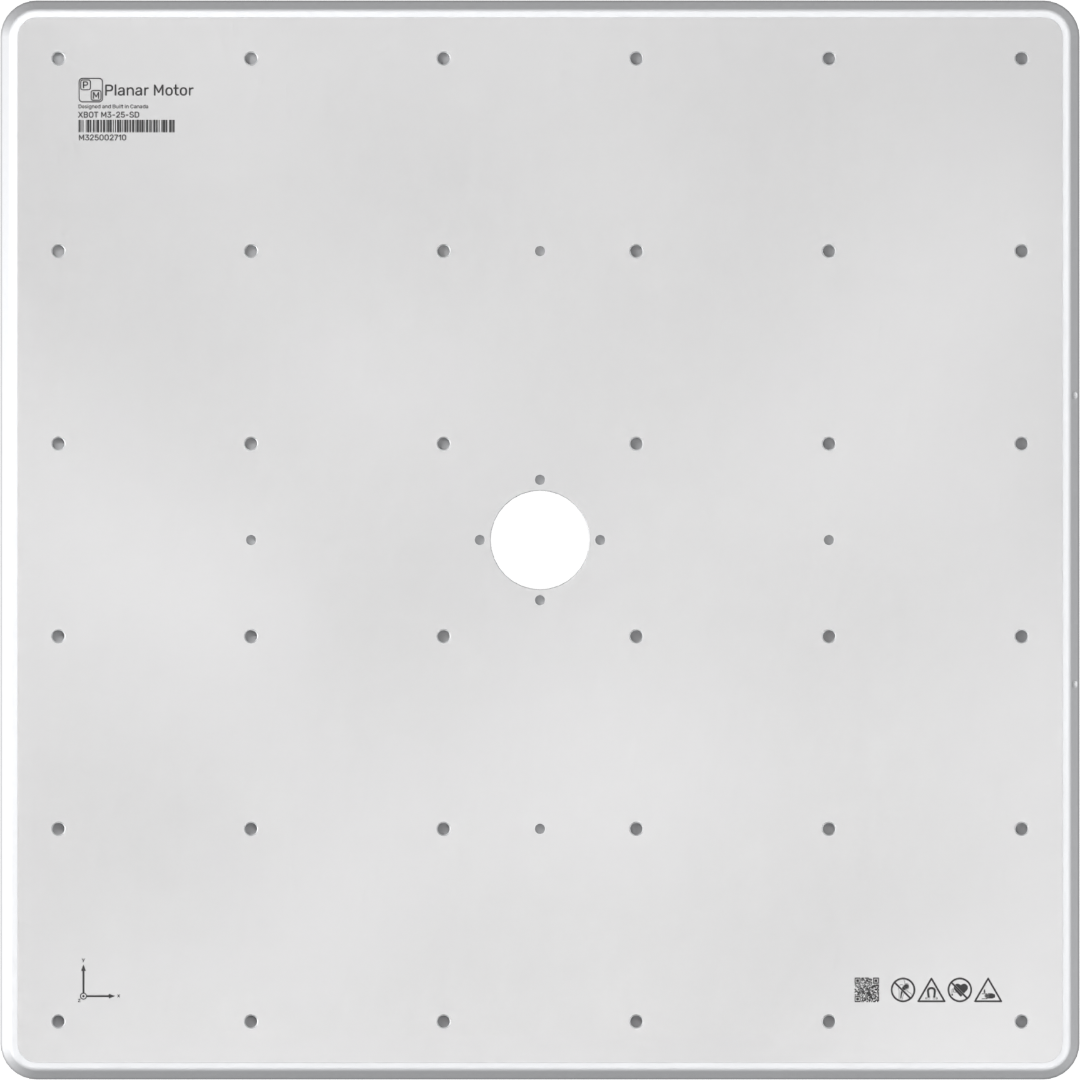

XBot (Mover) 1 micron repeatability typ. Absolute traceability |
|
Dimensions |
450 x 450 x 16 mm |
|
Payload |
20.0 kg |
|
Absolute ID |
Integrated |
|
Mechanical CAD data |
|
|
XBot Conditions |
|
|
Temperature |
|
|
Operating |
5°C to 70°C |
|
Relative Humidity |
|
|
Operating |
5% to 85%, non-condensing |
|
Ambient Conditions |
|
|
Temperature |
|
|
Storage / Transport |
-25°C to 70°C |
|
Relative Humidity |
|
|
Storage |
5% to 85% |
|
Transport |
95% at 40°C |
|
Mechanical properties |
|
|
Dimensions |
|
|
Length |
448 mm |
|
Width |
448 mm |
|
Height |
15.85 mm |
|
Weight |
12.45 kg |
|
Frame Material |
Anodized aluminum |
|
Bottom Cover Material |
Polycarbonate |
|
Bumper Material |
Anodized aluminum |
|
Payload Mounting Holes |
36 x M6x1.0* |
|
Payload Locating Holes |
8 x Ø4 mm dowel holes* |
|
Max. Torque on Threads |
8 Nm (6 mm minimum engagement) |
* Do not use magnetic screws / dowels on these holes as it may hinder performance.
