Host PC to PMC Connection

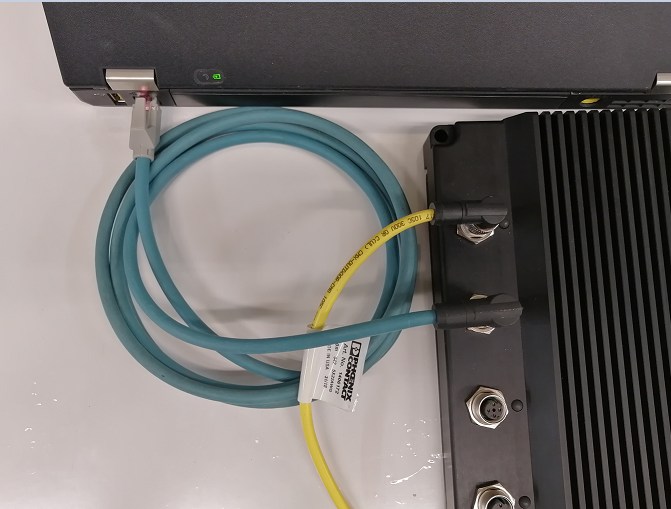

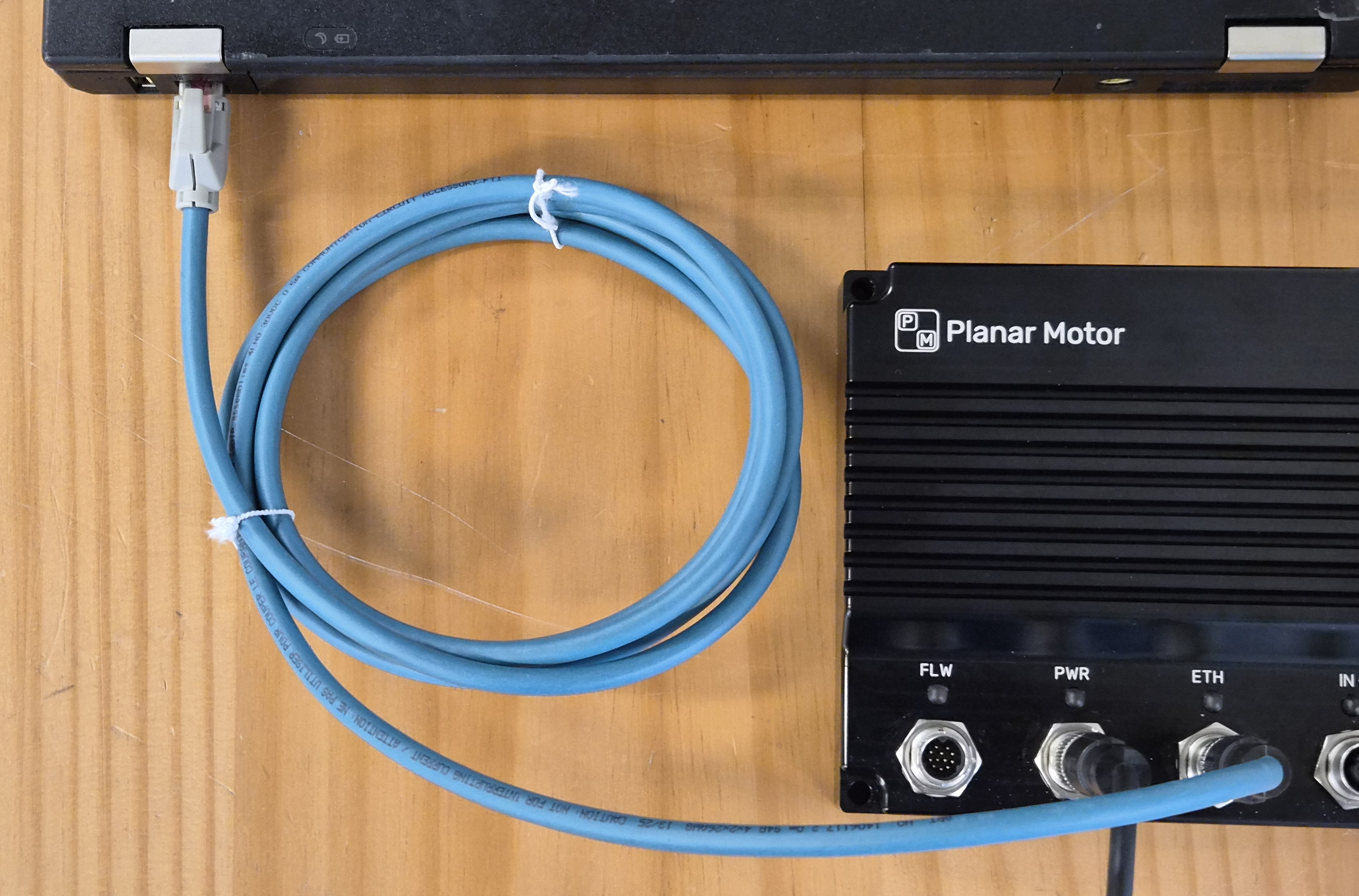

Connect the PMC to the host PC using the M12-8-pin to RJ45 cable, as shown in the picture below.
At this step,
Make sure the power supplies for Flyways and the PMC are off.
Check the wiring for the PMC and Flyways according to Electrical Setup.
Connect the PMC to the host PC using the M12-RJ45 cable
Turn on the power to the Flyways and PMC.
Wait until the PMC Status LED turns solid green or flashing green, this may take up to 2 minutes.

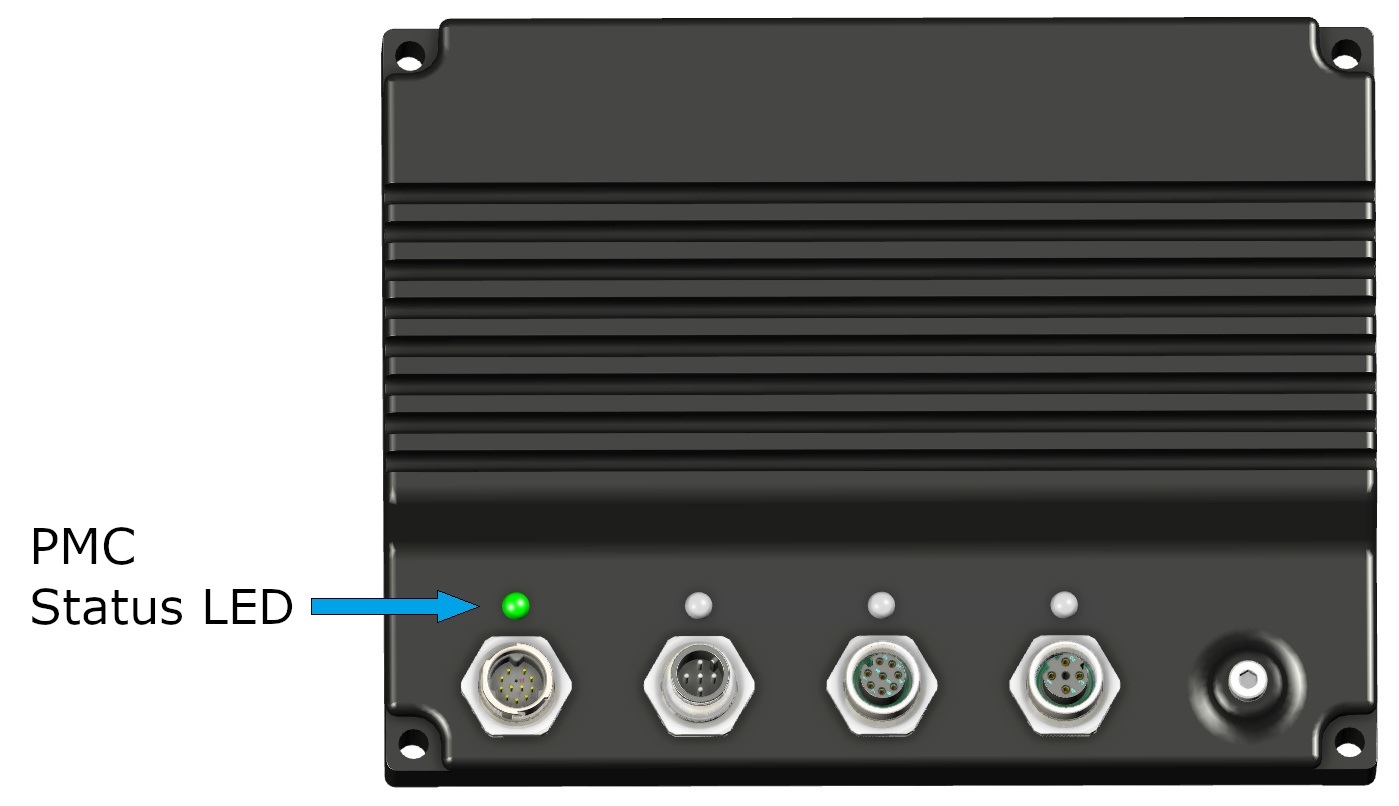

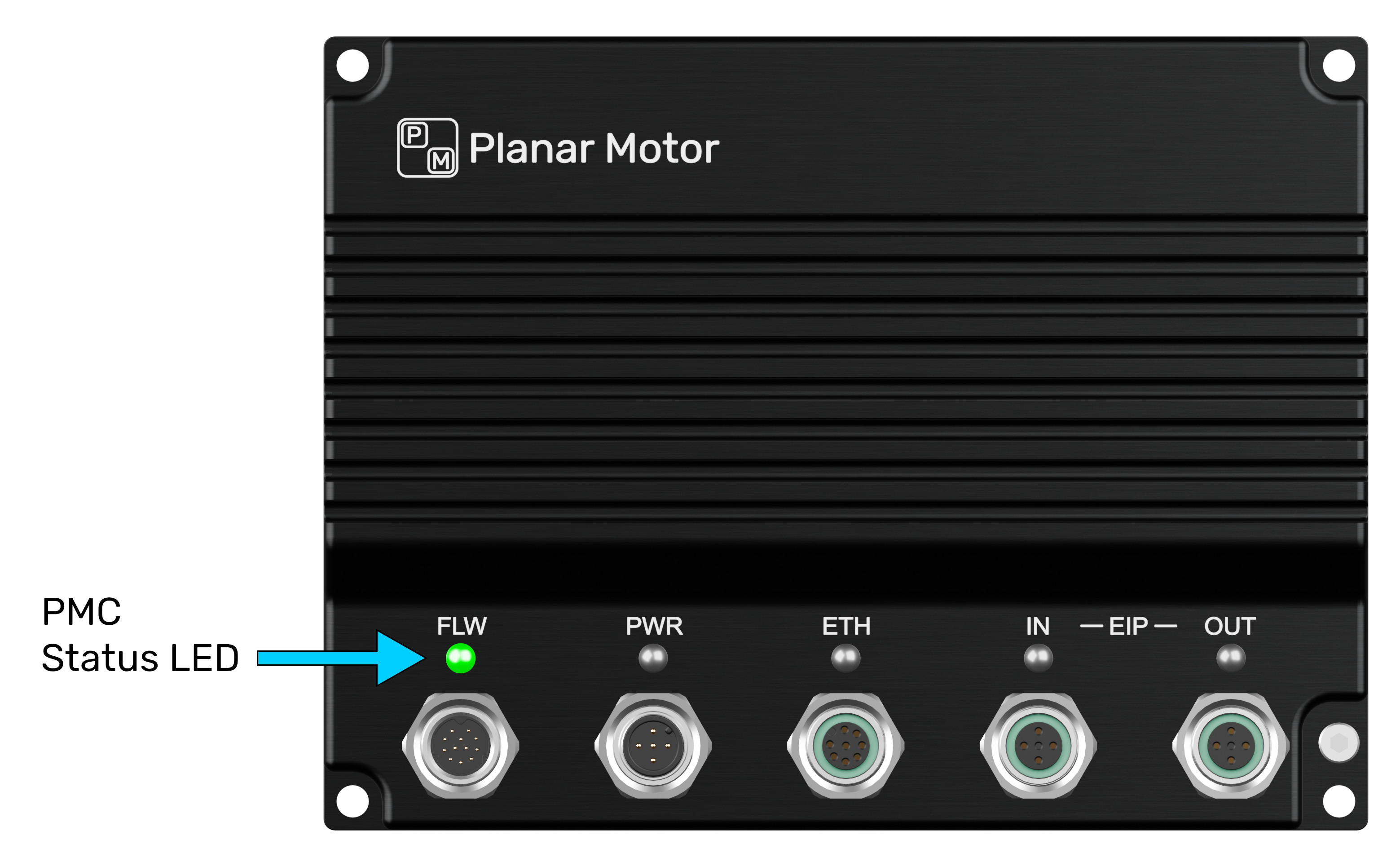

The PMC Status LED is located next to the PMNet port. The LED colour and meaning are listed in the table below.
PMC Status LED Colour | Description |
|---|---|
| PMC is booting up |
| PMC is searching for configured Flyways |
| PMC is operating normally |
| PMC detected an error in the system |
