Technical Details
|
General Data |
|
|
Cable Name |
PMC Power Cable |
|
Model Number |
CC-XXX-PWR XXX is 3-digit number code representing cable length with 050 for 5m, 100 for 10m, 200 for 20m. |
|
Short Description |
PMC power cable, PMC to Power supply, M12-5 |
|
Long Description |
PMC power cable, PMC to Power supply connection, 1 x 5-pin female M12 connector, optional lengths of 5m, 10m, 20m |
|
Used for |
Connection between PMC and power supply |
|
Dimensions |
|
|
Cable Cross Section |
0.34 mm² |
|
Length of Cable |
5m, 10m, 20m |
|
Cable Diameter |
Approx. 5 mm |
|
Cable Weight |
300 g for 5m cable, 550g for 10m cable, 1.05kg for 20m cable |
|
Ambient Conditions |
|
|
Degree of Protection |
IP67 (M12 connector) |
|
Ambient Temperature (operation) |
-10°C to 80°C fixed |
|
Ambient Temperature (operation) |
-5°C to 80°C flexible |
|
Electrical |
|
|
Rated current |
4 A |
|
Rated voltage |
60 V |
|
Number of positions |
4 |
|
Contact material |
Copper Alloy, Gold Flash Plating |
|
Insulation Resistance |
100MΩ Min. |
|
Protection |
Shielded |
|

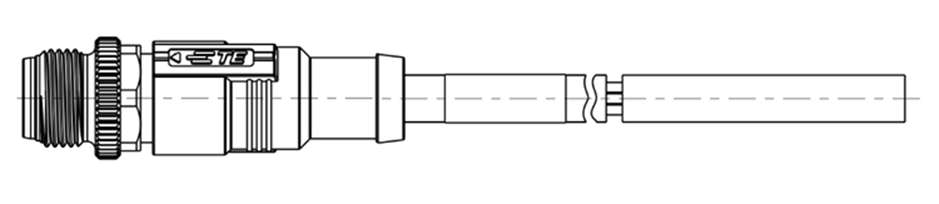

Characteristics Head |
|
|
Head type |
Female plug straight M12 / IP67 |
|
Coding |
A coded |
|
Standards and Regulations |
|
|
Standards/specifications |
UL758, UL1581, UL2464 |
|
Cable |
|
|
Cable type |
Shielded power cable |
|
Cable cross section |
5 x 0.34 mm² |
|
Outer jacket material |
PVC |
|
Outer jacket colour |
Black |
|
Wire colours |
Brown-brown, White-white, Blue-blue
|
|
Features |
Flame Retardant, RoHS |

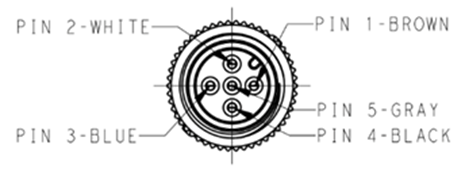

Schematic Diagram
|

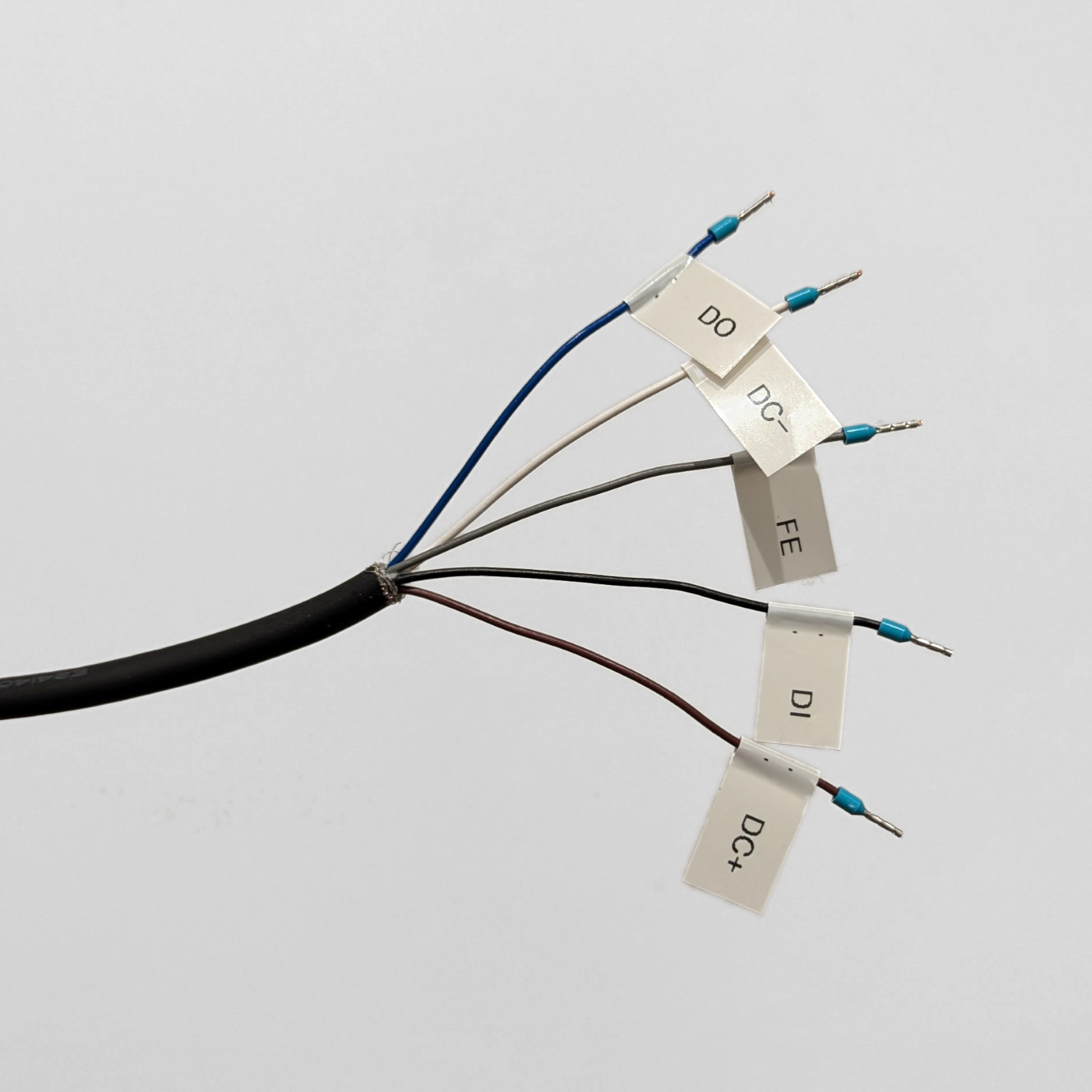

5-pin CC-050/100-PWR |
Pin |
Colour |
Label |
Function |
Cable Cross Section |
|
|
1 |
Brown |
DC+ |
Power Supply. 18~58 VDC relative to Power Supply Return |
AWG 18, 0.823mm2 |
|
2 |
White |
DC - |
Power Supply Return |
AWG 18, 0.823mm2 |
|
|
3 |
Blue |
DO |
Digital Output from PMC |
AWG 18, 0.823mm2 |
|
|
4 |
Black |
DI |
Digital Input to PMC. 11~30 VDC for “1”; -3 ~5 VDC for “0” |
AWG 18, 0.823mm2 |
|
|
5 |
Grey |
FE |
Field Earth |
AWG 18, 0.823mm2 |
