This command is used to read the status of a specific zone.

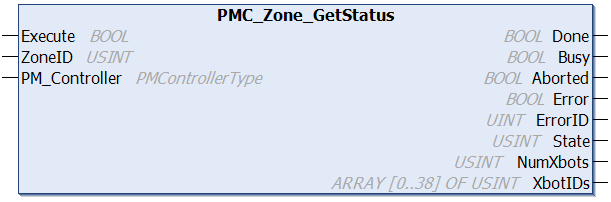

Fieldbus Interface
PMC_Zone_GetStatus
Inputs
Name | Data Type | Description |
|---|
Execute | BOOL | Execution of the function block begins on a rising edge of this input. |
ZoneID | USINT | Zone ID, same as Flyway ID by default, you may define your own Zones as well using Define Zone |
PM_Controller | PMControllerType | Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
Name | Data Type | Description |
|---|
Done | BOOL | Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE) |
Busy | BOOL | Function block is active and must continue to be called. |
Aborted | BOOL | Command aborted by another command. |
Error | BOOL | If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
ErrorID | UINT | 0x0: All OK. Otherwise, please see PMC Reply Codes. |

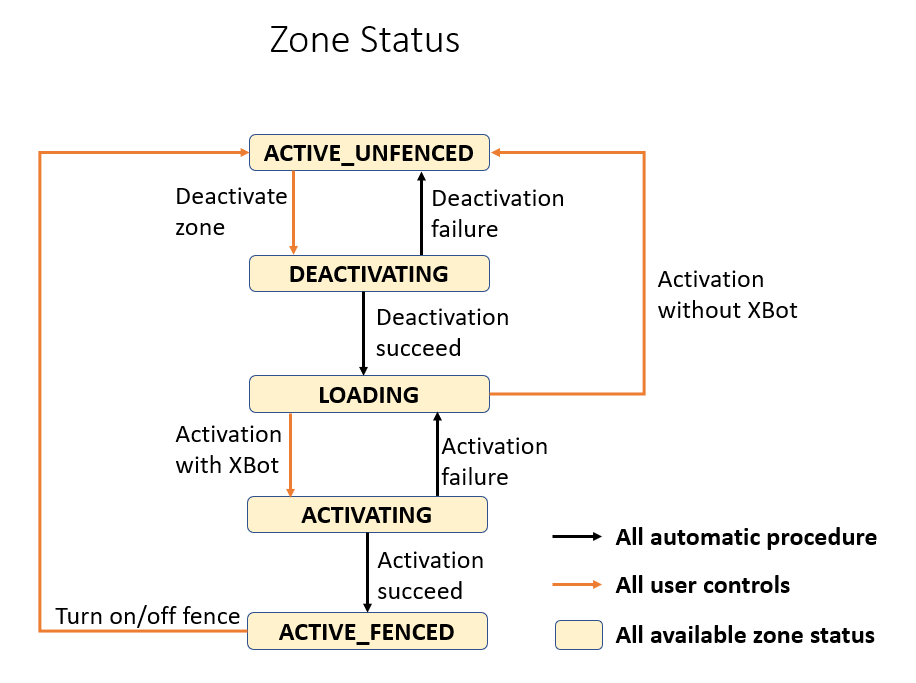

State | USINT | Zone state: 0 = N/A, 1 = ACTIVE_UNFENCED, 2 = DEACTIVATING, 3 = LOADING, 4 = ACTIVATING, 5 = ACTIVE_FENCED, 6 = ERROR |
NumXbots | USINT | Number of XBots in the zone |
XbotIDs | USINT[0..38] | Array of size 38, IDs of XBots in the zone |
Conditions
Operating Conditions |
|---|
Preconditions | None |
Postconditions | Zone status returned |
Description
This command is used to read the status of a specific zone.
