Configure Digital Output for Zone

Configure a digital output from the PMC to turn on/off based on the number of movers in a Zone. See also Read Digital Output from PMC

State based - The digital output will be switched on once the specified number of movers is inside the zone and on the boundary of the zone, and off when the number of movers in/on the boundary of the zone is less than the amount specified
Event based - On when the number of movers increases to meet the threshold, or on when the number of movers falls below the threshold. It can be turned off using a Digital Input, see Configure Digital Input To Reset DO

Fieldbus Interface

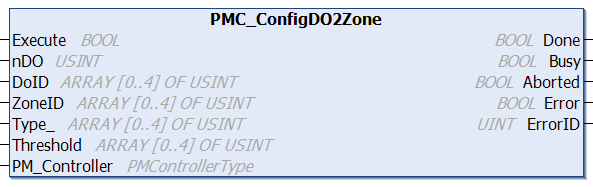

PMC_ConfigDO2Zone

Inputs

Name	Data Type	Description
Execute	BOOL	Execution of the function block begins on a rising edge of this input.
nDO	USINT	Number of digital inputs to configure, up to 5
DoID	USINT[0..4]	Digital Output ID, valid range [1,128]
ZoneID	USINT[0..4]	IDs of the Zone to monitor. (Defined with Define Zone)
Type_	USINT[0..4]	Event based: 0: Rising to meet the threshold; 1: Falling below the threshold State based: 2: On when number of movers inside and on the boundary of the zone meets or exceeds the threshold, off the number of movers inside and on the boundary of the zone is below the threshold
Threshold	USINT[0..4]	The number of movers inside and on the boundary of the zone, for the output to trigger
PM_Controller	PMControllerType	Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC.

Outputs

Name	Data Type	Description
Done	BOOL	Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE)
Busy	BOOL	Function block is active and must continue to be called.
Aborted	BOOL	Command aborted by another command.
Error	BOOL	If there is an error in processing the command, then Error = TRUE, otherwise, FALSE.
ErrorID	UINT	0x0: All OK. Otherwise, please see PMC Reply Codes.

Operating Conditions
Preconditions	None
Postconditions	Specified Digital Output from PMC is set to monitor the number of movers in the specified zone

Configure a digital output from the PMC to turn on/off based on the number of movers in a Zone. See also Read Digital Output from PMC

State based - The digital output will be switched on once the specified number of movers is inside the zone or on the boundary of the zone, and off when the number of movers in/on the boundary of the zone is less than the amount specified.
Event based - On when the number of movers meets or exceeds the threshold, or on when the number of movers falls below the threshold. It can be turned off using a Digital Input, see Configure Digital Input To Reset DO
