M4-12-SD00-11

General Data

Model No

M4-12-SD00-11

Description

XBot (Mover)

10 micron repeatability typ.

Absolute traceability

Dimensions

320 x 160 x 12 mm

Payload

4.2 kg

Absolute ID

Integrated

Mechanical CAD data

2D (PDF) / 3D (STEP)

XBot Conditions

Temperature

Operating

5°C to 70°C

Relative Humidity

Operating

5% to 85%, non-condensing

Ambient Conditions

Temperature

    Storage / Transport

-25°C to 70°C

Relative Humidity

    Storage

5% to 85%

    Transport

95% at 40°C

Mechanical properties

Dimensions

    Length

316 mm

    Width

156 mm

    Height

12.35 mm

Weight

2.8 kg

Frame Material

Anodized aluminum

Bottom Cover Material

Polycarbonate

Bumper Material

Anodized aluminum

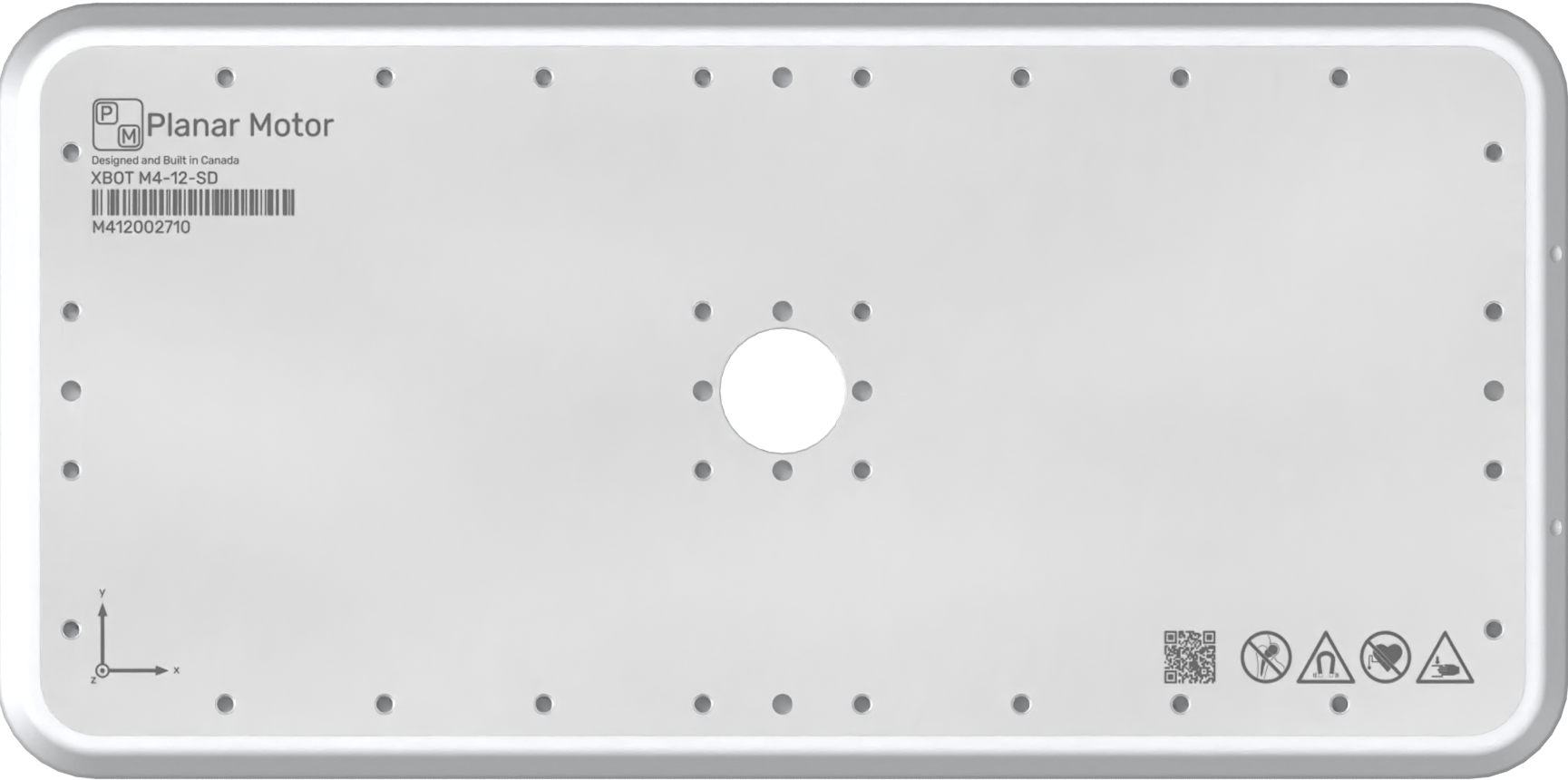

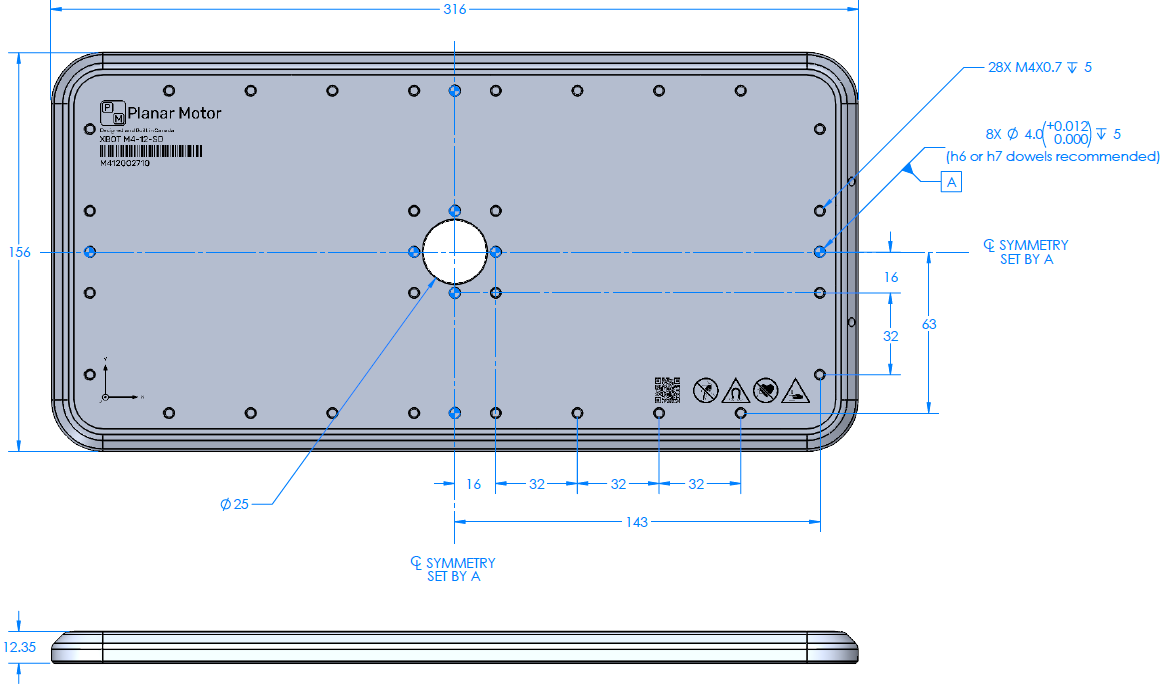

Payload Mounting Holes

28 x M4x0.7^*

Payload Locating Holes

8 x Ø4 mm dowel holes^*

Max. Torque on Threads

2.5 Nm (4 mm minimum engagement)
