General Data |
|
|
Cable Name |
2.8 m / 5.0 m / 10.0 m PMNet cable |
|
PMI Article Number |
NC-028-CS (2.8 m) NC-050-CS (5.0 m) NC-100-CS (10.0 m) |
|
Short Description |
Network cable for Planar Motor internal highspeed communication |
|
Long Description |
Network cable for Planar Motor internal highspeed data transfer 12 pin, A coded Straight plug with push to lock connection Black Housing Cable length 2.8 m / 5.0 m / 10.0 m |
|
Used for |
Connection between PMC and Flyway |
|
Certification |
E119932-I RU AWM STYLE 20276 80°C 30V VW-1 |
|
RoHS 2011/65/EU |
EN IEC 63000:201 |
|

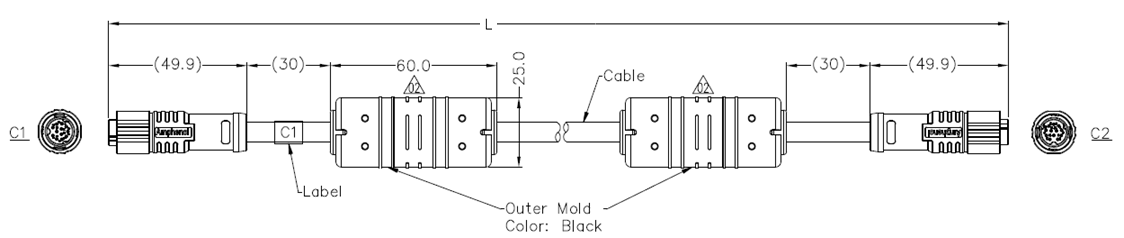

Dimensions |
|
|
Length of cable |
2.8 m (NC-050-CS) 5.0 m (NC-050-CS) 10.0 m (NC-100-CS) |
|
Cable weight |
0.4 kg (NC-028-CS) 0.7 kg (NC-050-CS) 1.1 kg (NC-100-CS) |
|
Diameter |
9.0 mm |
|
Bend Radius Single Bend |
≥8 x cable diameter |
|
Characteristics Head 1 |
|
|
Plug Type |
M12, 12 Pin Female, A coded with push lock |
|
Degree of Protection |
IP68/ IP69K |
|
Characteristics Head 2 |
|
|
Plug Type |
M12, 12 Pin Female, A coded with push lock |
|
Degree of Protection |
IP68/ IP69K |
|
Cable |
|
|
Ferrite Cores |
One at each end |
|
Outer Jacket Colour |
Black |
