Power Cable PC-006-DS


Dimensional drawing of PC-006-DS Power Cable

General Data

Cable Name

0.6 m Power Cable

Model Number

PC-006-DS

Short Description

PMI power cable Flyway to Flyway connection

Long Description

PMI power cable

Flyway to Flyway connection

Length 0.6 m

1 x 4-pin female straight hybrid connector

1 x 4-pin male straight hybrid connector

Used for

Connection between Flyways

Dimensions

Cable Cross Section

2 x 6 mm2 + 1 x (2 x 0.34 mm2)

Length of Cable

0.6 m

Diameter

10.5 mm

Bend Radius Single Bend

≥3 x cable diameter

Torsional Strength

±720°/m

Electrical Properties

Rated voltage

80 VDC (power)

60 VDC (signal)

Rated current

30 A (power)

2 A (signal)

Characteristics Head 1

Head type

4-pin male hybrid connector

Contacts

4

Mating Cycles

>500

Degree of Protection per EN 60529

IP65/67 when connected

Characteristics Head 2

Head type

4-pin female hybrid connector

Contacts

4

Mating Cycles

>500

Degree of Protection per EN 60529

IP65/67 when connected

Cable

Cable Type

Hybrid cable

Outer Jacket Material

TPU, flame-retardant, halogen-free

Outer Jacket Colour

Black

Durability

Oil Resistance

EN 60811-4040

Flame-retardant

EN 60332-1-2

Halogen-free

EN 60754

Hydrolysis Resistance

EN 50396

Microbial Resistance

EN 50396

Silicone-free / PWIS

VW PV 3.10.7

Ambient Conditions

Temperature

-20 to 80°C

Degree of Protection per EN 60529

IP65/67 when connected

Description

Note

Hybrid cable

2 x 6 mm2 + 1 x (2 x 0.34 mm2)

4-pin hybrid circular connector, female

Diameter 27.9 mm, length 74.5 mm

4-pin hybrid circular connector, male

Diameter 27.9 mm, length 74.5 mm

4-pin hybrid circular connector, male

Pin

Description

Function

Pin

4-pin hybrid circular connector, female


1

DC-

DC bus -

1


2

DC+

DC bus +

2

3

STO-

STO signal -

3

4

STO+

STO signal +

4

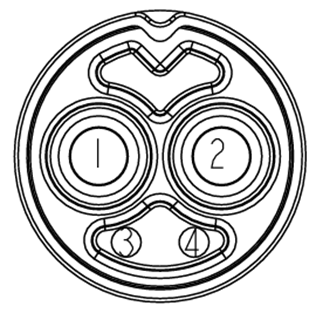

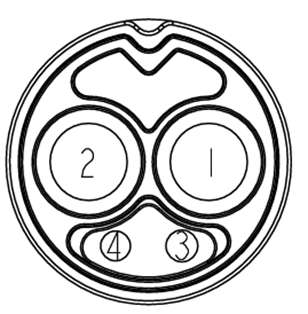

Power Cable PC-006-DS pinout

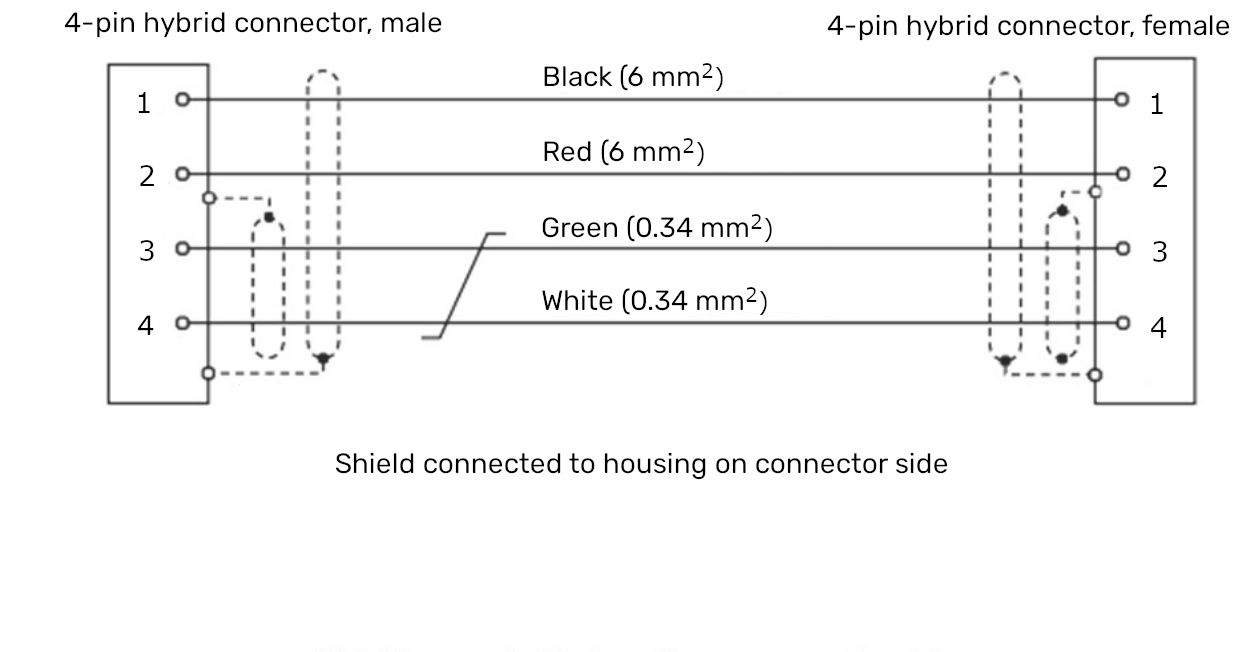

Power Cable PC-006-DS schematic
