Power Cable PC-050-SR / PC-100-SR / PC-200-SR

General Data
Cable Name	5.0 m / 10.0 m / 20.0 m Power Supply Cable
Model Number	PC-050-SR (5 m) PC-100-SR (10 m) PC-200-SR (20 m)
Short Description	PMI power cable Flyway to Flyway connection
Long Description	PMI power cable Flyway to Flyway connection Length 5.0 m / 10.0 m / 20.0 m 1 x 4-pin female right angled hybrid connector 1 x pigtail
Used for	Connection between external power supply and Flyway
Dimensions
Cable Cross Section	2 x 6 mm² + 1 x (2 x 0.34 mm²)
Length of Cable	5.0 m / 10.0 m / 20.0 m
Diameter	10.5 mm
Bend Radius Single Bend	≥3 x cable diameter
Torsional Strength	±720°/m
Electrical Properties
Rated voltage	80 VDC (power) 60 VDC (signal)
Rated current	30 A (power) 2 A (signal)
Characteristics Head 1
Head type	4-pin female hybrid connector
Contacts	4
Mating Cycles	>500
Degree of Protection per EN 60529	IP65/67 when connected
Characteristics Head 2
Head type	Pigtail
Contacts	4
Cable
Cable Type	Hybrid cable
Outer Jacket Material	TPU, flame-retardant, halogen-free
Outer Jacket Colour	Black
Durability
Oil Resistance	EN 60811-4040
Flame-retardant	EN 60332-1-2
Halogen-free	EN 60754
Hydrolysis Resistance	EN 50396
Microbial Resistance	EN 50396
Silicone-free / PWIS	VW PV 3.10.7
Ambient Conditions
Temperature	-20 to 80°C
Degree of Protection per EN 60529	IP65/67 when connected

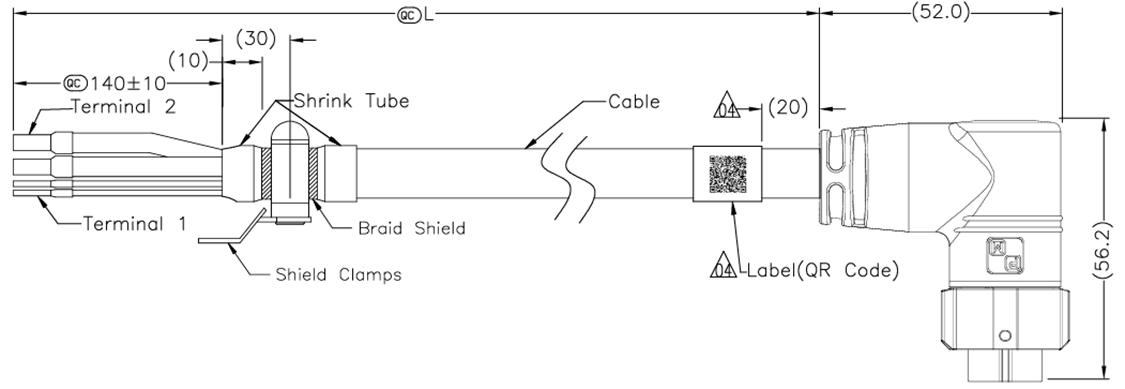

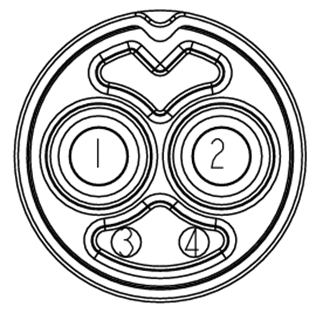

4-pin hybrid circular connector, female	Pin	Description	Function
	1	DC-	DC bus -
	2	DC+	DC bus +
	3	STO-	STO signal -
	4	STO+	STO signal +

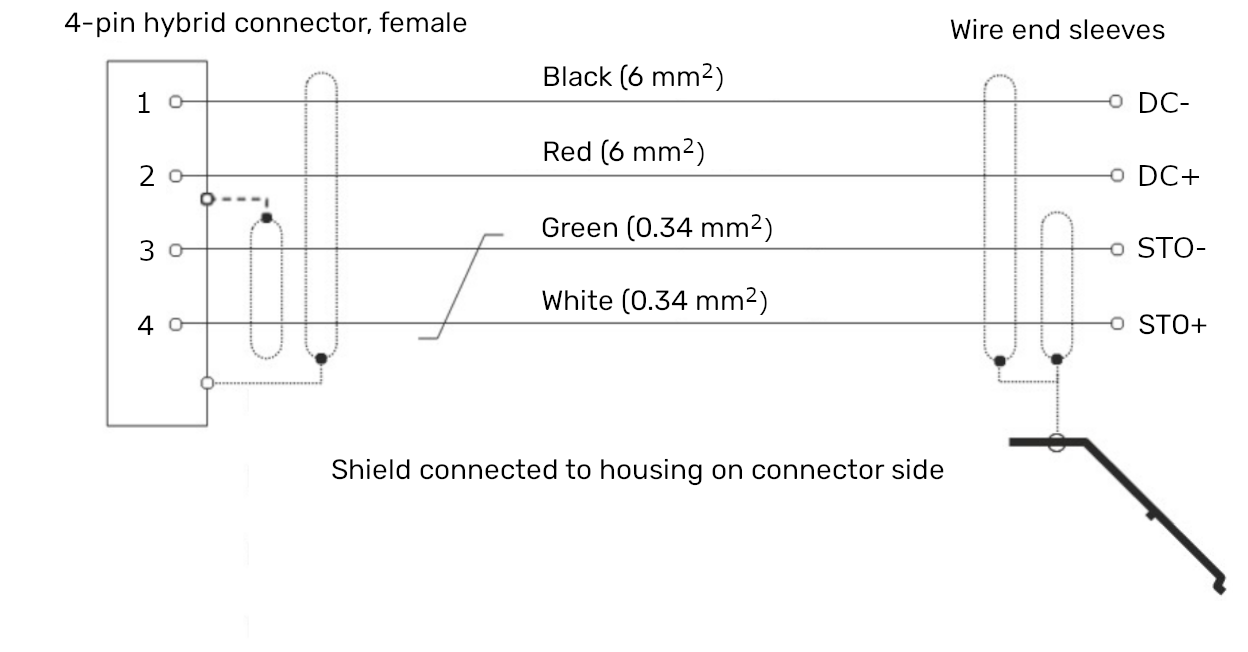

Power Cable PC-050-SR / PC-100-SR / PC-200-SR pinout

Power cable voltage table
