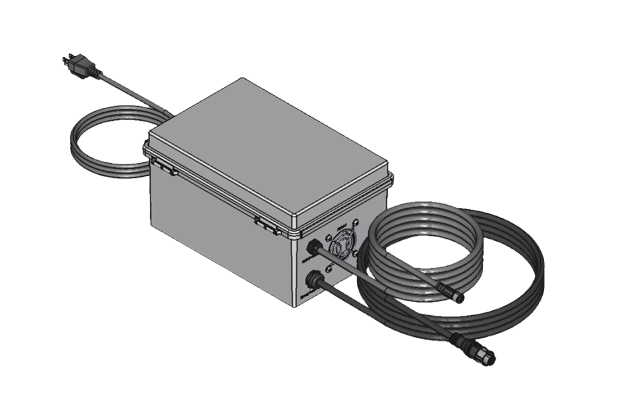

Each DC power supply PS-1500-XX is capable of providing power to up to eight 3-Series Flyways or four 4-Series. This power supply is provided preinstalled in an enclosure so it can be used in a machine without an electrical cabinet. When used with the 3-Series system, the DC output voltage should be set at 48VDC nominal value; when used for 4-series flyways, the DC output should be set at 54 VDC nominal value.
The table below lists the available socket types based on the country of use. This enclosed power supply comes with the customer's selected lengths of Flyway and PMC power cables installed.
|
XX Code |
Description |
|---|---|
|
US |
US plug, Type A |
|
DE |
German plug, Type |
|
UK |
UK plug, Type |
|
CN |
China plug, Type |
|
Input |
|
|
AC Input voltage |
AC 100 – 240 V (-15%/+10%) |
|
Harmonic correction |
active |
|
Power factor |
0.99 |
|
Input inrush current limitation |
active |
|
Input inrush current |
17 A / 11 A |
|
External input fuse recommendation |
B-16 A / C-16 A |
|
Output |
|
|
Adjustment range |
48 – 54 VDC |
|
Output current range |
20 - 17.8 A |
|
Output current |
17.8 A at 54 VDC 20 A at 48 VDC |
|
Power reserves |
50% Bonus Power |
|
Ripple and noise voltage max. |
150mVpp |
|
Overview |
|
|
Dimensions (W x H x D) |
125 mm x 124 mm x 127 mm |
|
Weight per unit (excl. packaging) |
1900 g |
|
Mounting method |
DIN rail |
|
Operating temp. range |
-25°C to 70°C |
|
Connection method |
Screw terminals |
|
Efficiency, typ. |
95% |
|
Power losses, typ. |
50.5 W |
|
MTBF SN 29500 @ 40°C (h) |
300000 h |
|
DC-OK signal |
yes |
