Standard 3 Series XBots


XBot type

Nominal Dimensions

Payload

CAD Downloads

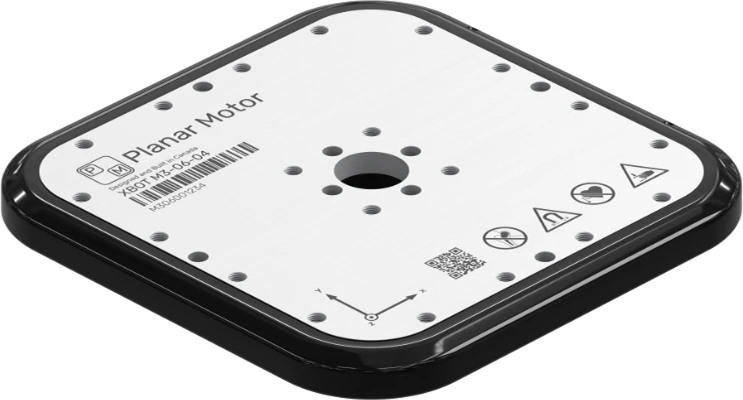

M3-06-SD00-04

(aka M3-06-04)

120 x 120 x 10 mm3

0.6 kg

2D / 3D

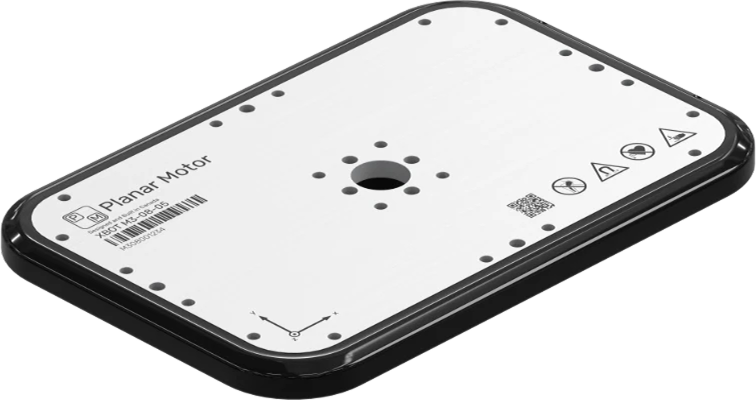

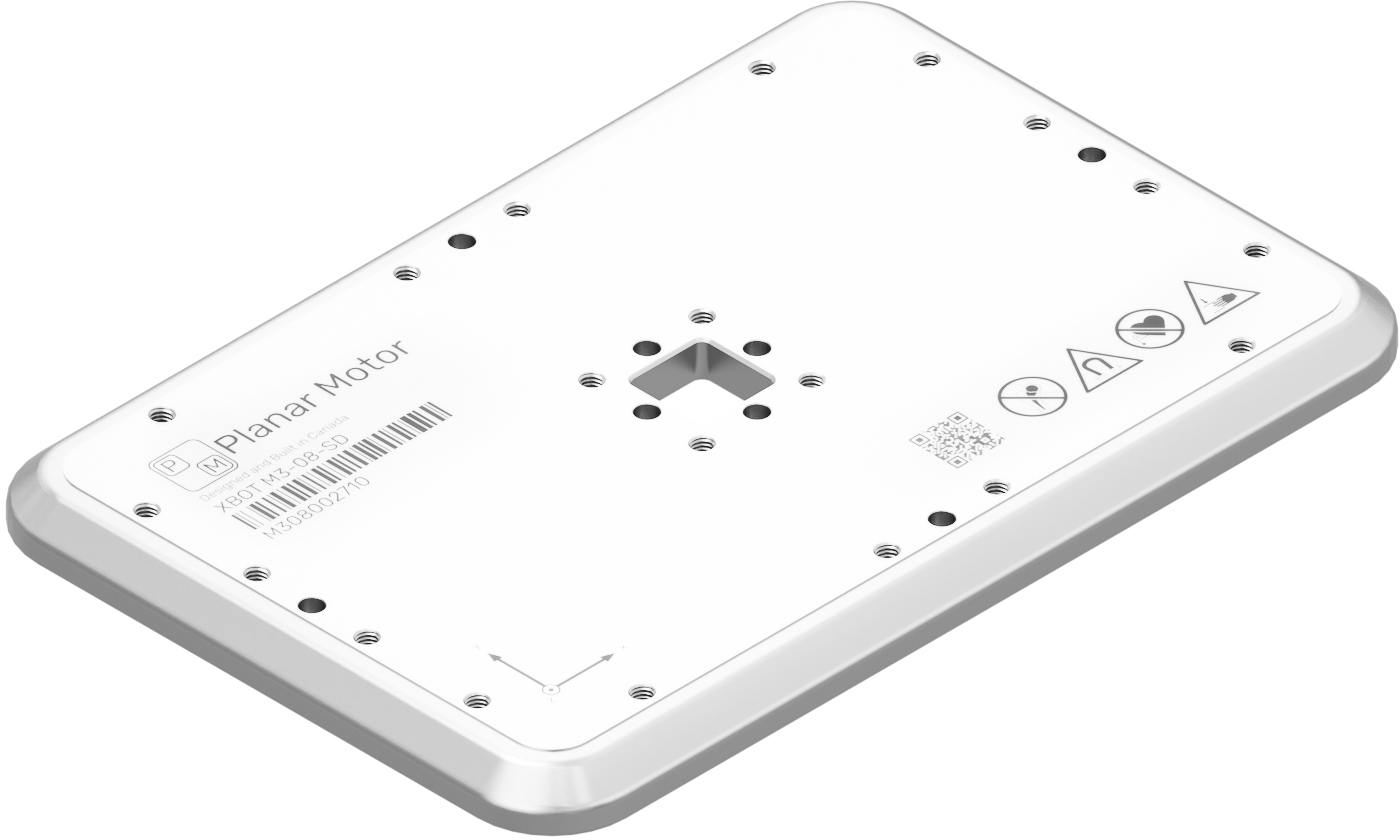

M3-08-SD00-05

(aka M3-08-05)

180 x 120 x 10 mm3

1.0 kg

2D / 3D

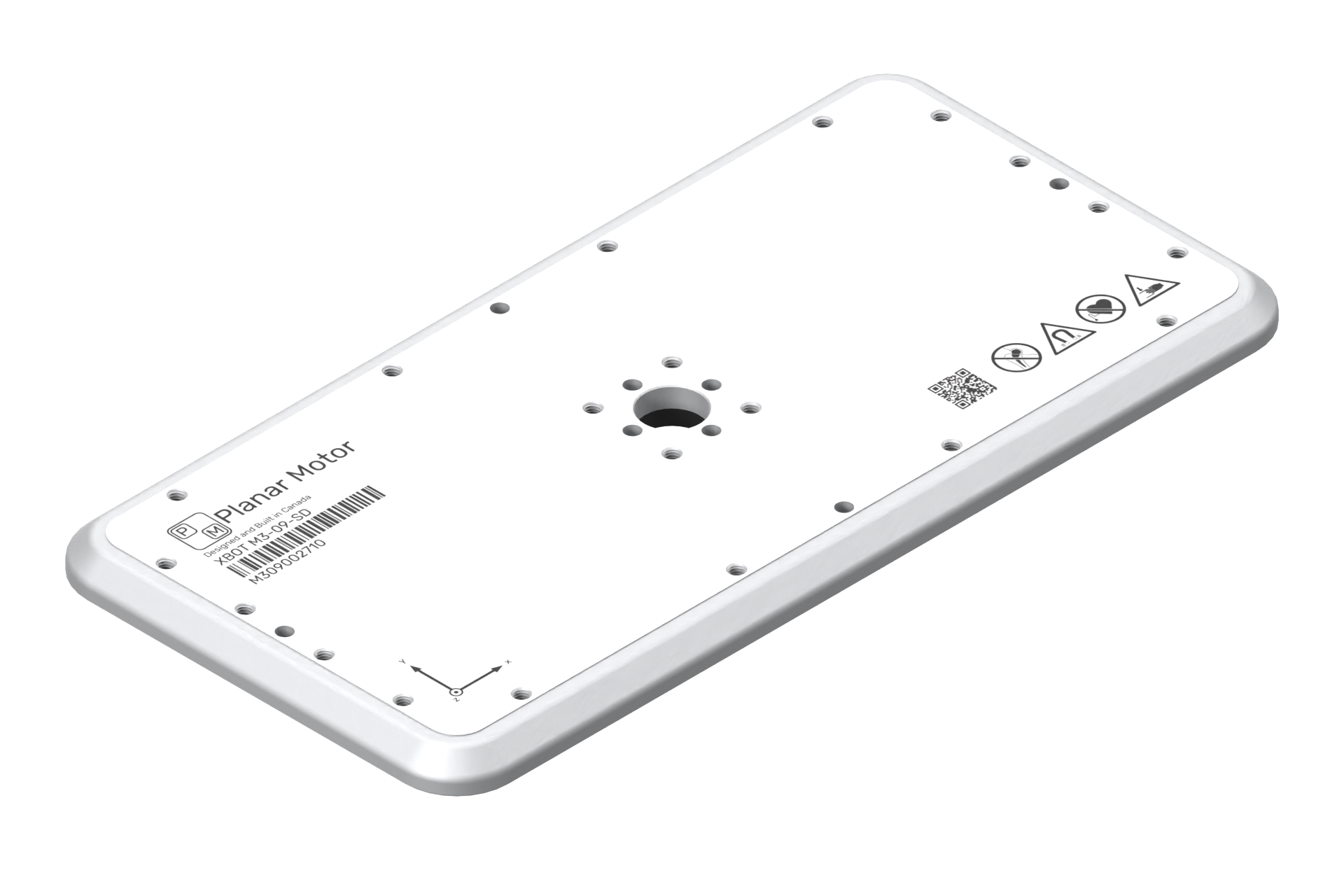

ISO M3-09.png

M3-09-SD00-11

240 x 120 x 10 mm3

1.5 kg

2D / 3D

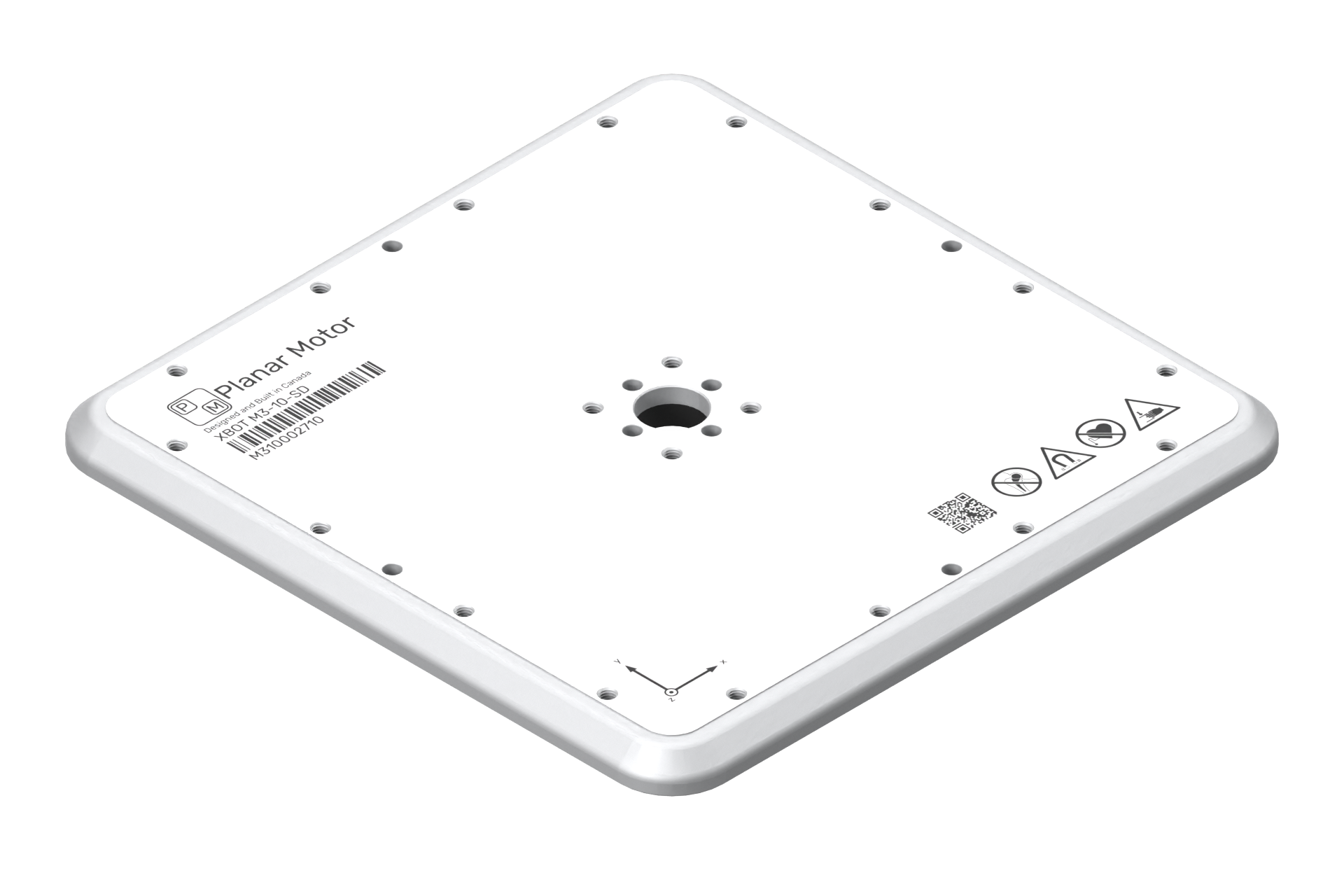

ISO M3-10.png

M3-10-SD00-11

180 x 180 x 10 mm3

2.5 kg

2D / 3D

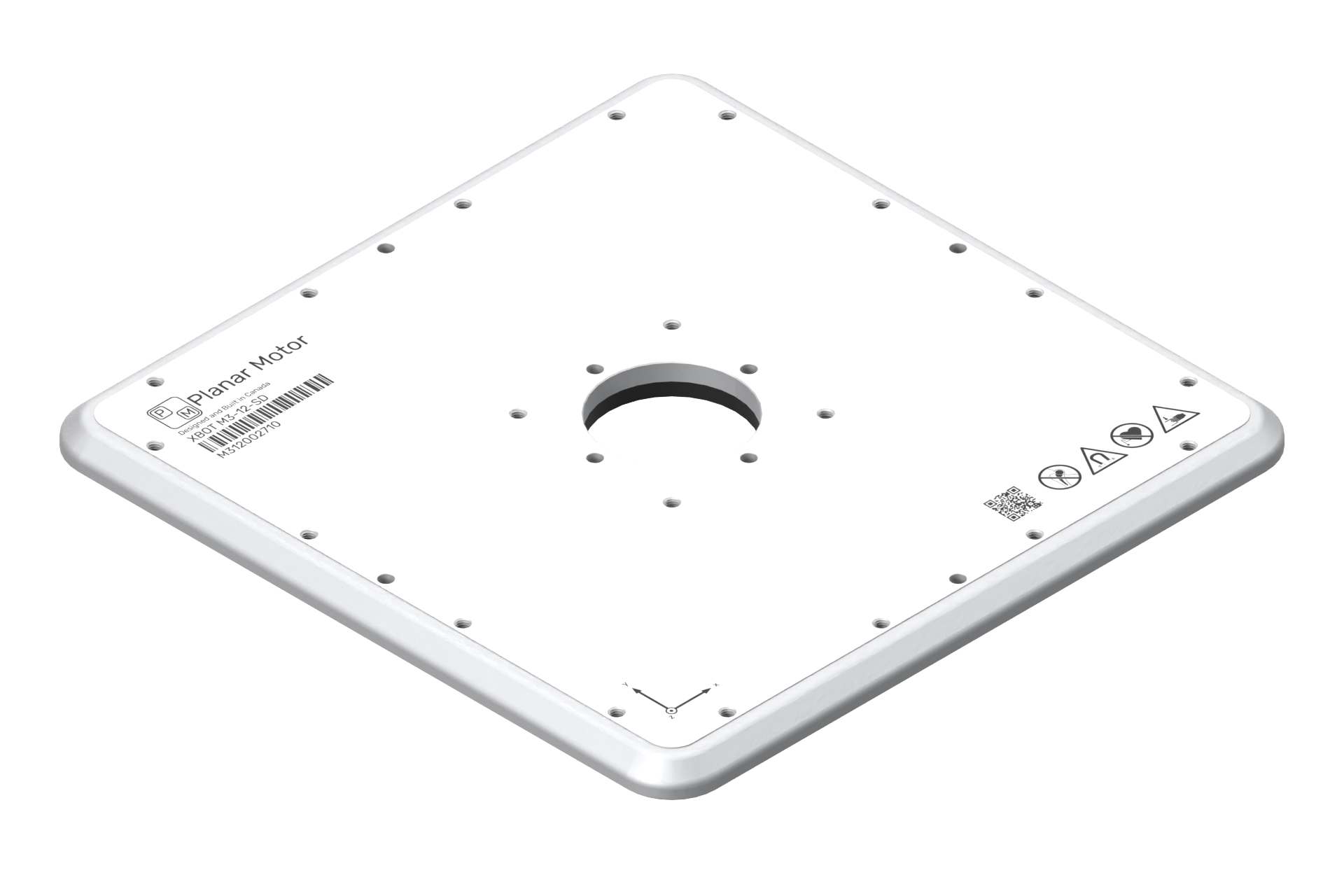

ISO M3-12.png

M3-12-SD00-11

210 x 210 x 10 mm3

3.5 kg

2D / 3D

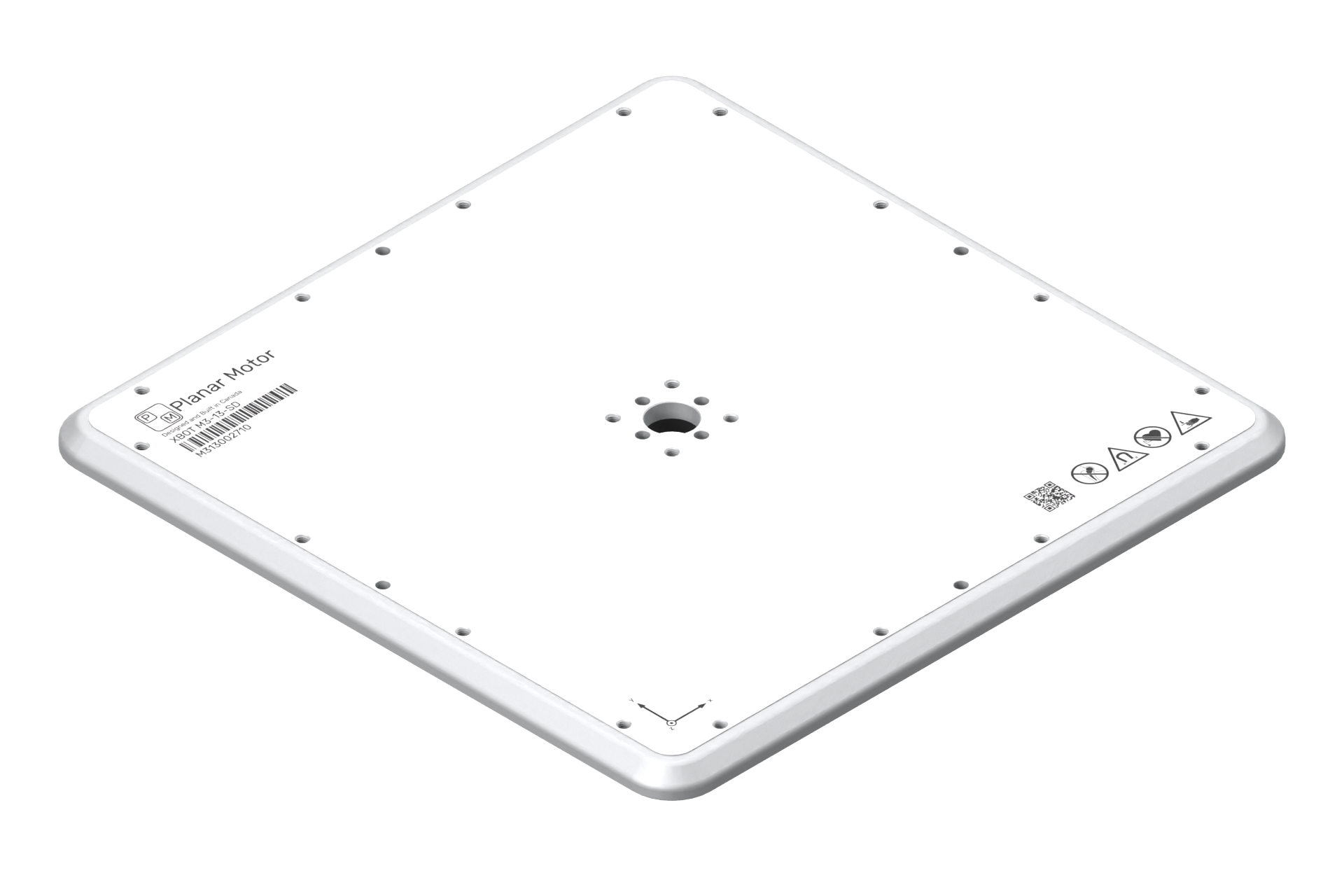

ISO M3-13.png

M3-13-SD00-11

240 x 240 x 10 mm3

5.0 kg

2D / 3D

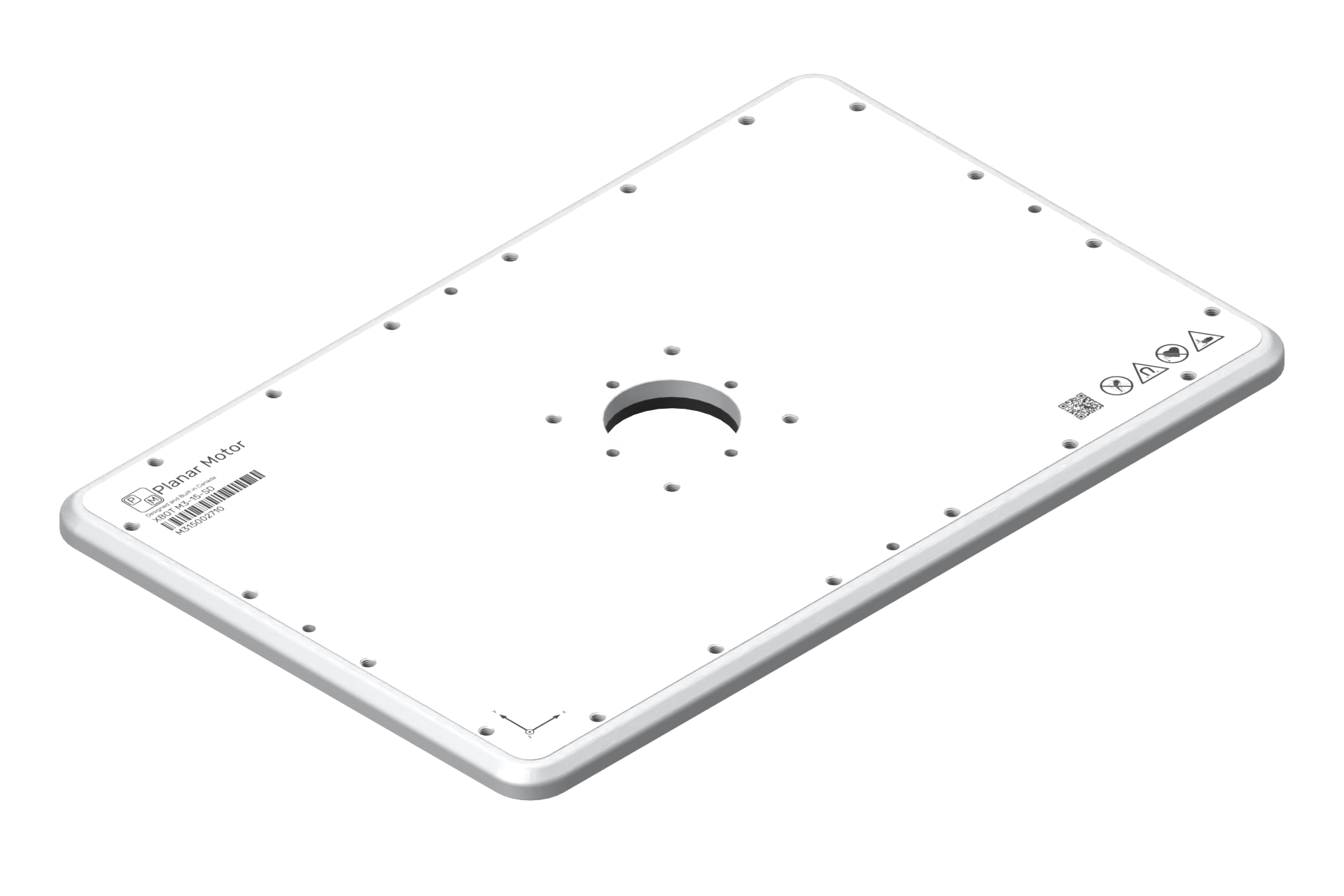

ISO M3-15.png

M3-15-SD00-11

330 x 210 x 11 mm3

6.0 kg

2D / 3D

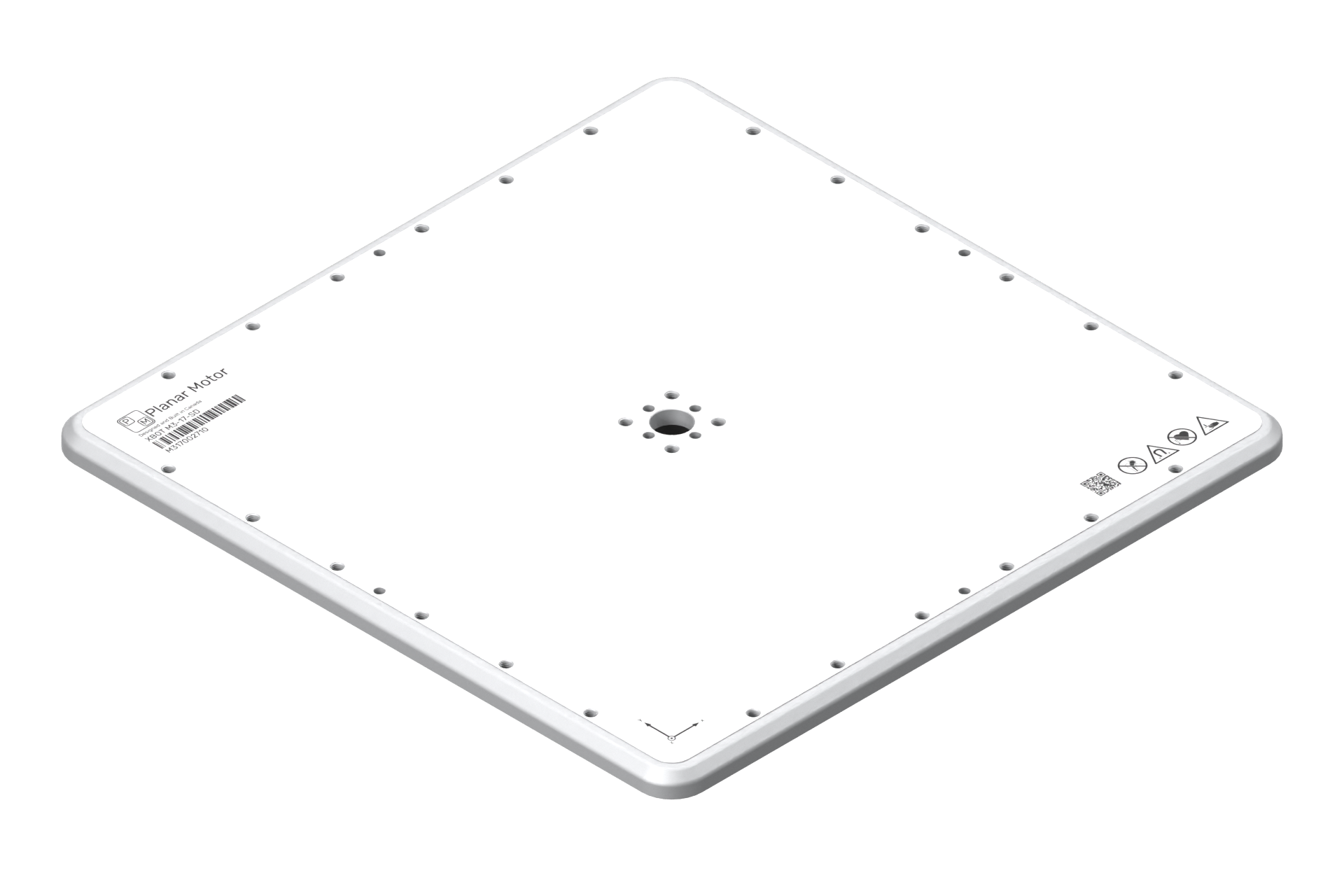

ISO M3-17.png

M3-17-SD00-11

300 x 300 x 11 mm3

8.0 kg

2D / 3D

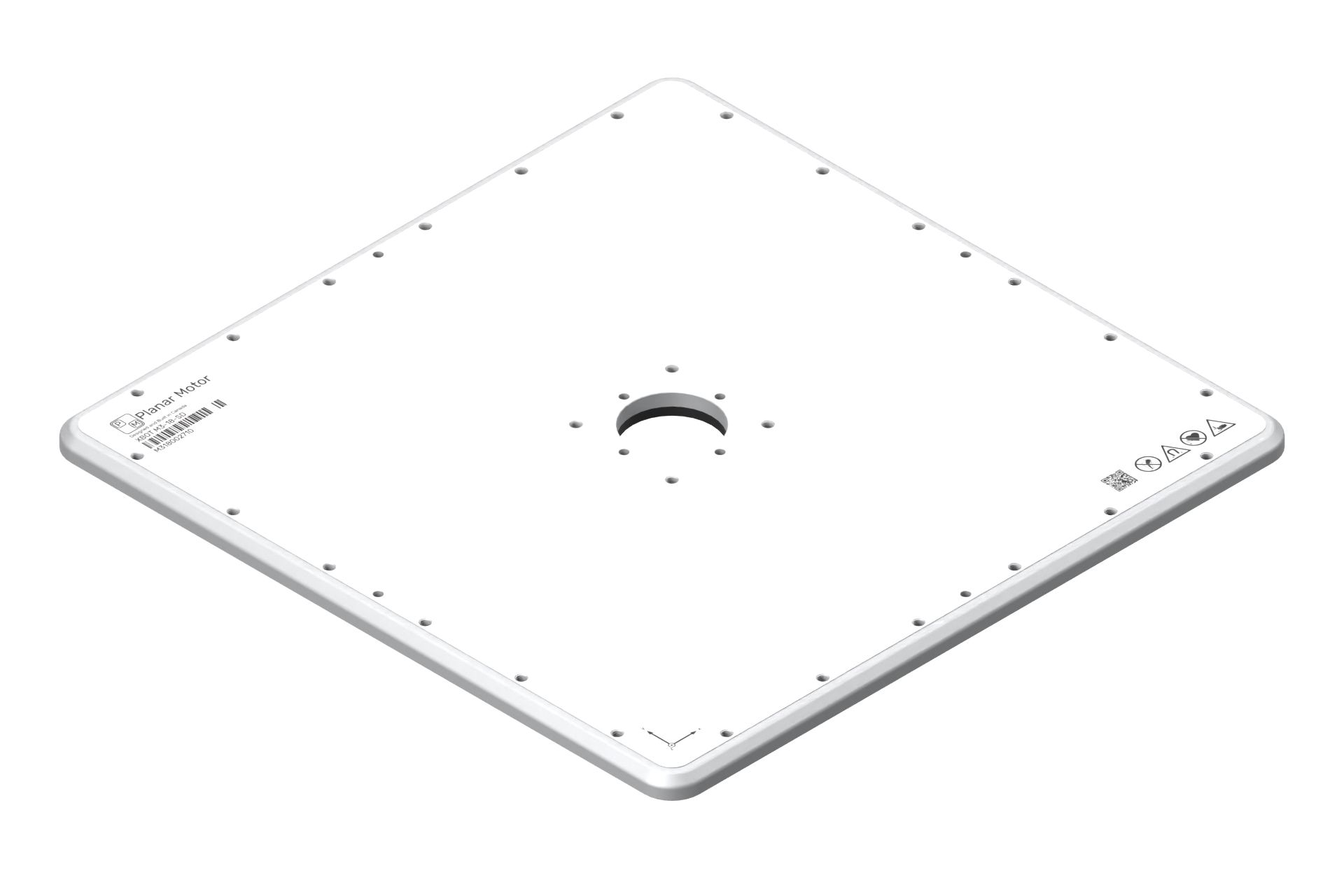

ISO M3-18.png

M3-18-SD00-11

330 x 330 x 11 mm3

10 kg

2D / 3D

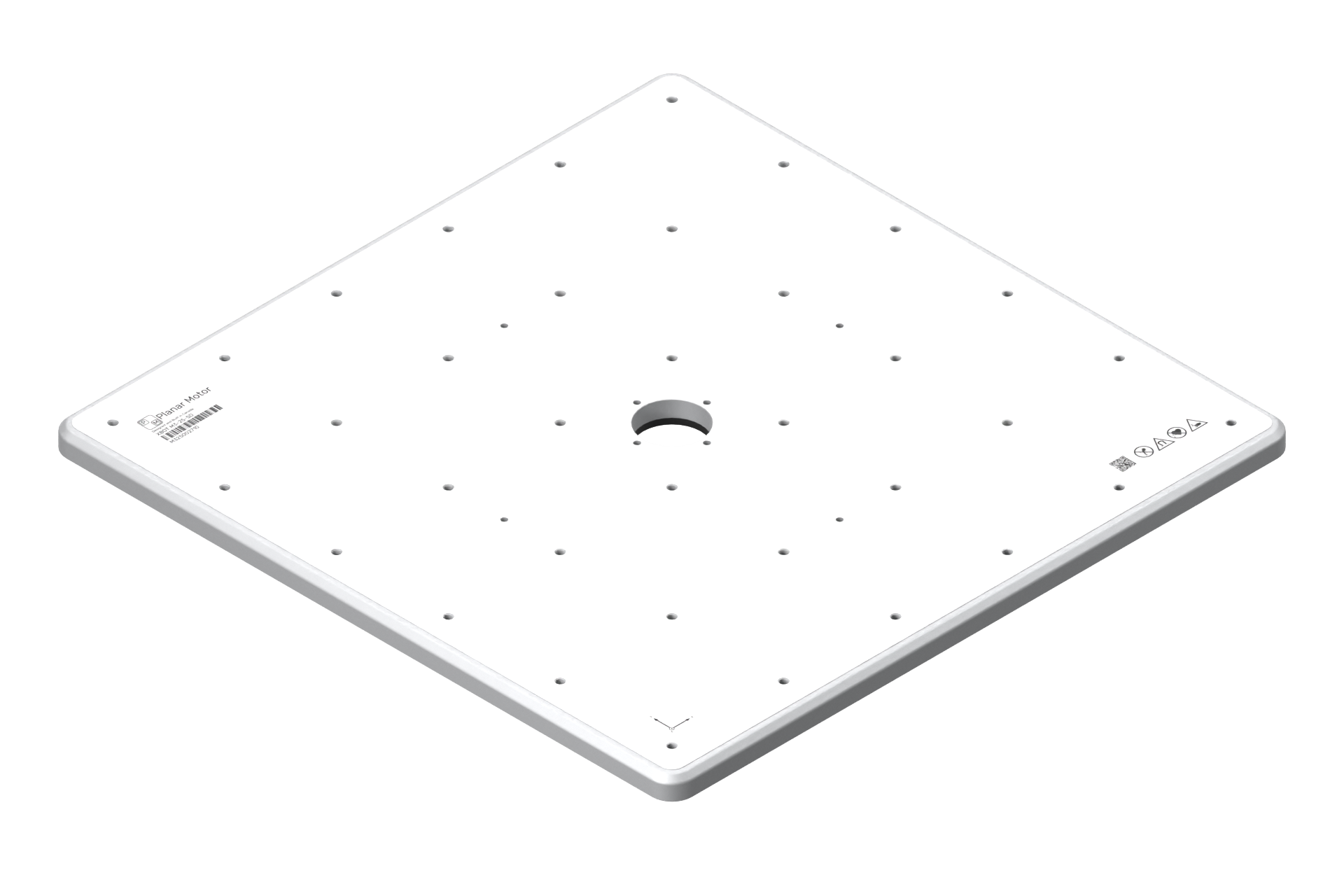

ISO M3-25.png

M3-25-SD00-11

450 x 450 x 16 mm3

20 kg

2D / 3D
