Use this command to obtain the content of a specific piece of G-code.
See also: G-code
Fieldbus Interface

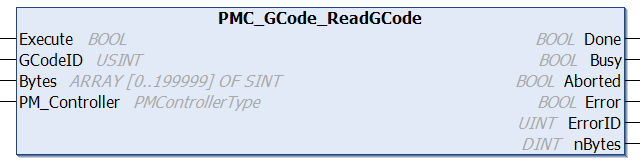

PMC_GCode_ReadGCode
Inputs
|
Name
|
Data Type
|
Description
|
|
Execute
|
BOOL
|
Execution of the function block begins on a rising edge of this input. |
|
GCodeID
|
USINT
|
G-code ID, valid range is [1,64] |
|
Bytes
|
SINT[0..199999]
|
The byte array to store the full G-code
|
|
PM_Controller
|
PMControllerType
|
Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
|
Name
|
Data Type
|
Description
|
|
Done
|
BOOL
|
Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE) |
|
Busy
|
BOOL
|
Function block is active and must continue to be called. |
|
Aborted
|
BOOL
|
Command aborted by another command. |
|
Error
|
BOOL
|
If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
|
ErrorID
|
UINT
|
0x0: All OK. Otherwise, please see Fieldbus Reply Codes. |
|
nBytes
|
DINT
|
Number of bytes for the GCode
|
Ethernet Interface
GCodeRtn ReadGCode(int gCodeID)
Parameters
|
Name
|
Type
|
Description
|
|
gCodeID
|
int
|
G-code ID, valid range is [1,64]
|
Returns
|
Name
|
Type
|
Description
|
|
GCodeRtn.PmcRtn
|
PMCRTN enum
|
ALLOK (0): Command Accepted. Otherwise, please see Ethernet Reply Codes. |
|
GCodeRtn.GCodeText
|
string
|
G-code text obtained by the command
|
Conditions
|
Operating Conditions
|
|
Preconditions
|
None
|
|
Postconditions
|
The specified G-code's content is read
|
Description
Use this command to obtain the content of a specific piece of G-code.
See also: G-code
