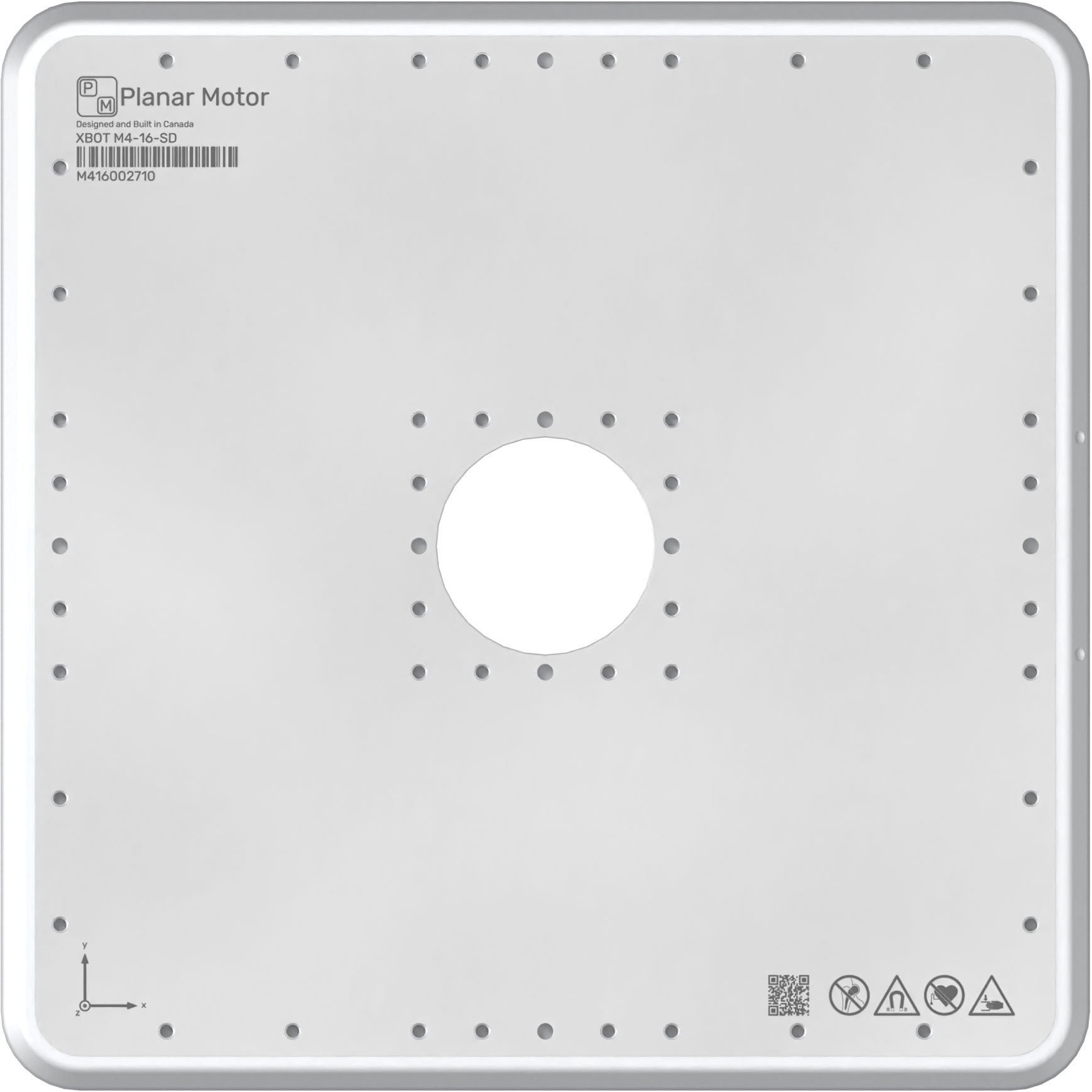

M4-16-SD00-11

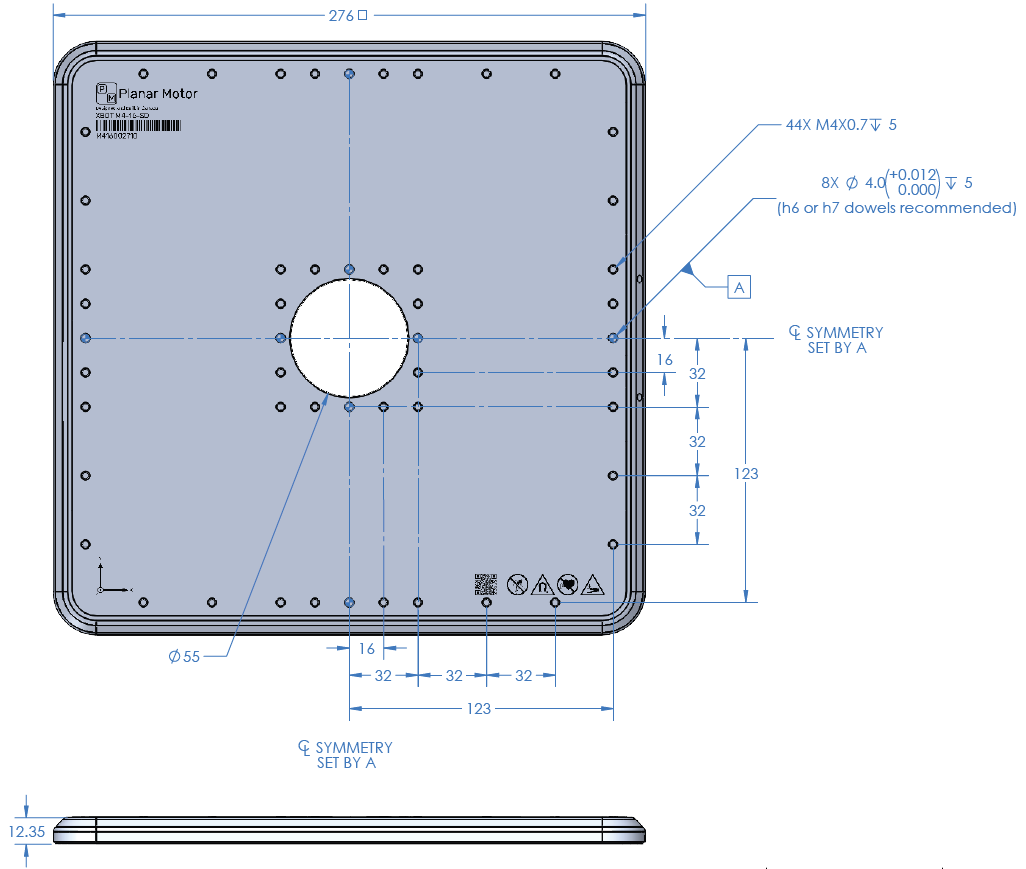

Dimensional drawing of M4-16-SD00-11 XBot
General Data | |
Model No | M4-16-SD00-11 |
Description | XBot (Mover) 280 x 280 x 12 mm 10 micron repeatability typ. Absolute traceability |
Payload | 7.0 kg |
Absolute ID | Integrated |
XBot Conditions | |
Temperature | |
Operating | 5°C to 70°C*,** |
Relative Humidity | |
Operating | 5% to 85%, non-condensing |
Ambient Conditions | |
Temperature | |
Storage | -40°C to 70°C |
Transport | -40°C to 70°C |
Relative Humidity | |
Storage | 5% to 85% |
Transport | 95% at 40°C |
Mechanical properties | |
Dimensions | |
Length | 276 mm |
Width | 276 mm |
Height | 12.35 mm |
Weight | 4.4 kg |
Frame Material | Anodized aluminum |
Bottom Cover Material / Adhesive | Lexan 8B35 / 3M™ 468MP |
Bumper Material | Anodized aluminum |
Payload Mounting Holes | 44 x M4x0.7*** |
Payload Locating Holes | 8 x Ø4 mm dowel holes*** |
Max. Torque on Threads | 2.5 Nm (4 mm minimum engagement) |
*Higher temperature XBots may be made by special order. Contact the manufacturer for more information.
**See Flyway Technical Details section for information on maximum ambient conditions for the Flyway.
*** Do not use magnetic screws / dowels on these holes as it may hinder performance.
