Rotary Motion Spin

The Rotary Motion Spin (free spin) command can be used to rotate an XBot for the specified duration.

The XBot must be positioned at the center of the Flyway in order to be rotated, the XBot will be rotated in the counter clockwise direction (positive Rz).

For general rotation limits, see Full Rotation Motions

Fieldbus Interface

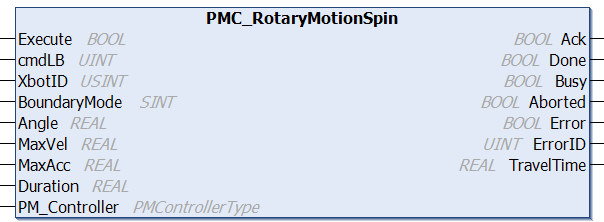

PMC_RotaryMotionSpin

Inputs

Name	Data Type	Description
Execute	BOOL	Execution of the function block begins on a rising edge of this input.
cmdLB	UINT	Any 2 byte Command Label, user defined.
XbotID	USINT	ID of the XBot. Real XBot IDs [1,78]. Virtual XBot IDs [100,127]. Macro IDs [128,191]
BoundaryMode	SINT	0: High performance (requires an entire Flyway to be empty) 1: Compact (neighbour XBots can encroach up to 15mm onto the Flyway with rotating XBot)
Angle	REAL	Final angle of rotation in radians, after spinning has completed
MaxVel	REAL	Max velocity in rad/s
MaxAcc	REAL	Max Acceleration in rad/s2
Duration	REAL	Minimum spinning duration, in seconds. 0 can be used to spin forever until a Stop XBot Motion command is received.
PM_Controller	PMControllerType	Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC.

Outputs

Name	Data Type	Description
Ack	BOOL	Command has been accepted by the PMC when Ack = TRUE.
Done	BOOL	Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE)
Busy	BOOL	Function block is active and must continue to be called.
Aborted	BOOL	Command aborted by another command.
Error	BOOL	If there is an error in processing the command, then Error = TRUE, otherwise, FALSE.
ErrorID	UINT	0x0: All OK. Otherwise, please see PMC Reply Codes.
TravelTime	REAL	Traveling time (s)

Ethernet Interface

MotionRtn RotaryMotionTimedSpin(ushort cmdLabel, int xbotID, double targetRz, double targetRzVel, double targetRzAcc, double timeS)

Parameters

Name	Type	Description
cmdLabel	ushort	Any 2 byte Command Label, user defined.
xbotID	int	ID of the XBot. Real XBot IDs [1,78]. Virtual XBot IDs [100,127]. Macro IDs [128,191]
targetRz	double	final angle of rotation in radians
targetRzVel	double	Max velocity in rad/s
targetRzAcc	double	Max Acceleration in rad/s2
timeS	double	rotation time in seconds

Returns

Name	Type	Description
MotionRtn.PmcRtn	PMCRTN enum	ALLOK (0): Command Accepted. Otherwise, please see Ethernet Reply Codes.
MotionRtn.TravelTimeSecs	float	Time required to complete this command, in seconds

Conditions

Operating Conditions
Preconditions	XBot is in the Idle state, Obstacle Detected state, Motion state, Stopped state, Hold Position state, or Waiting state.
Postconditions	If the XBot is ready to immediately begin executing the command, then the XBot will enter the Motion state. Otherwise, the XBot state remains unchanged, but the command will be added to the XBot's motion buffer.

Description

The Rotary Motion Spin (free spin) command can be used to rotate an XBot for the specified duration.

The XBot must be positioned at the center of the Flyway in order to be rotated.
