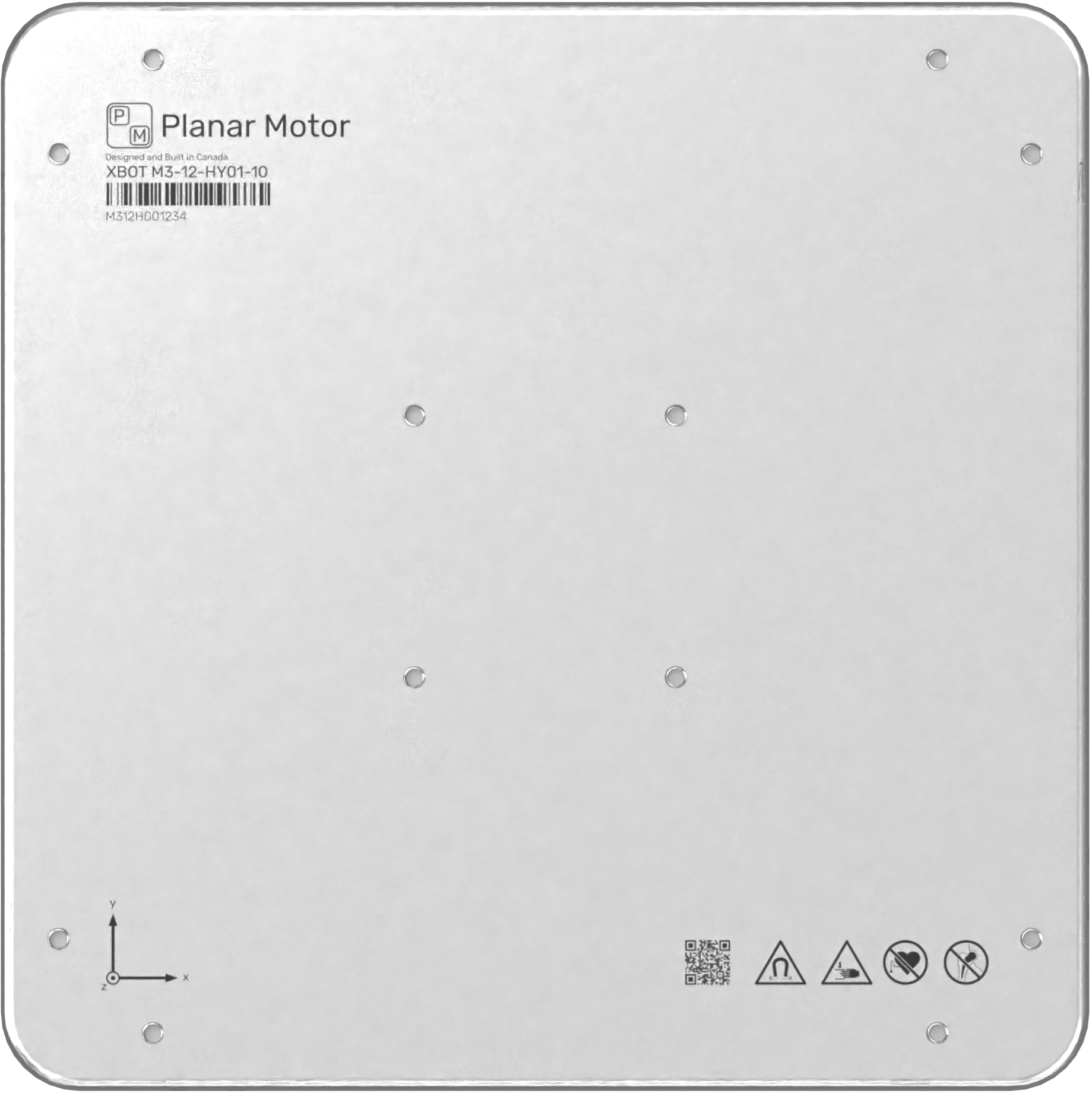

M3-12-HY01-10

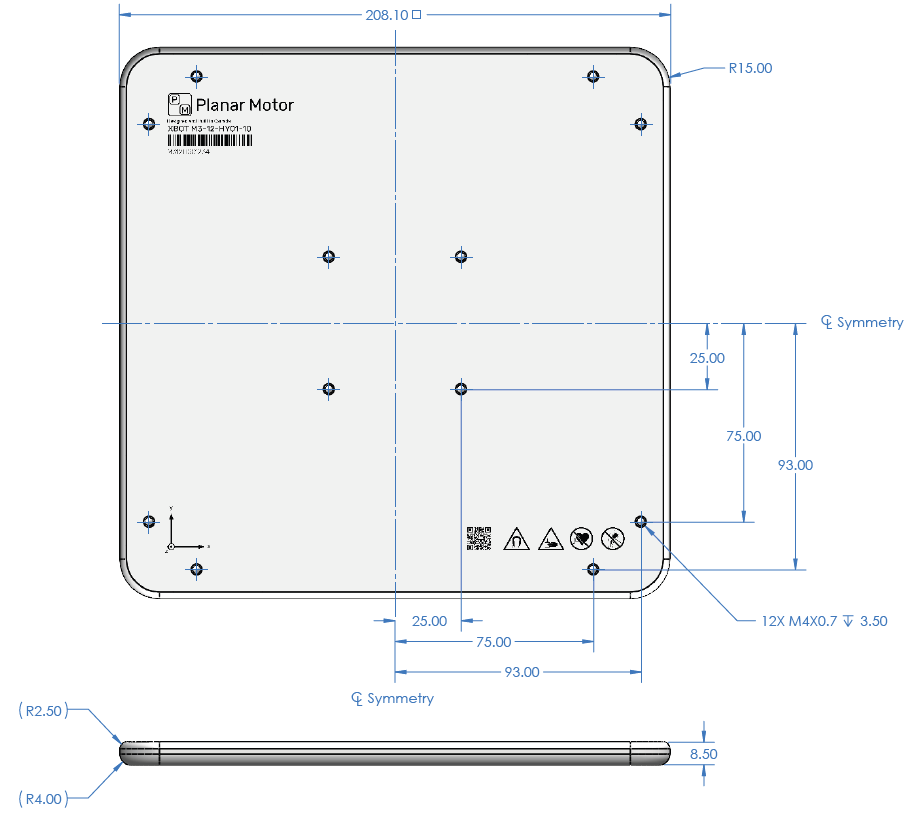

Dimensional drawing of M3-12-HY01-10 XBot
General Data | |
Model No | M3-12-HY01-10 |
Description | XBot (Mover) 210 x 210 x 8.5 mm 1 micron repeatability typ. Absolute traceability (select models) |
Payload | 3.5 kg |
Absolute ID | Built-in |
XBot Conditions | |
Temperature | |
Operating | -25°C to 70°C*,** |
Relative Humidity | |
Operating | 5% to 85%, non-condensing |
Ambient Conditions | |
Temperature | |
Storage | -40°C to 70°C |
Transport | -40°C to 70°C |
Relative Humidity | |
Storage | 5% to 85% |
Transport | 95% at 40°C |
Mechanical properties | |
Dimensions | |
Length | 208.1 mm |
Width | 208.1 mm |
Height | 8.5 mm |
Weight | 2.85 kg |
Material | 316-L Stainless Steel |
Surface Roughness | Ra 1.6 on M3-12-HY01-10 Ra 0.8 on M3-12-HY81-10 |
Payload Mounting Holes | 12 x M4x0.7 |
*Higher temperature XBots may be made by special order. Contact the manufacturer for more information.
**See Flyway Technical Details section for information on maximum ambient conditions for the Flyway.
