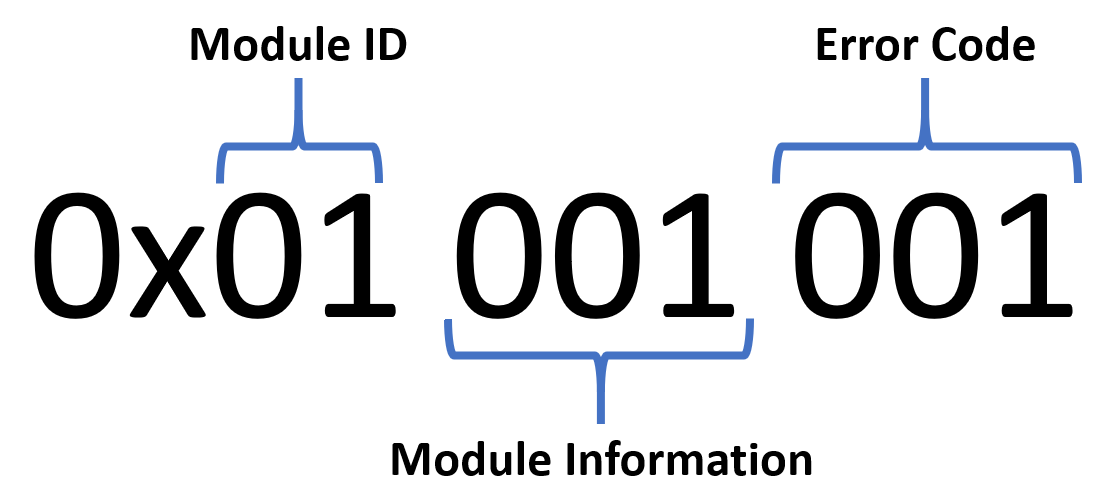

PMC error codes are constructed in the following format:
|
Module Name |
Module ID (Hex) |
Module Informaton (Hex) |
Module Error Code (Hex) |
Raw Number Range (Dec) |
|---|---|---|---|---|
|
System Error |
00 |
Always 000 |
From 1-14 |
0 - 16777215 |
|
Flyway Error |
02 |
Flyway ID |
From 1-26 |
33554432 - 50331647 |
|
XBot Error |
03 |
XBot ID + Axis ID |
From 1-9 |
50331648 - 67108863 |
Upon receiving the error code, translate the error code to Hex and check it against PMC Hardware Error Codes tables for detail.
