This command is used to get the status of a Safety Sector. See the state diagram in Safety Sector.
Fieldbus Interface

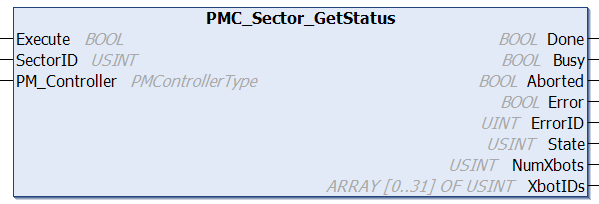

PMC_Sector_GetStatus
Inputs
|
Name
|
Data Type
|
Description
|
|
Execute
|
BOOL
|
Execution of the function block begins on a rising edge of this input. |
|
SectorID
|
USINT
|
ID of the Safety Sector
|
|
PM_Controller
|
PMControllerType
|
Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
|
Name
|
Data Type
|
Description
|
|
Done
|
BOOL
|
Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE) |
|
Busy
|
BOOL
|
Function block is active and must continue to be called. |
|
Aborted
|
BOOL
|
Command aborted by another command. |
|
Error
|
BOOL
|
If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
|
ErrorID
|
UINT
|
0x0: All OK. Otherwise, please see Fieldbus Reply Codes. |
|
State
|
USINT
|
Safety Sector State, see state diagram in Safety Sector
|
|
NumXbots
|
USINT
|
Number of XBots inside the Safety Sector
|
|
XbotIDs
|
USINT[0..31]
|
The IDs of XBots inside the Safety Sector
|
Ethernet Interface
SectorStatusReturn GetSectorStatus(int sectorID)
Parameters
|
Name
|
Type
|
Description
|
|
sectorID
|
int
|
Sector ID (>0)
|
Returns
|
Name
|
Type
|
Description
|
|
SectorStatusReturn.PmcRtn
|
PMCRTN enum
|
ALLOK (0): Command Accepted. Otherwise, please see Ethernet Reply Codes. |
|
SectorStatusReturn.SectorState
|
SECTORSTATE enum
|
Safety Sector State, see state diagram in Safety Sector
|
|
SectorStatusReturn.XBotCount
|
int
|
Number of XBots inside the Safety Sector
|
|
SectorStatusReturn.XbotIDs
|
int[]
|
The IDs of XBots inside the Safety Sector
|
|
SectorStatusReturn.XBotCountOnBorder
|
int
|
Number of XBots on the edge of the Safety Sector
|
|
SectorStatusReturn.XBotIDsOnBorder
|
int[]
|
The IDs of XBots on the edge of the Safety Sector
|
Conditions
|
Operating Conditions
|
|
Preconditions
|
None
|
|
Postconditions
|
The status of the Safety Sector is reported
|
Description
This command is used to get the status of a Safety Sector. See the state diagram in Safety Sector.
