Set PMC Configuration

Use this function block to write a configuration to the PMC.

The input to this function is the readout of the standard XML configuration file that can be saved from the PMTool. See Loading and Saving Configuration

The file can be loaded into the SINT (byte) array using standing file I/O blocks for the PLC, more details are available in the File Example project provided in the release. See also the File I/O section of the corresponding Development Environment Setup help file.

For the configuration to take effect, the PMC must be rebooted. If using a real system and the Flyway layout was modified, a power cycle of the Flyways is required.

Fieldbus Interface

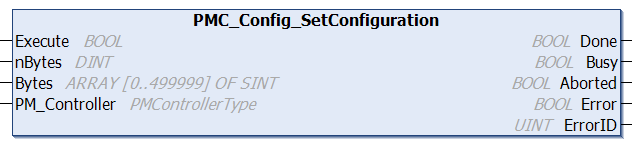

PMC_Config_SetConfiguration

Inputs

Name	Data Type	Description
Execute	BOOL	Execution of the function block begins on a rising edge of this input.
nBytes	DINT	The size of the configuration file, in bytes
Bytes	SINT[0..499999]	Byte array containing the configuration to write
PM_Controller	PMControllerType	Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC.

Outputs

Name	Data Type	Description
Done	BOOL	Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE)
Busy	BOOL	Function block is active and must continue to be called.
Aborted	BOOL	Command aborted by another command.
Error	BOOL	If there is an error in processing the command, then Error = TRUE, otherwise, FALSE.
ErrorID	UINT	0x0: All OK. Otherwise, please see PMC Reply Codes.

Conditions

Operating Conditions
Preconditions	PMC is in INACTIVE or ERROR state
Postconditions	PMC receives the new configuration

Description

Use this function block to write a configuration to the PMC.

The input to this function is the readout of the standard XML configuration file that can be saved from the PMTool. See Loading and Saving Configuration

The file can be loaded into the SINT (byte) array using standard file I/O blocks for the PLC, more details are available in the File Example project provided in the release.

For the configuration to take effect, the PMC must be rebooted. If using a real system and the Flyway layout was modified, a power cycle of the Flyways is required.
