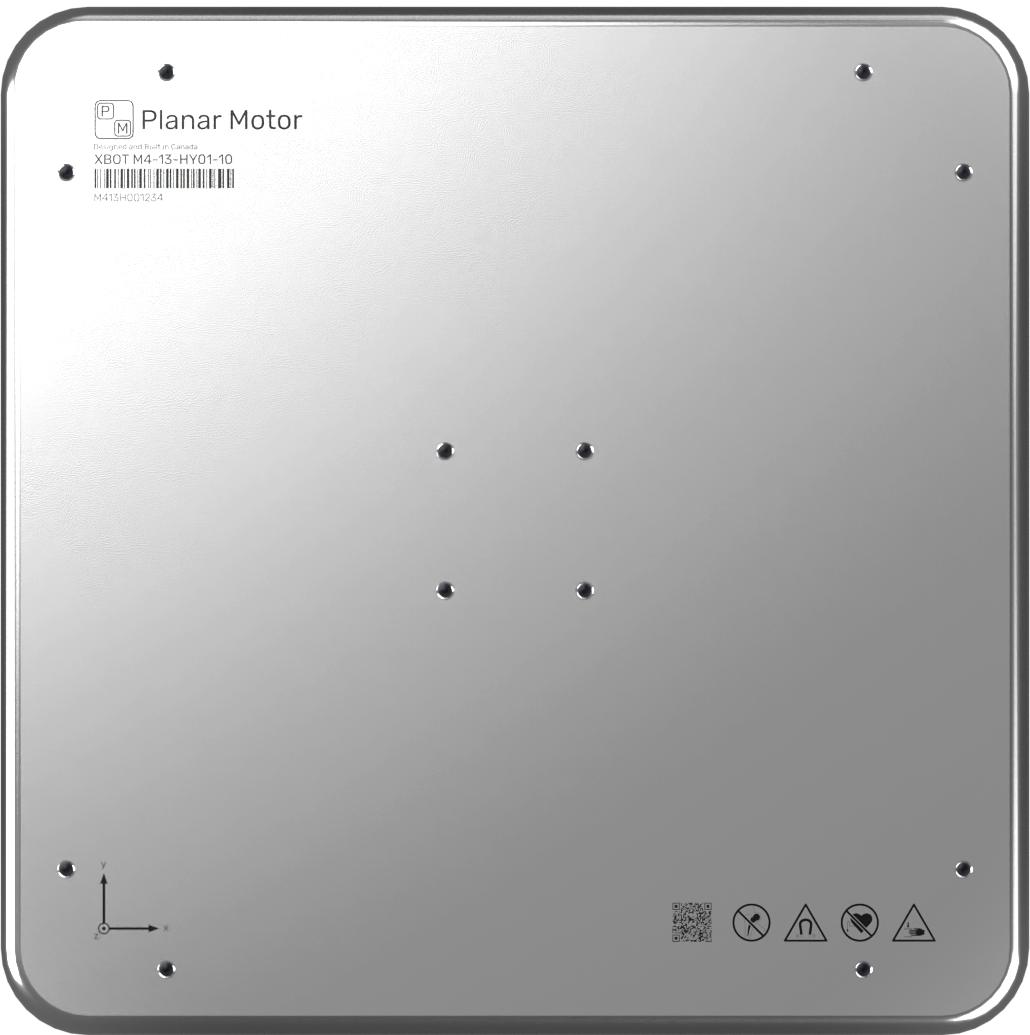

M4-13-HY01-10

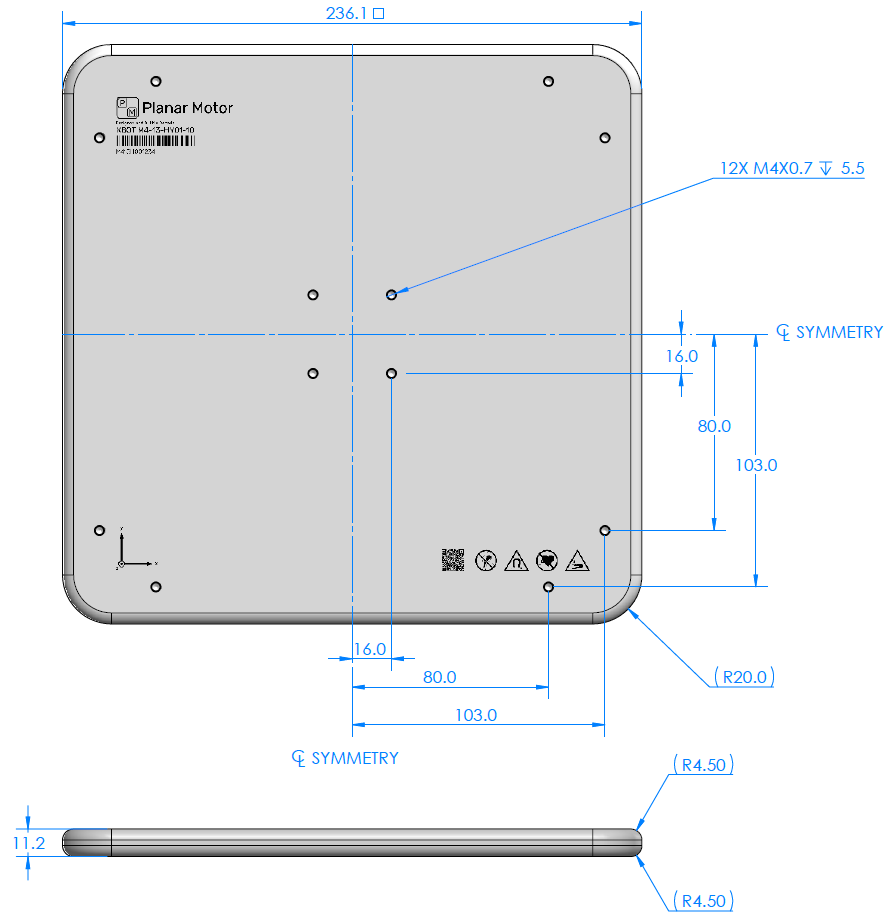

Dimensional drawing of M4-13-HY01-10 XBot
General Data | |
Model No | M4-13-HY01-10 |
Description | XBot (Mover) 236.1 x 236.1 x 11.2 mm 10 micron repeatability typ. Absolute traceability |
Payload | 5.0 kg |
Absolute ID | Integrated |
XBot Conditions | |
Temperature | |
Operating | 5°C to 70°C |
Relative Humidity | |
Operating | 0% to 100% |
Ambient Conditions | |
Temperature | |
Storage / Transport | -25°C to 70°C |
Relative Humidity | |
Storage / Transport | 0% to 100% |
Mechanical properties | |
Dimensions | |
Length | 236.1 mm |
Width | 236.1 mm |
Height | 11.2 mm |
Weight | 3.3 kg |
Material | 316-L Stainless Steel |
Autoclave safe | No |
Surface Roughness | Ra 1.6 on M4-13-HY01-10 Ra 0.8 on M4-13-HY81-10 |
Payload Mounting Holes | 12 x M4x0.7* |
* Do not use magnetic screws on these holes as it may hinder performance.
