Technical Details
|
General Data |
|
|
Cable Name |

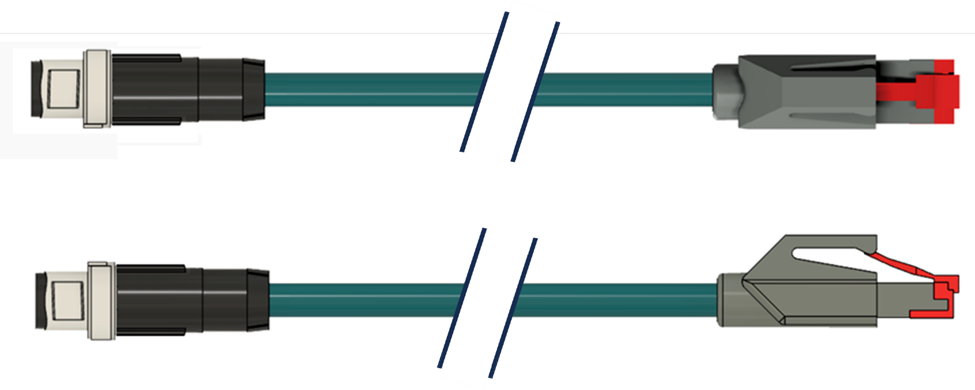

PMC Ethernet Cable |
|
Model Number |
CC-XXX-ETH, XXX is 3-digit number code representing cable length with 020 for 2m, 050 for 5m, 100 for 10m, 200 for 20m. |
|
Short Description |
Network Cable |
|
Long Description |
Network cable, Ethernet CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded, Plug straight M12 / IP67, coding: A, on Plug Straight RJ45 / IP20, optional lengths of 2m, 5m, 10m, 20m. |
|
Used for |
Connection between Planar Motor Controller (PMC) and a host PC or PLC via a Ethernet port |
|
Dimensions |
|
|
Length of Cable |
2m, 5m, 10m, 20m. |
|
Cable Weight |
120 g for 2m, 260 g for 5m, 500 g for 10m, 1kg for 20m. |
|
Ambient Conditions |
|
|
Degree of Protection |
IP67 (M12 connector) |
|
Degree of Protection |
IP20 (RJ45 connector) |
|
Ambient Temperature (Operation) |
-25 °C to 85 °C (M12 connector) |
|
Ambient Temperature (Operation) |
-25 °C to 60 °C (RJ45 connector) |
|
Electrical/Signal Properties |
|
|
Rated Current at 40°C |
1 A |
|
Rated Voltage |
48 V AC |
|
Rated Voltage |
60 V DC |
|
Number of Positions |
8 |
|
Signal Type/Category |
Ethernet CAT5 (IEC 11801), 1 Gbps |
|
Transmission Characteristics (Category) |
CAT5 |
|
Transmission Speed |
1 Gbps |
|
Characteristics Head 1 |
|
|
Head Type |
Male plug straight M12 / IP67 |
|
Coding |
A (Standard) |
|
Standards/Regulations |
M12 connector IEC 61076-2-101 |
|
Contact Material |
Cu-Sn |
|
Contact Carrier Material |
TPU GF |
|
Contact Surface Material |
Ni/Au |
|
Housing Material |
Plastic |
|
Characteristics Head 2 |
|
|
Head Type |
Plug straight RJ45 / IP20 |
|
Standards and Regulations |
|
|
Standards/Specifications |
M12 connector IEC 61076-2-101 |
|
Cable |
|
|
Cable Type |
Ethernet flexible CAT5, 4-pair |
|
Cable Type (Abbreviation) |
94E |
|
UL AWM Style |
20963 (80°C/30 V) |
|
Signal Type/Category |
Ethernet CAT5 (IEC 11801), 1 Gbps |
|
Cable Structure |
4x 2 x AWG26/7; SF/UTP |
|
Conductor Cross Section |
4x 2 x 0.14 mm² |
|
AWG Signal Line |
26 |
|
Conductor Structure Signal Line |
7 x 0.16 mm |
|
Core Diameter Including Insulation |
0.96 mm |
|
Wire Colours |
white/blue-blue, white/orange-orange,
|
|
Twisted Pairs |
2 cores to the pair |
|
Overall Twist |
4 pairs for core |
|
Shielding |
Aluminium-coated foil, tinned copper braided shield |
|
Optical Shield Covering |
70 % |
|
External Sheath Colour |
water blue RAL 5021 |
|
Outer Sheath Thickness |
1.05 mm |
|
External Cable Diameter D |
6.4 mm ±0.2 mm |
|
Minimum Bending Radius, Fixed Installation |
4 x D |
|
Minimum Bending Radius, Flexible Installation |
8 x D |
|
Tensile Strength GRP |
<= 100 N |
|
Cable Weight |
47 kg/km |
|
Outer Sheath Material |
PUR |
|
Material Conductor Insulation |
Foamed PE |
|
Conductor Material |
Bare Cu litz wires |
|
Standards/Specifications |
Electrical requirements EN 50288-2-2 |
|
Insulation Resistance |
>500 MΩ*km |
|
Loop Resistance |
<290.00Ω/km |
|
Cable Capacity |
approx. 48 nF/km (at 1 kHz) |
|
Wave Impedance |
100Ω ±5Ω (at 100 MHz) |
|
Signal Runtime |
5.3ns/m |
|
Coupling Resistance |
100.00mΩ/m (at 10MHz) |
|
Nominal Voltage Cable |
100 V |
|
Test Voltage Core/Core |
700 V (50 Hz, 1 min.) |
|
Test Voltage Core/Shield |
700 V (50 Hz, 1 min.) |
|
Current Carrying Capacity of Cable |
2 A (according to DIN VDE 0891-1) |
|
Flame Resistance |
According to IEC 60332-1-2 |
|
Halogen-free |
According to IEC 60754-1 |
|
Resistance to Oil |
According to EN 60811-2-1 |
|
Shielded |
Yes |
|
Ferrite Core |
One at Head 1 |
|
Environmental Product Compliance |
|
|
REACH SVHC |
Lead 7439-92-1 |
|
China RoHS |
Environmentally Friendly Use Period = 50 years |
Schematic Diagram
|
Pin Assignment M12 Connector, 8-Pos., A-Coded |

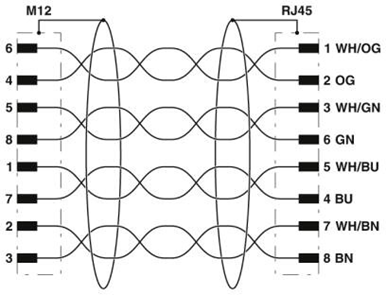

Circuit Diagram of M12 and RJ45 Plug |
Pin Assignment RJ45 Plug |
|
|
|
|
