General Data |
|
|
Model No |
M3-13-HT01-10 |
|
Description |

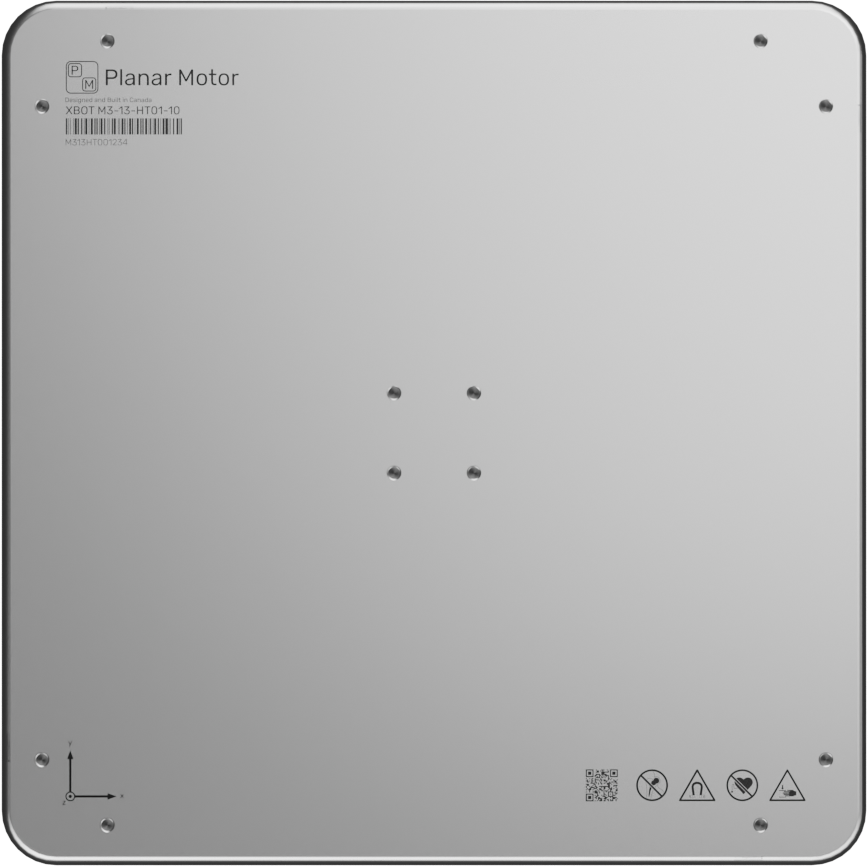

XBot (Mover) 1 micron repeatability typ. Absolute traceability |
|
Dimensions |
238.1 x 238.1 x 9.6 mm |
|
Payload |
5.0 kg |
|
Absolute ID |
Integrated |
|
Mechanical CAD data |
|
|
XBot Conditions |
|
|
Temperature |
|
|
Operating |
5°C to 70°C |
|
Relative Humidity |
|
|
Operating |
0% to 100% |
|
Ambient Conditions |
|
|
Temperature |
|
|
Storage / Transport |
-25°C to 70°C |
|
Relative Humidity |
|
|
Storage / Transport |
0% to 100% |
|
Mechanical properties |
|
|
Dimensions |
|
|
Length |
238.1 mm |
|
Width |
238.1 mm |
|
Height |
9.6 mm |
|
Weight |
2.95 kg |
|
Material |
316-L Stainless Steel |
|
Autoclave safe |
Yes |
|
Surface Roughness |
Ra 1.6 |
|
Payload Mounting Holes |
12 x M4x0.7* |
* Do not use magnetic screws on these holes as it may hinder performance.
