This command is used to remove the fence around a Power Sector.
See the Power Sector state diagram (Power Sector) for when a fence is created around a Power Sector.
Fieldbus Interface

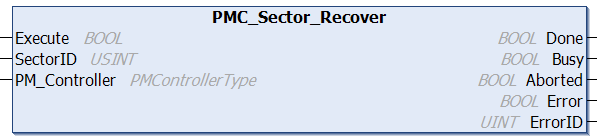

PMC_Sector_Recover
Inputs
Name | Data Type | Description |
|---|
Execute | BOOL | Execution of the function block begins on a rising edge of this input. |
SectorID | USINT | ID of the Power Sector to recover / remove fence for |
PM_Controller | PMControllerType | Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
Name | Data Type | Description |
|---|
Done | BOOL | Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE) |
Busy | BOOL | Function block is active and must continue to be called. |
Aborted | BOOL | Command aborted by another command. |
Error | BOOL | If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
ErrorID | UINT | 0x0: All OK. Otherwise, please see PMC Reply Codes. |
Conditions
Operating Conditions |
|---|
Preconditions | The specified Power Sector is in the Active_Fenced state |
Postconditions | The specified Power Sector enters the Operation state |
This command is used to remove the fence around a Power Sector.
See the Power Sector state diagram (Power Sector) for when a fence is created around a Power Sector.
