PMT-Define Zone

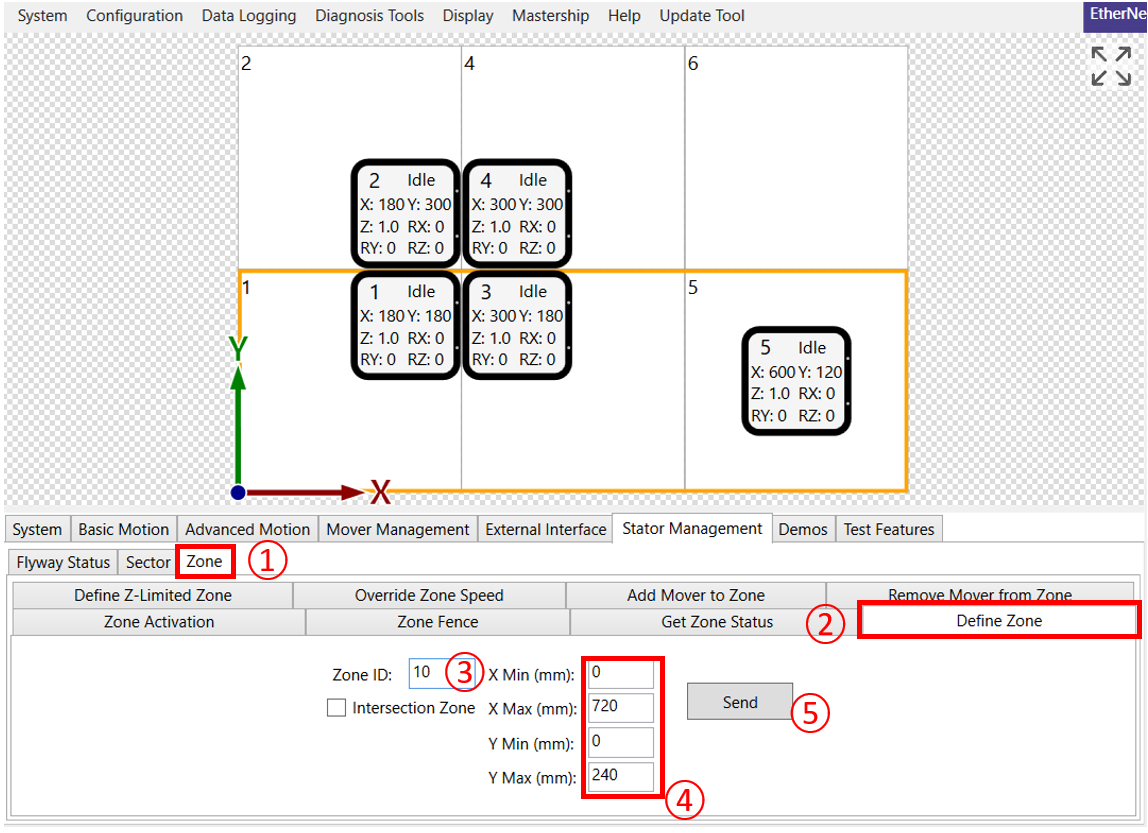

① Click the Stator Management \ Zone tab

② Click the Define Zone sub tab

③ Enter the Zone ID of the zone to define

④ Enter the boundary coordinates of the zone

⑤ Click "Send Command" when ready



Note:

  • This command is used to define a custom zone area that is not confined to a single Flyway

  • The minimum size of the zone is the size of the smallest XBot (120mm x 120mm)
