S3-xN Mounting Plate Guide

Download S3-xN Mounting Guide (PDF, DXF, STEP)

Example 2 x 1 S3-xN Flyway mounting plate.png

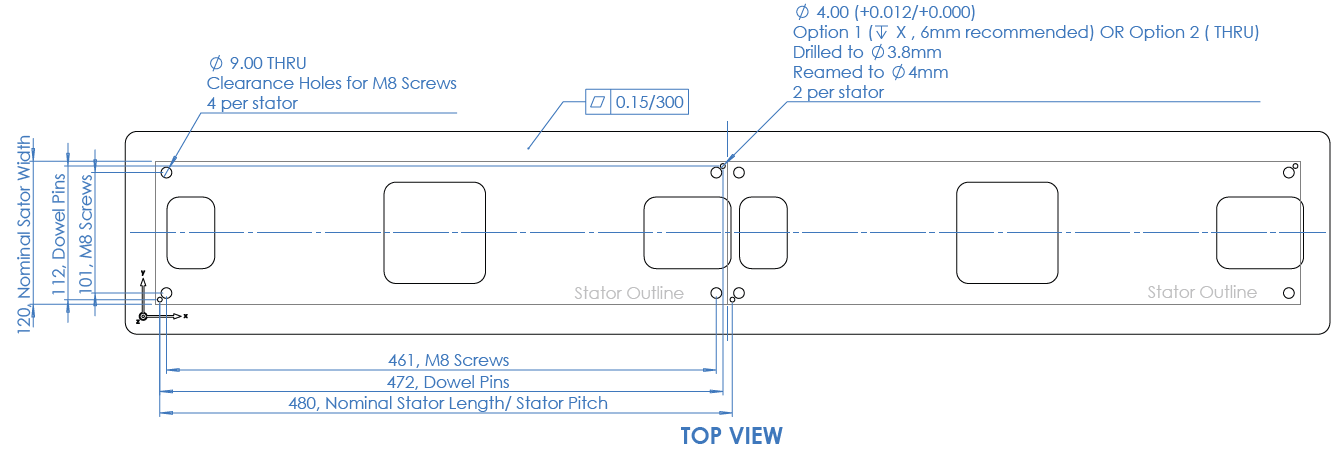

Example 2 x 1 S3-xN Flyway mounting plate
Example 1 x 1 S3-xN Flyway mounting plate.png

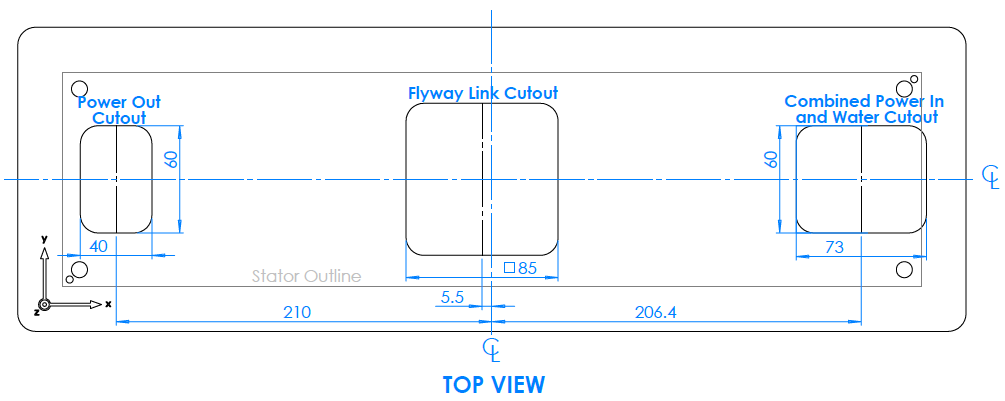

Example 1 x 1 S3-xN Flyway mounting plate

Layout Restrictions

Using S3-xS and S3-xN Flyways together create restrictions on the possible configurations of the system.

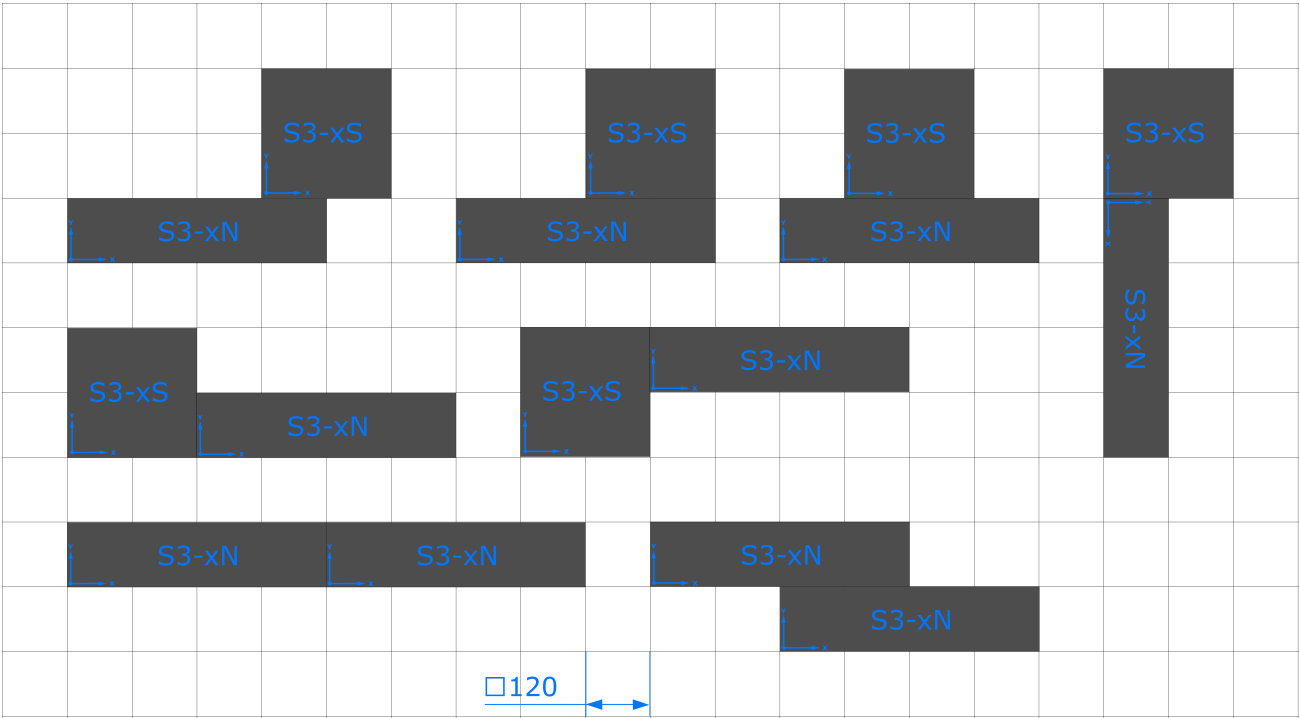

Allowable example 3-series configurations
