Deactivate Power Sector

This command is used to deactivate a Power Sector by deactivating the XBots located within that Power Sector.

An deactivated Power Sector will have a fence built around it to block XBots from entering the deactivated Power Sector.

Fieldbus Interface

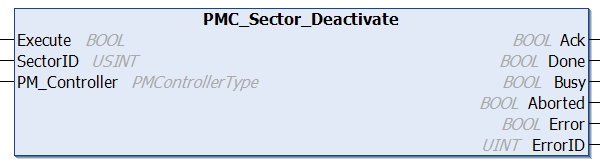

PMC_Sector_Deactivate

Inputs

Name	Data Type	Description
Execute	BOOL	Execution of the function block begins on a rising edge of this input.
SectorID	USINT	ID of the Power Sector
PM_Controller	PMControllerType	Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC.

Outputs

Name	Data Type	Description
Ack	BOOL	Command has been accepted by the PMC when Ack = TRUE.
Done	BOOL	Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE)
Busy	BOOL	Function block is active and must continue to be called.
Aborted	BOOL	Command aborted by another command.
Error	BOOL	If there is an error in processing the command, then Error = TRUE, otherwise, FALSE.
ErrorID	UINT	0x0: All OK. Otherwise, please see PMC Reply Codes.

Operating Conditions
Preconditions	The specified Power Sector is in the Operation, Active_Fenced, or Inactive_Fenced state. No XBots are located on the Sector Boundary or about to enter the Sector Boundary (cannot stop before the Sector Boundary).
Postconditions	The specified Power Sector enters the Inactive_Fenced State.

This command is used to deactivate a Power Sector by deactivating the XBots located within that Power Sector.

An deactivated Power Sector will have a fence built around it to block XBots from entering the deactivated Power Sector.

Typical workflow for powering off a Power Sector that is currently on

Deactivate Power Sector to deactivate XBots (if any) inside the Power Sector and build a fence around the Power Sector to prevent XBots from entering the Power Sector
Get Power Sector Status until it is in the "Inactive_Fenced" state, or wait for the Done signal of the previous "Deactivate Power Sector" command
Turn off power to Flyways in the Sector
