M4-33-SD00-11

General Data

Model No

M4-33-SD00-11

Description

XBot (Mover)

600 x 600 x 18 mm

10 micron repeatability typ.

Absolute traceability

Dimensions

600 x 600 x 18 mm

Payload

40.0 kg

Absolute ID

Integrated

Mechanical CAD data

2D (PDF) / 3D (STEP)

XBot Conditions

Temperature

Operating

5°C to 70°C

Relative Humidity

Operating

5% to 85%, non-condensing

Ambient Conditions

Temperature

    Storage / Transport

-25°C to 70°C

Relative Humidity

    Storage

5% to 85%

    Transport

95% at 40°C

Mechanical properties

Dimensions

    Length

596 mm

    Width

596 mm

    Height

18.4 mm

Weight

28 kg

Frame Material

Anodized aluminum

Bottom Cover Material

Polycarbonate

Bumper Material

Anodized aluminum

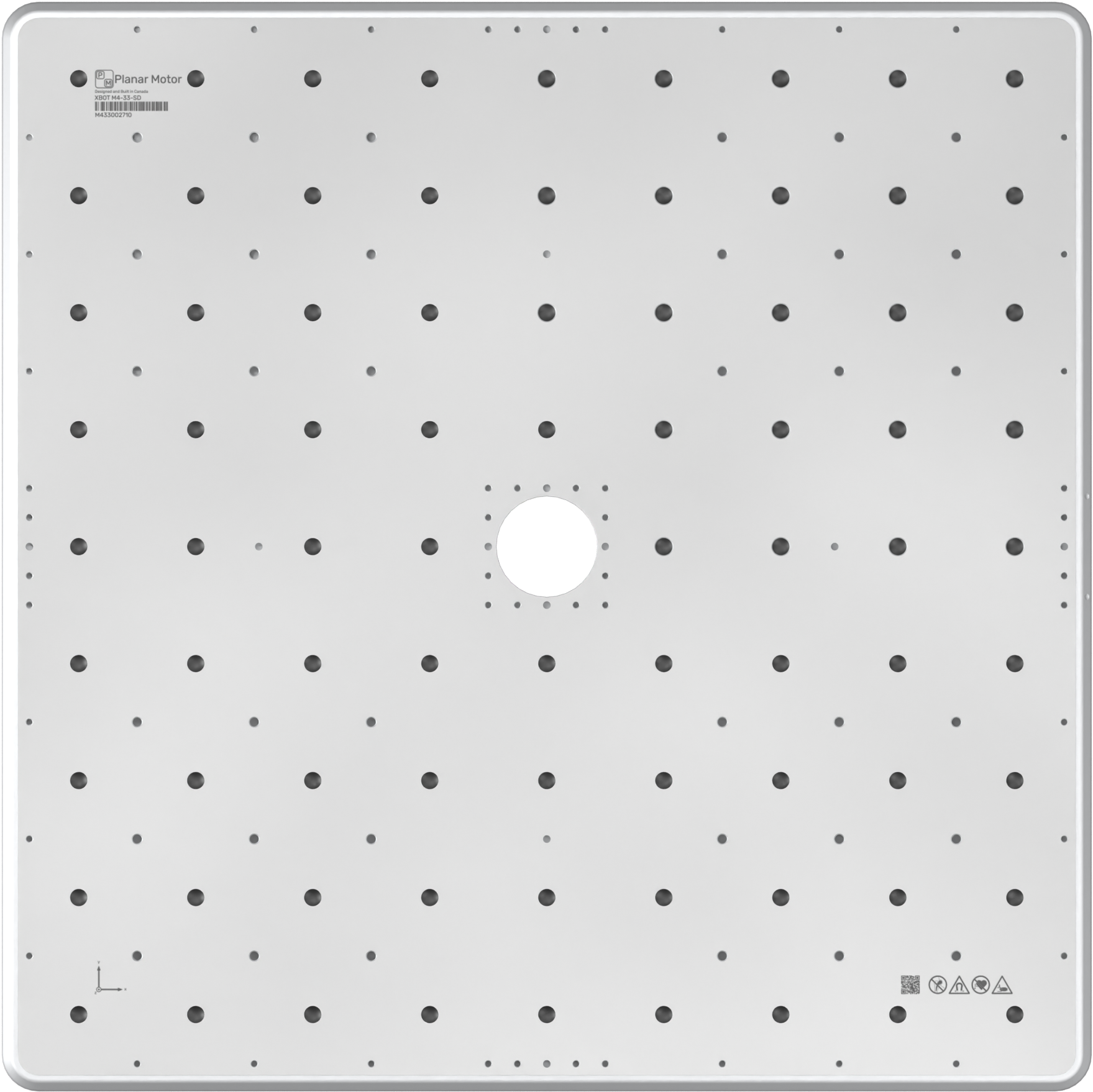

Payload Mounting Holes

36 x M6x1.0^*

52 x M4x0.7^*

Payload Locating Holes

12 x Ø4 mm dowel holes^*

Max. Torque on Threads

2.5 Nm (4 mm minimum engagement)
