PMT-Zone Activation

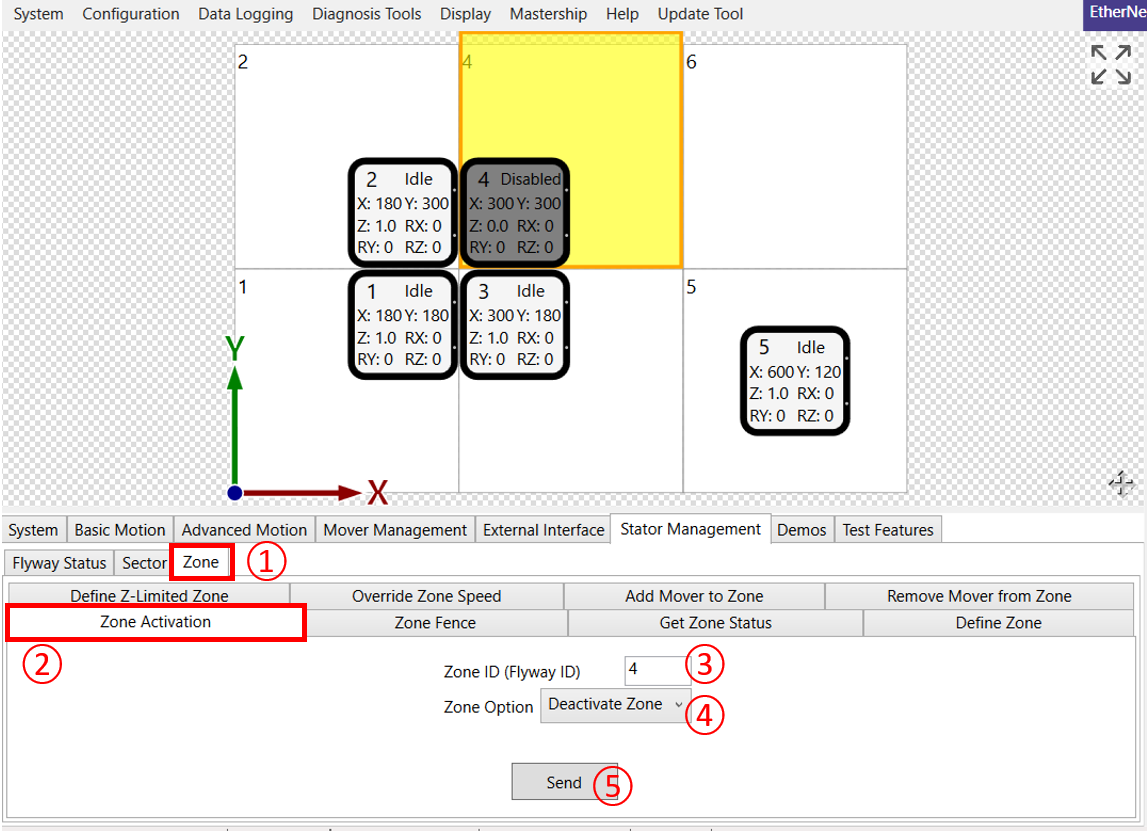

① Click the Stator Management \ Zone tab

② Click the Zone Activation sub tab

③ Enter the Zone ID of the zone to control

④ Select whether to activate or deactivate the zone

⑤ Click "Send" when ready



Note:

  • Zones can only be activated/deactivated if no XBots are on their boundary

  • Zone IDs and boundaries correspond to the respective Flyway IDs and boundaries by default, unless defined otherwise by Define Zone
