General Data |
|
|
Model No |

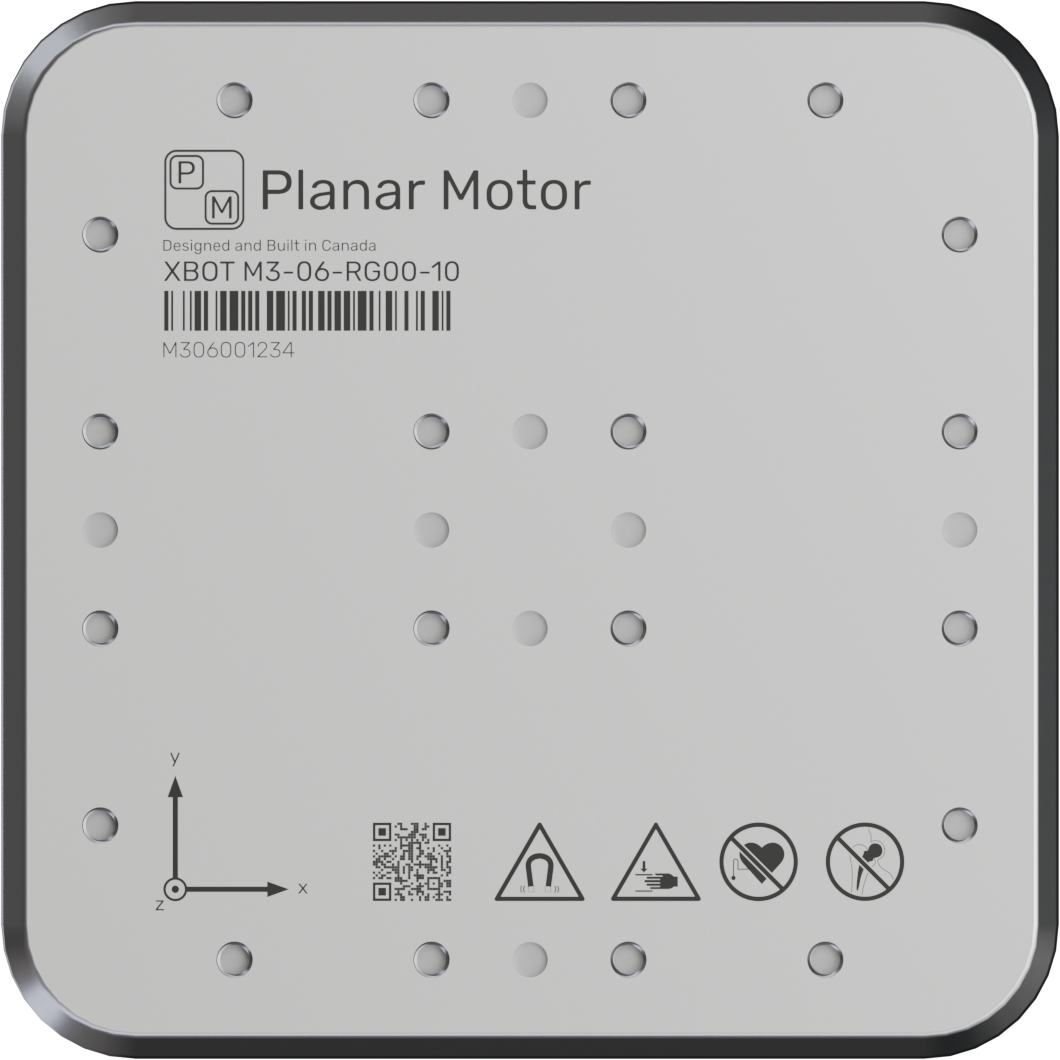

M3-06-RG00-10 |
|
Description |
XBot (Mover) 1 micron repeatability typ. Absolute traceability |
|
Dimensions |
118.1 x 118.1 x 8.5 mm |
|
Payload |
0.6 kg |
|
Absolute ID |
Integrated |
|
Mechanical CAD data |
|
|
XBot Conditions |
|
|
Temperature |
|
|
Operating |
5°C to 70°C |
|
Relative Humidity |
|
|
Operating |
0% to 100% |
|
Ambient Conditions |
|
|
Temperature |
|
|
Storage / Transport |
-25°C to 70°C |
|
Relative Humidity |
|
|
Storage / Transport |
0% to 100% |
|
Mechanical properties |
|
|
Dimensions |
|
|
Length |
118.1 mm |
|
Width |
118.1 mm |
|
Height |
8.5 mm |
|
Weight |
0.56 kg |
|
Material |
300-series stainless steel |
|
Hygienic |
No |
|
Autoclave safe |
No |
|
Surface Roughness |
Ra < 3.2 µm |
|
Payload Mounting Holes |
20 x M4x0.7* |
|
Payload Locating Holes |
8 x Ø4 mm dowel holes* |
|
Max. Torque on Threads |
2.5 Nm (4 mm minimum engagement) |
* Do not use magnetic screws on these holes as it may hinder performance.
