The PMC can be powered with a standard 24V DC power supply used in control cabinet.

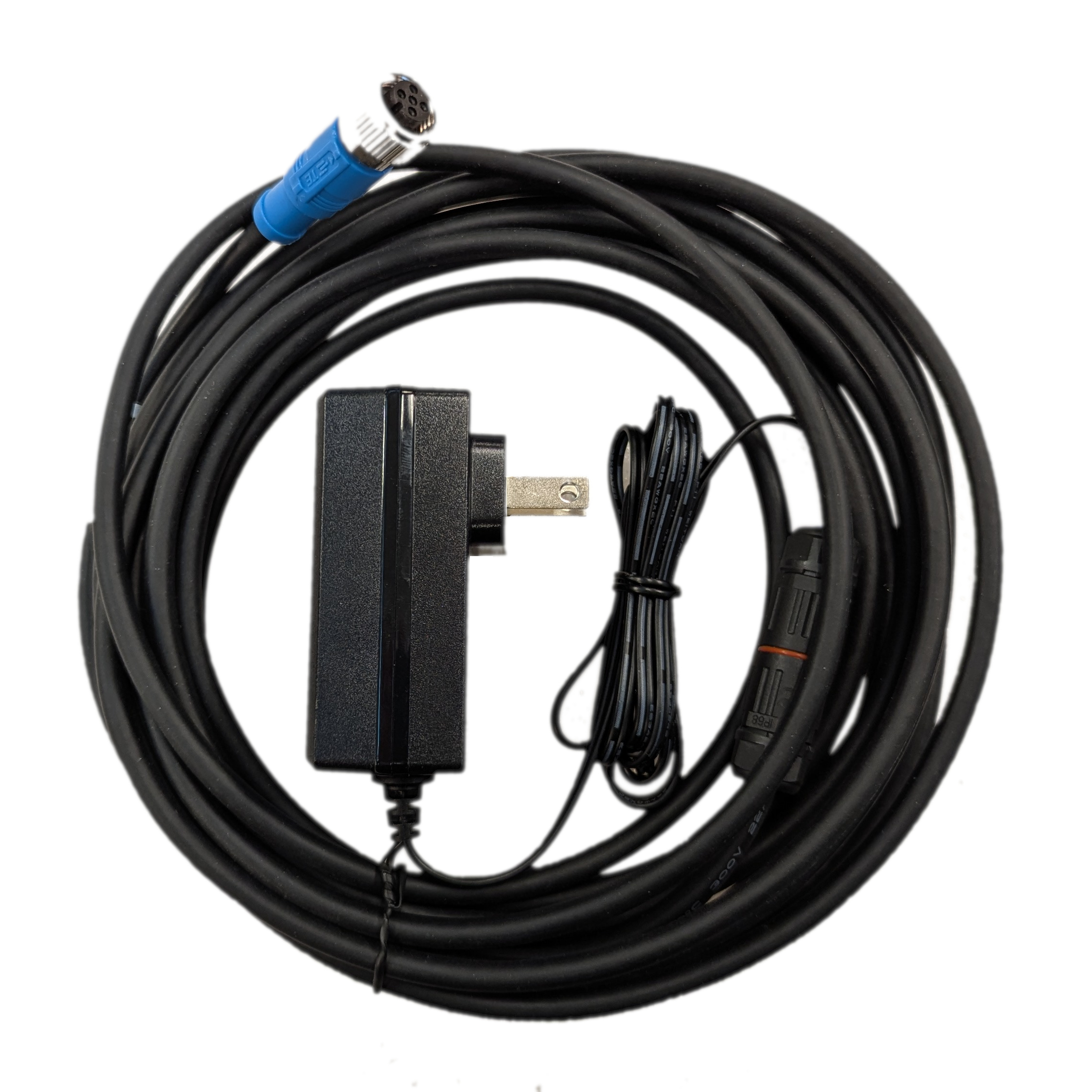

For prototype purpose, we also provide PMC power supply PS-0025-XX that can be directly plugged into a wall outlet, where XX are two-letter code standing for plug type. When customers order a PMC power supply PS-0025-XX, it will be pre-wired with PMC power cable. The power supply can be provided with four major plug types to match the environment. Contact the manufacturer if you require a wall outlet power adaptor with other connector types.
|
Options |
|
|---|---|
|
Model No. |
Description |
|
PS-0025-XX |
-XX options for AC plug type for specified country also provided; options include:
|
Technical Details (North America)
|
Input |
|
|
Input Voltage |
90 VAC - 264 VAC |
|
Input Frequency |
47 Hz to 63 Hz |
|
No Load Input Power |
<0.1 W |
|
Input Current |
1.2 A Max. |
|
Leakage Current |
0.25 mA Max. |
|
Input Connection |
US |
|
Output |
|
|
Output Voltage Range |
24 VDC |
|
Output Current Range |
1.25 A, 30 W Max |
|
Min. Load |
No min. load required |
|
Line Regulation |
± 1% at rated load across input voltage range |
|
Load Regulation |
± 5% |
|
Ripple & Noise |
100 mVp-p Max. |
|
Overvoltage Protection |
Auto recovery |
|
Overload Protection |
Auto recovery |
|
Short Circuit Protection |
Auto recovery |
|
General |
|
|
Insulation Resistance |
50 MΩ Min. |
|
Efficiency |
Level VI compliant |
|
MTBF |
50,000 hrs to MIL-HDBK-217F at +25 °C |
|
Operating temp. Range |
-25 °C to 70 °C |
|
Environmental |
|
|
Operating Temperature |
0 °C to 40 °C |
|
Operating Humidity |
5% - 95% RH, non-condensing |
|
Storage Temperature |
-20 °C to 80 °C |
|
EMC & Safety |
|
|
Safety Approvals |
UL: UL62368-1 cUL: cUL62368-1 |
|
EMC Approvals |
FCC |
|
Dimensions and Notes |
|
|
Size |
71.2 mm x 43.2 mm x 29.5 mm |
|
Weight |
150 g |
|
Connectors |
AC input, US 2-prong inlet plug DC output, standard 5.5 x 2.1 x 9.5mm corded dc output plug or per customer specification. |
|
Cord Length |
7000 mm ± 30 mm |
Technical Details (Europe)
|
Input |
|
|
Input Voltage |
90 VAC - 264 VAC |
|
Input Frequency |
47 Hz to 63 Hz |
|
No Load Input Power |
<0.075 W |
|
Input Current |
0.58 A Max. |
|
Leakage Current |
0.25 mA Max. |
|
Input Connection |
Europe |
|
Output |
|
|
Output Voltage |
24 VDC |
|
Output Current Range |
1.25 A, 30 W Max |
|
Load Regulation |
± 5% |
|
Ripple & Noise |
240 mVp-p Max. |
|
Overvoltage Protection |
Output shutdown (45 Vdc) |
|
Overload Protection |
Output shut down, auto recovery (2.5 A) |
|
Short Circuit Protection |
Output shut down, auto recovery |
|
General |
|
|
Insulation Resistance |
50MΩ Min. |
|
Isolation Voltage |
3000 Vac, input to output at 10 mA for 1 minute |
|
MTBF |
300,000 hrs as per Telcordia SR-332, 25°C |
|
Environmental |
|
|
Operating Temperature |
0 °C to 40 °C |
|
Operating Humidity |
20% to 80% RH, non-condensing |
|
Storage Temperature |
-20 °C to 0 °C |
|
Storage Humidity |
10% to 90% RH, non-condensing |
|
EMC & Safety |
|
|
Safety Approvals |
EN 62368 |
|
EMC Approvals |
CE |
|
RoHS |
2011/65/EU |
|
Dimensions and Notes |
|
|
Size |
72 mm x 34 mm x 90 mm |
|
Weight |
170 g |
|
Connectors |
Europe. |
|
Cord Length |
7000 mm ± 30 mm |
