General Data |
|
|
Model No |
M4-24-SD00-11 |
|
Description |

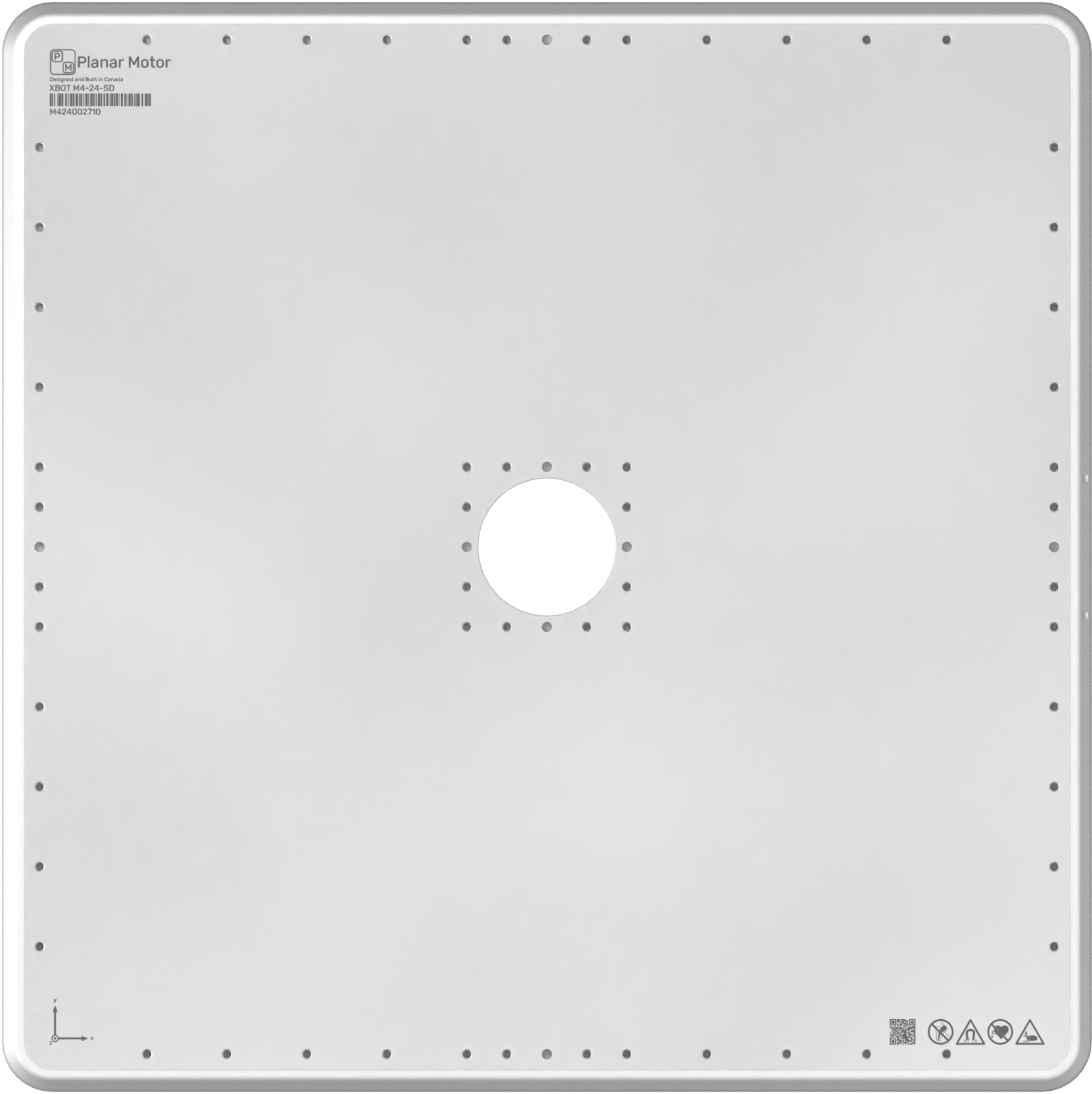

XBot (Mover) 10 micron repeatability typ. Absolute traceability |
|
Dimensions |
440 x 440 x 13 mm |
|
Payload |
20.0 kg |
|
Absolute ID |
Integrated |
|
Mechanical CAD data |
|
|
XBot Conditions |
|
|
Temperature |
|
|
Operating |
5°C to 70°C |
|
Relative Humidity |
|
|
Operating |
5% to 85%, non-condensing |
|
Ambient Conditions |
|
|
Temperature |
|
|
Storage / Transport |
-25°C to 70°C |
|
Relative Humidity |
|
|
Storage |
5% to 85% |
|
Transport |
95% at 40°C |
|
Mechanical properties |
|
|
Dimensions |
|
|
Length |
436 mm |
|
Width |
436 mm |
|
Height |
13.35 mm |
|
Weight |
13 kg |
|
Frame Material |
Anodized aluminum |
|
Bottom Cover Material |
Polycarbonate |
|
Bumper Material |
Anodized aluminum |
|

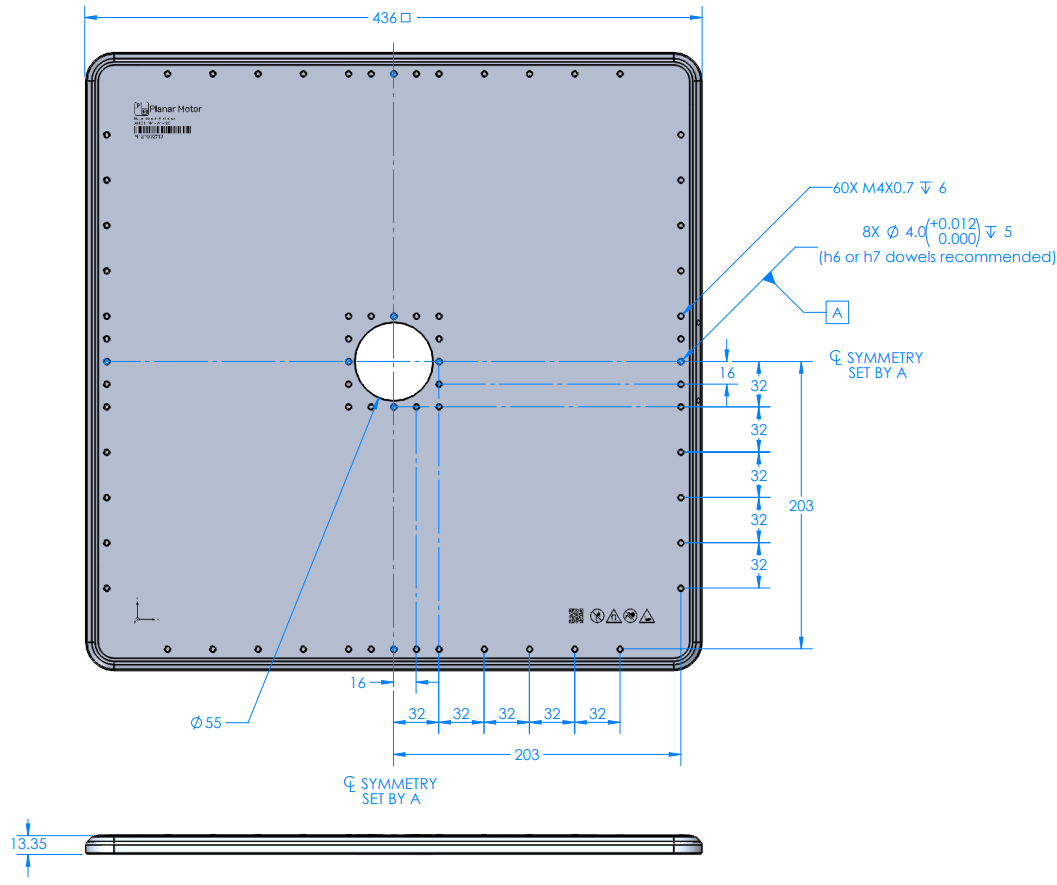

Payload Mounting Holes |
60 x M4x0.7* |
|
Payload Locating Holes |
8 x Ø4 mm dowel holes* |
|
Max. Torque on Threads |
2.5 Nm (4 mm minimum engagement) |
* Do not use magnetic screws / dowels on these holes as it may hinder performance.
