Use this function block to read the configuration on the PMC.
The output (IN/OUT) of this function is the readout of the standard XML configuration file. See Loading and Saving Configuration
Fieldbus Interface

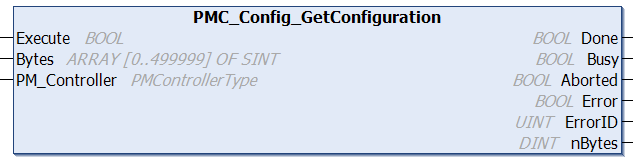

PMC_Config_GetConfiguration
Inputs
Name | Data Type | Description |
|---|
Execute | BOOL | Execution of the function block begins on a rising edge of this input. |
Bytes | SINT[0..499999] | Byte array used to store the read configuration. This is an IN/OUT variable. |
PM_Controller | PMControllerType | Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
Name | Data Type | Description |
|---|
Done | BOOL | Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE) |
Busy | BOOL | Function block is active and must continue to be called. |
Aborted | BOOL | Command aborted by another command. |
Error | BOOL | If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
ErrorID | UINT | 0x0: All OK. Otherwise, please see PMC Reply Codes. |
nBytes | DINT | The size of the configuration file, in bytes |
Conditions
Operating Conditions |
|---|
Preconditions | None |
Postconditions | Reads the current PMC configuration into the byte array |
Description
Use this function block to read the configuration on the PMC.
The output (IN/OUT) of this function is the readout of the standard XML configuration file. See Loading and Saving Configuration
