Standard 4 Series XBots

XBot type

Nominal Dimensions

Payload

CAD Downloads

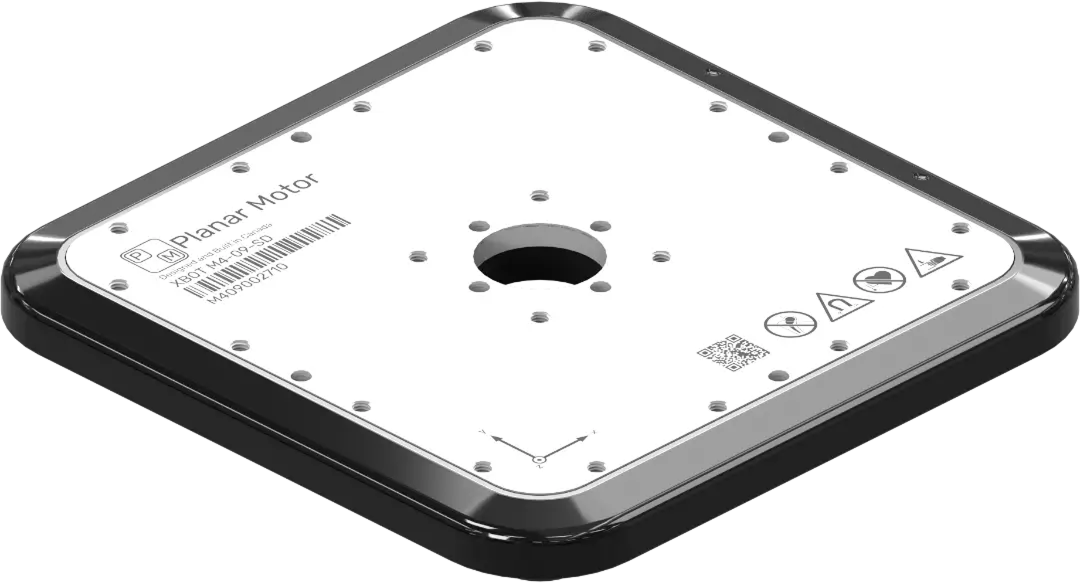

M409-spec 1.png

M4-09-SD00-10

160 x 160 x 12 mm3

1.8 kg

2D / 3D

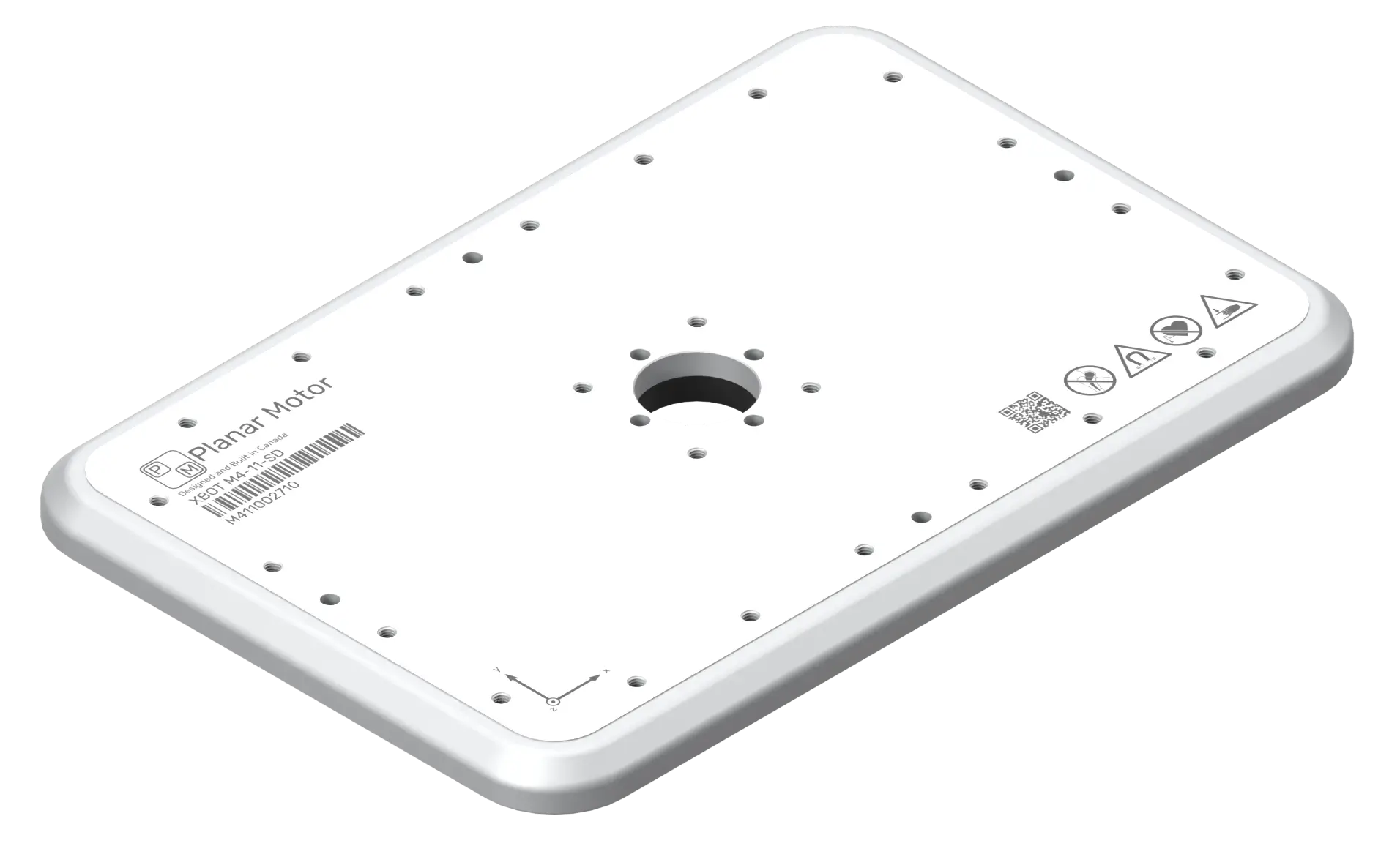

ISO M4-11.png

M4-11-SD00-11

240 x 160 x 12 mm3

3.0 kg

2D / 3D

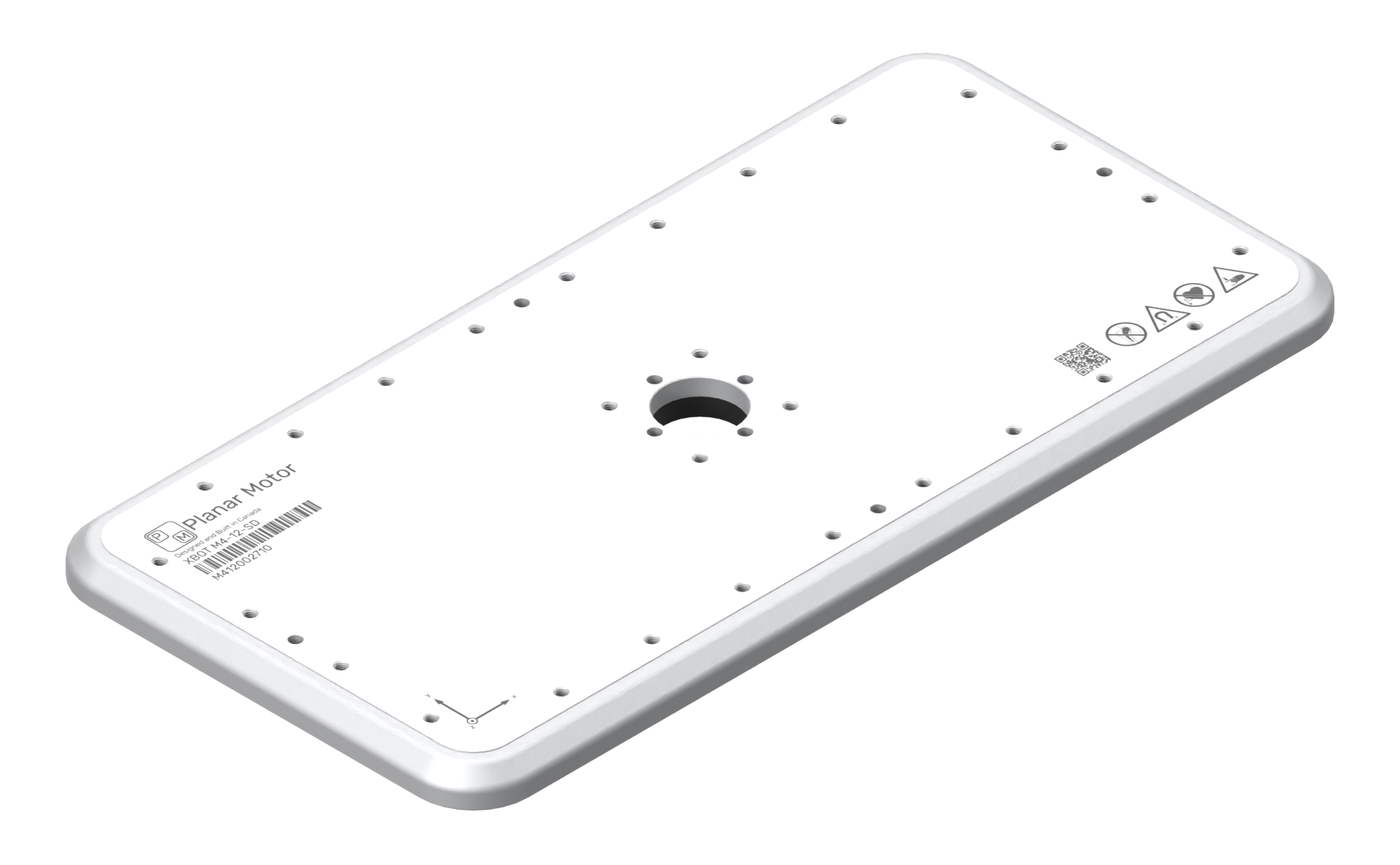

ISO M4-12.png

M4-12-SD00-11

320 x 160 x 12 mm3

4.2 kg

2D / 3D

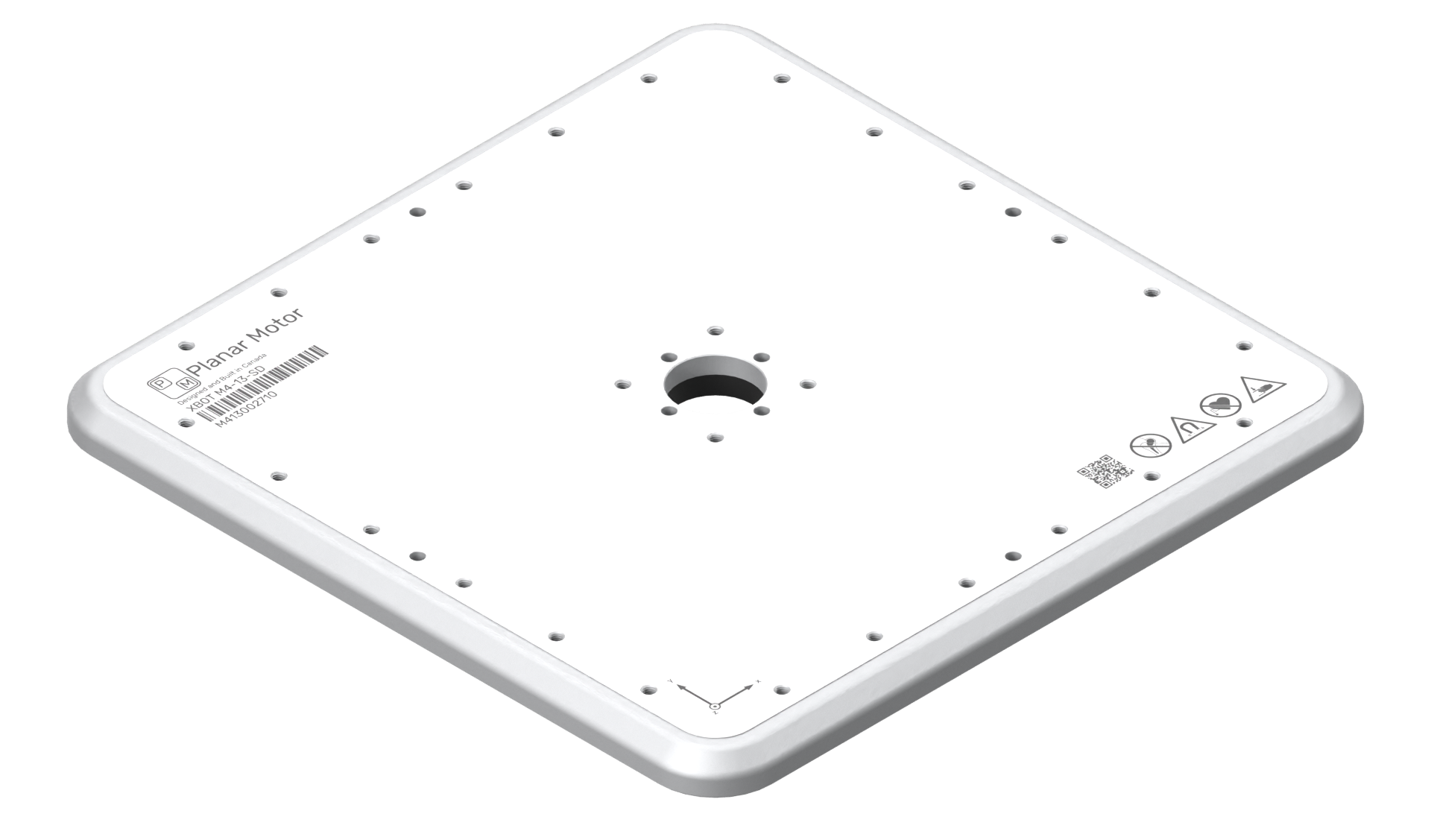

ISO M4-13.png

M4-13-SD00-11

240 x 240 x 12 mm3

5.0 kg

2D / 3D

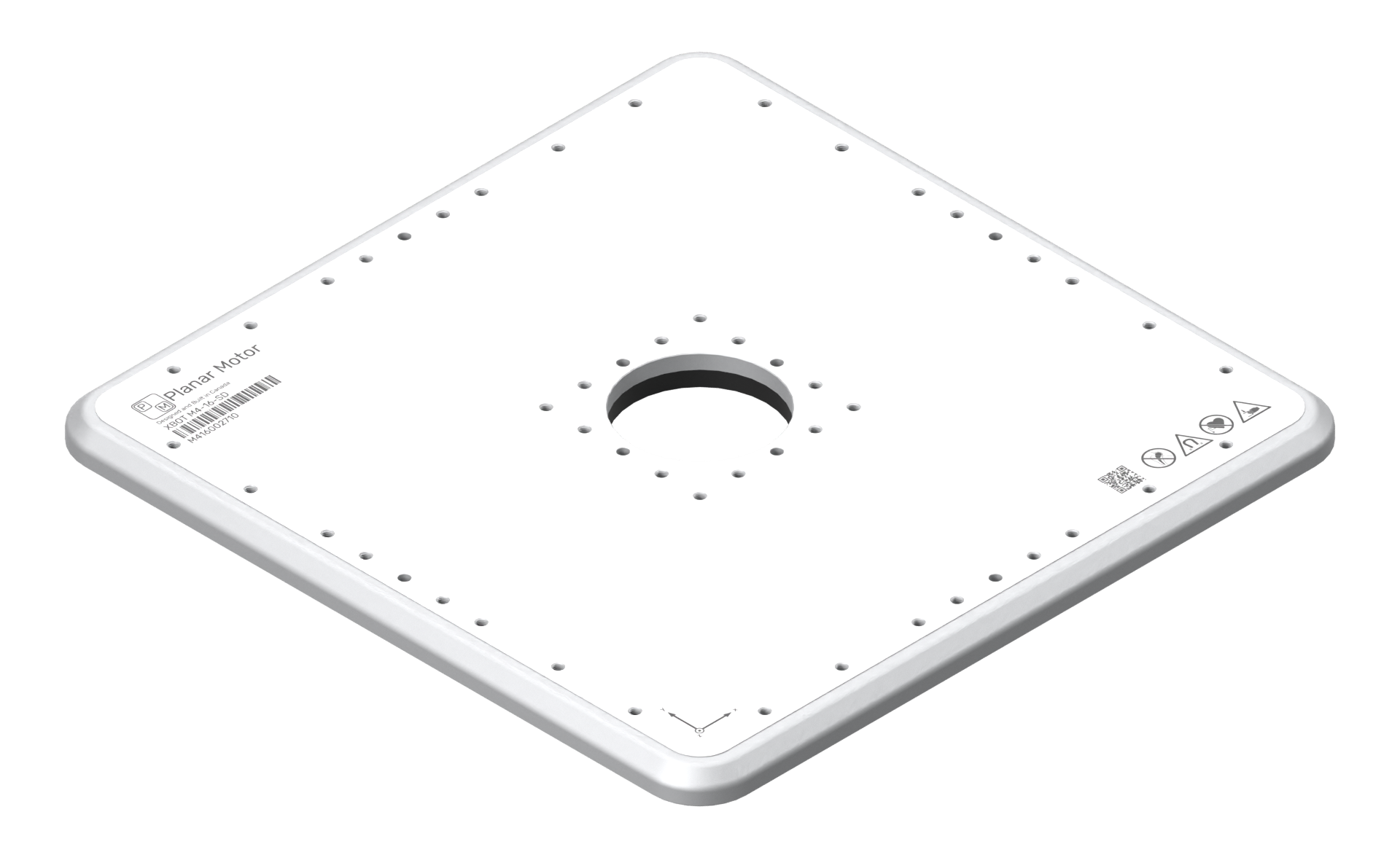

ISO M4-16.png

M4-16-SD00-11

280 x 280 x 12 mm3

7.0 kg

2D / 3D

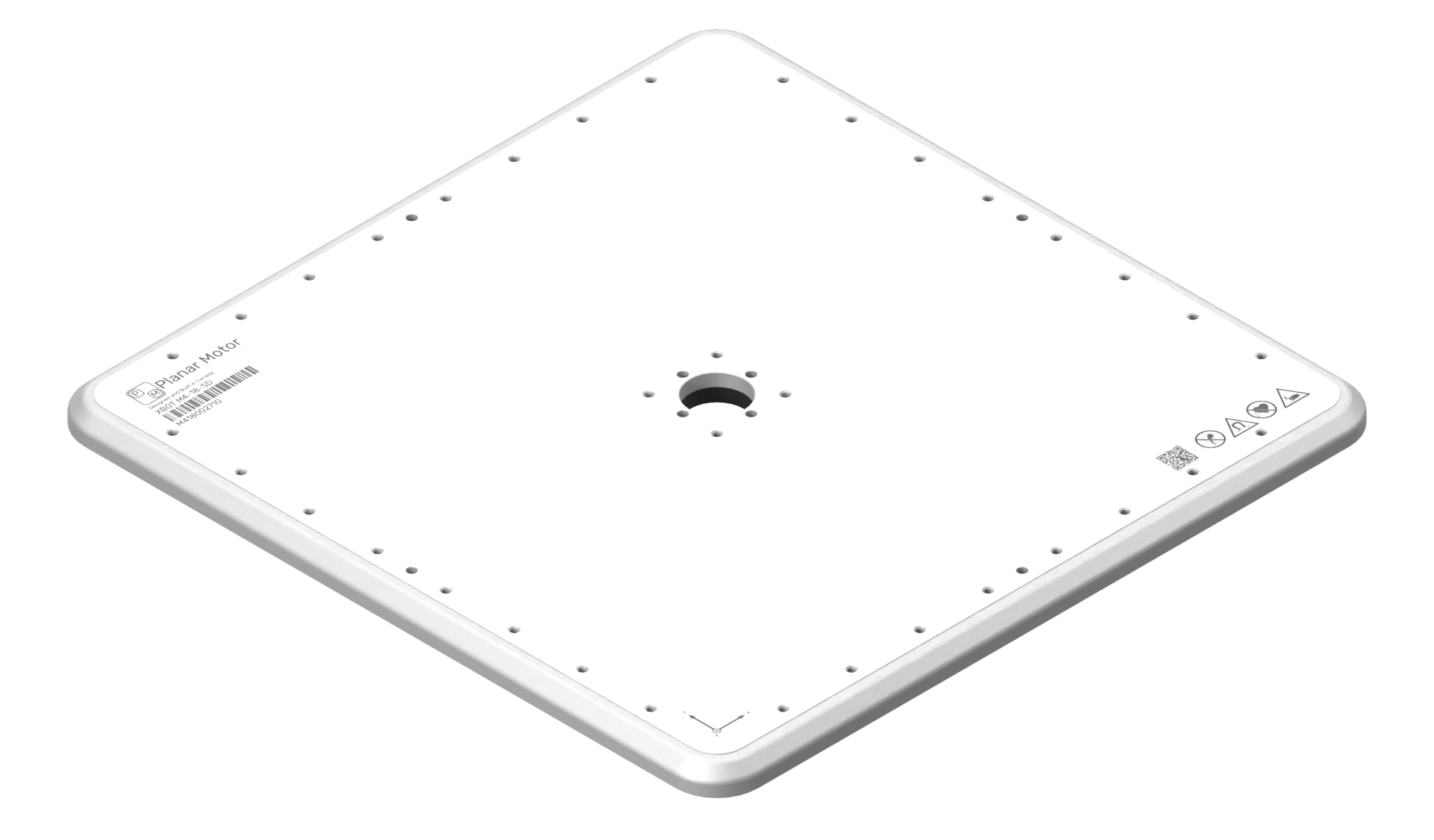

ISO M4-18.png

M4-18-SD00-11

320 x 320 x 12 mm3

10.0 kg

2D / 3D

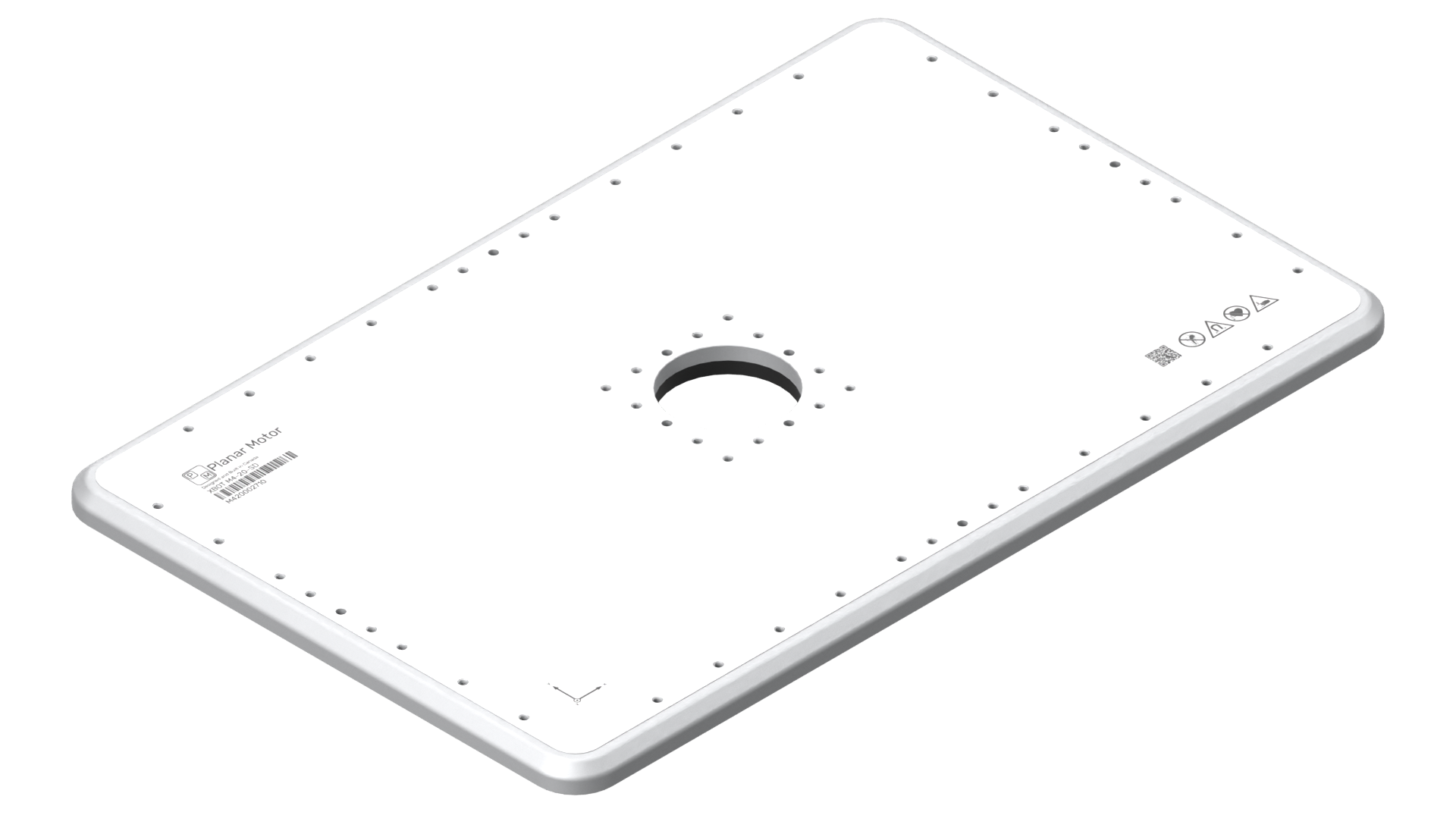

ISO M4-20.png

M4-20-SD00-11

440 x 280 x 13 mm3

12.0 kg

2D / 3D

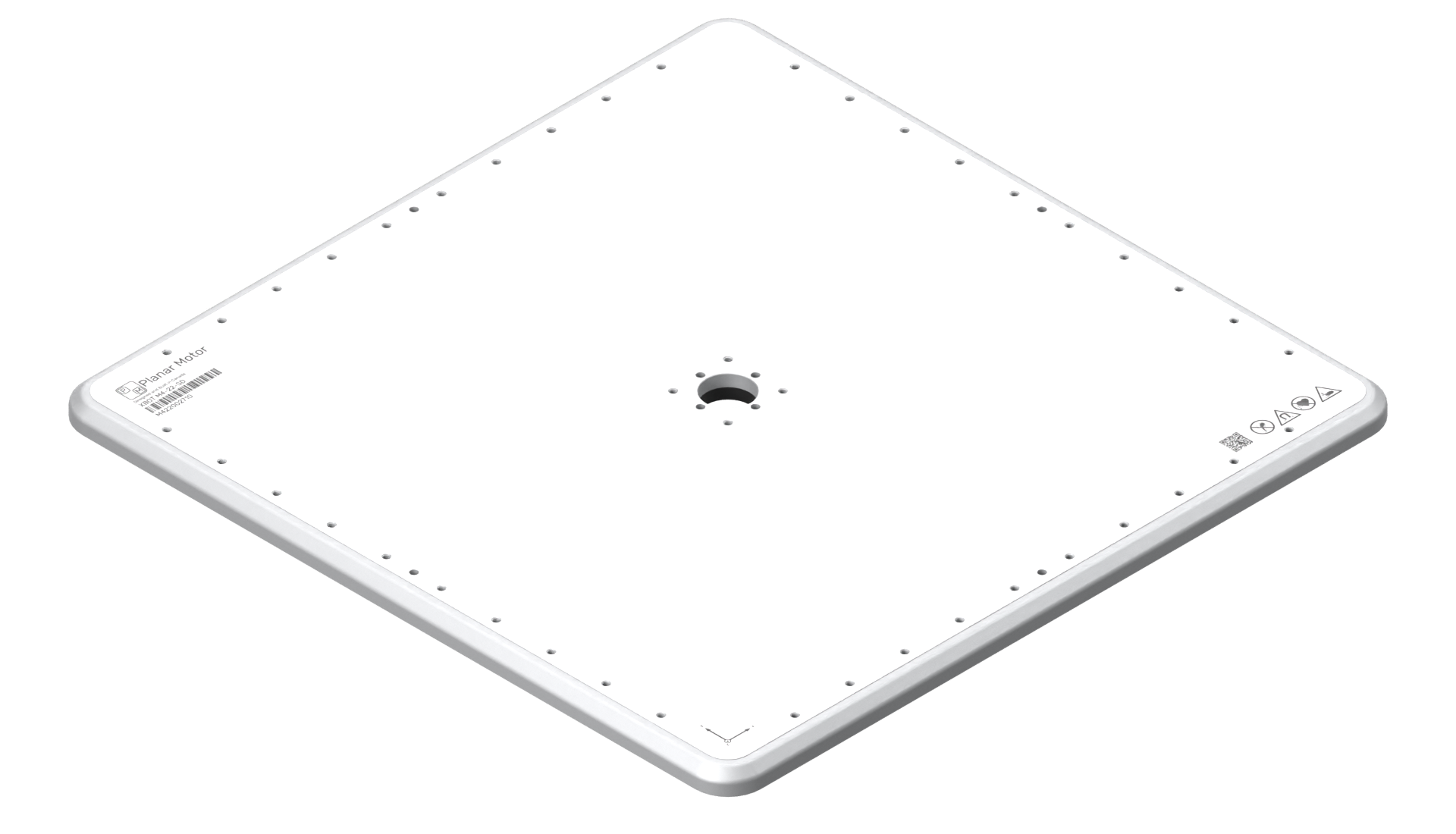

ISO M4-22.png

M4-22-SD00-11

400 x 400 x 13 mm3

16.0 kg

2D / 3D

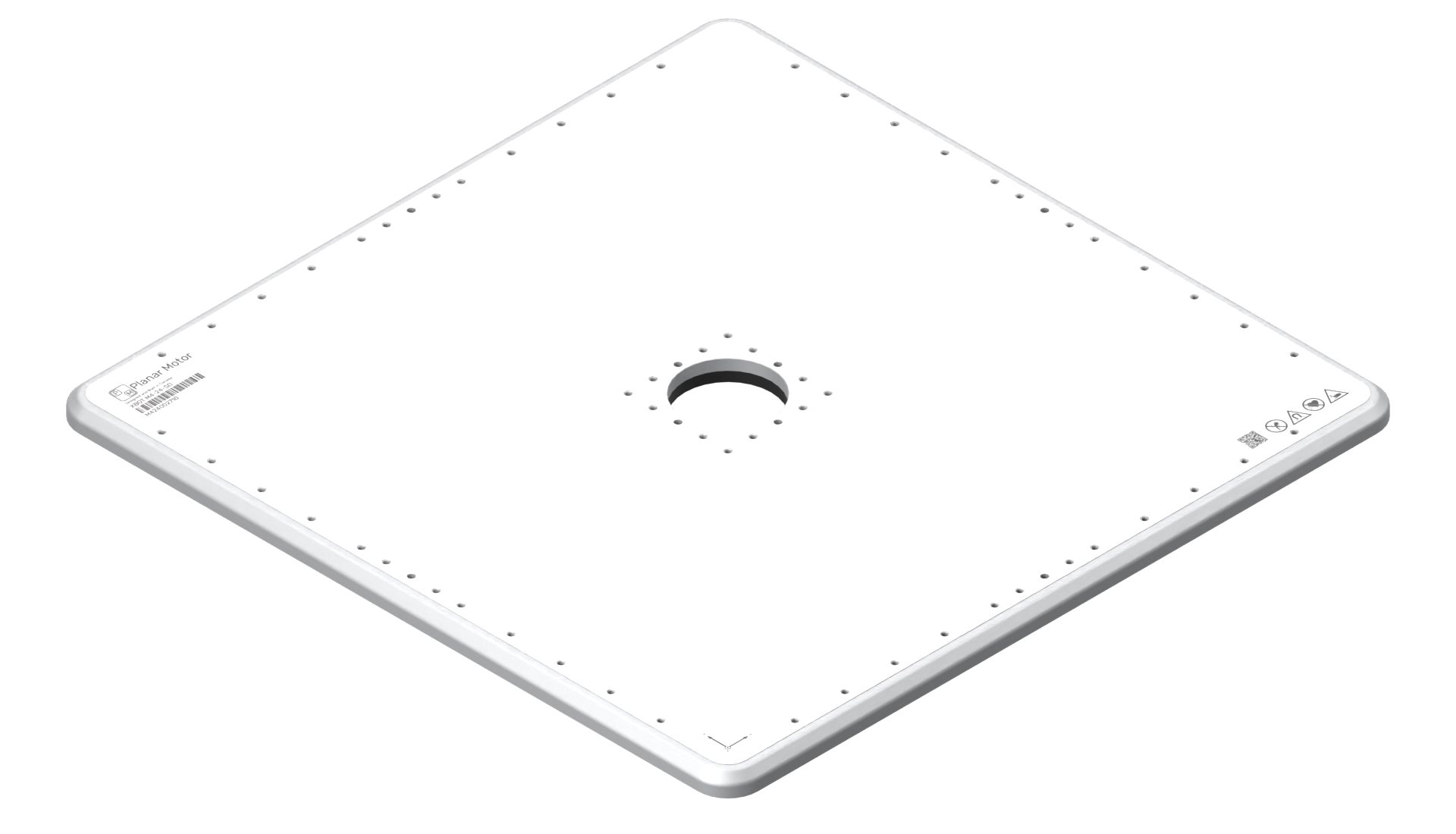

ISO M4-24.png

M4-24-SD00-11

440 x 440 x 13 mm3

20.0 kg

2D / 3D

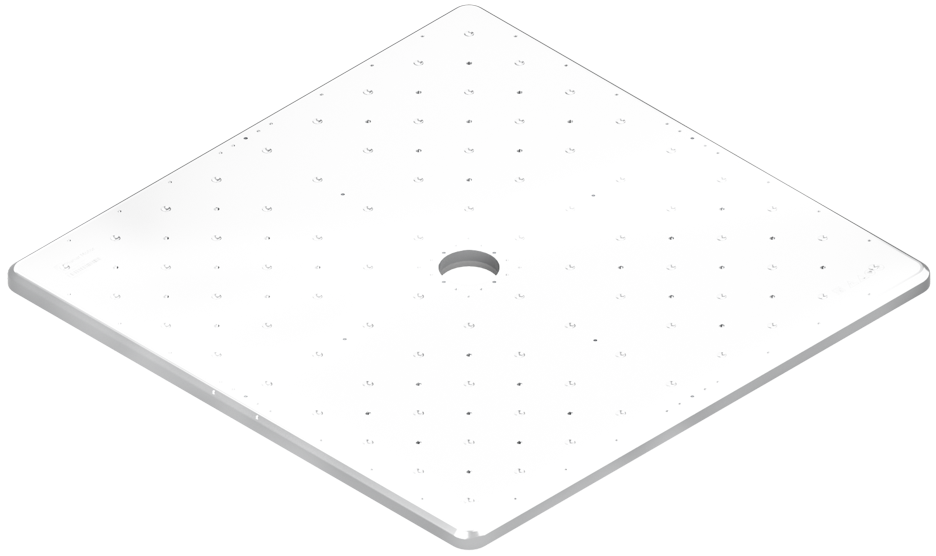

m4-33 iso.png


M4-33-SD00-11

600 x 600 x 18 mm3

40.0 kg

2D / 3D
