M3 XBots Magnetic Field Diagrams

M3-06-SD00-10

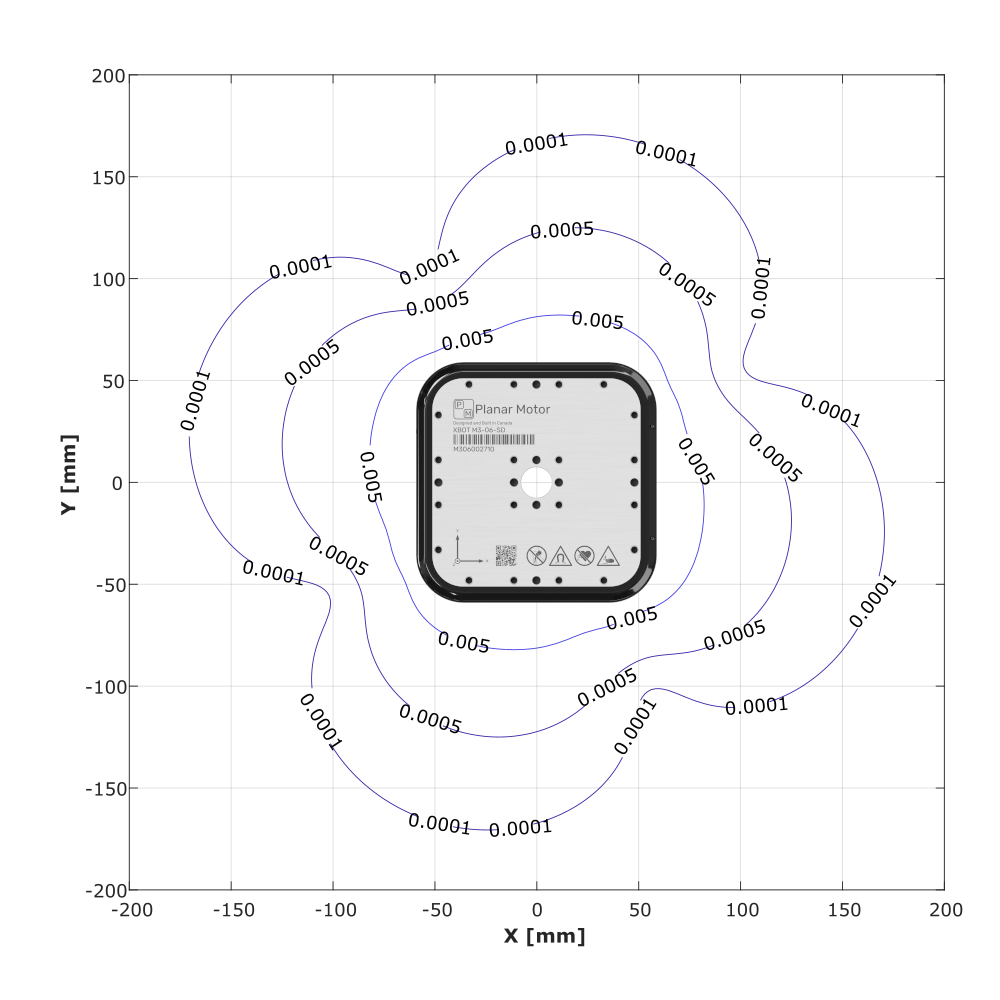

M3-06-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

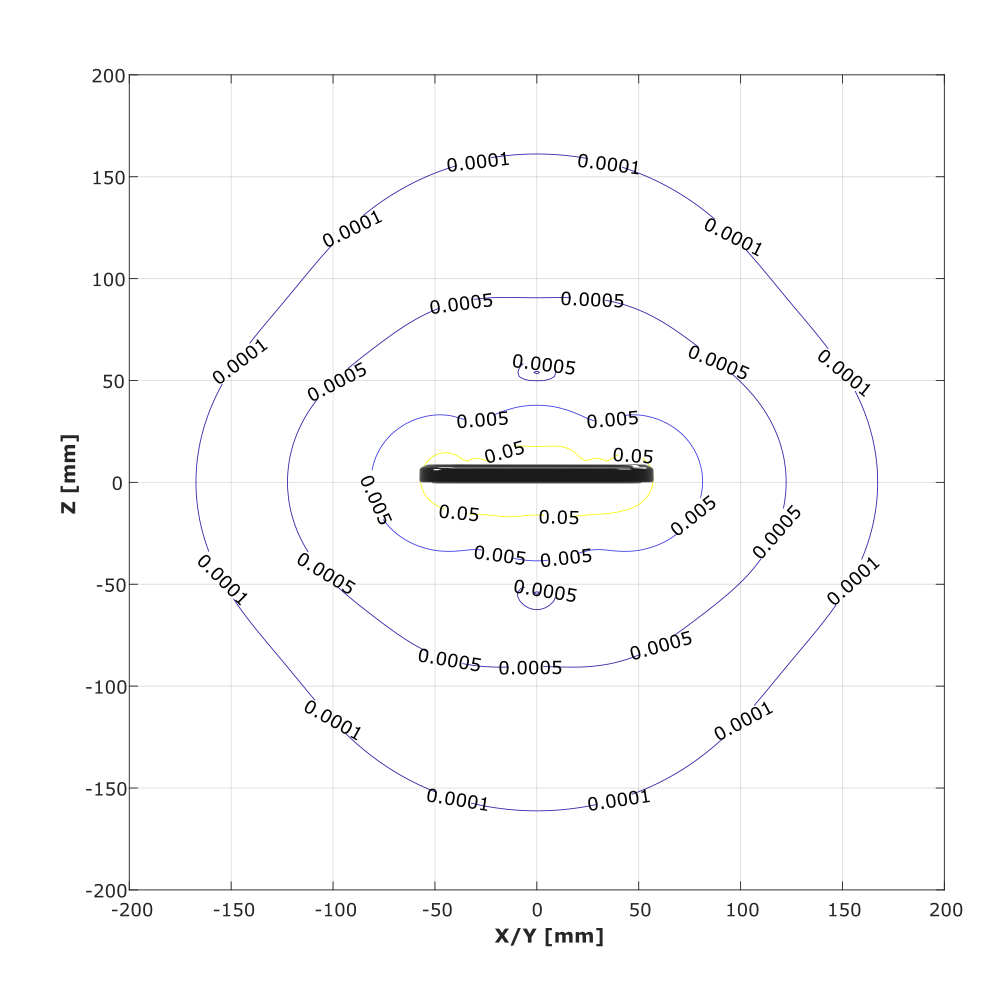

M3-06-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-08-SD00-10

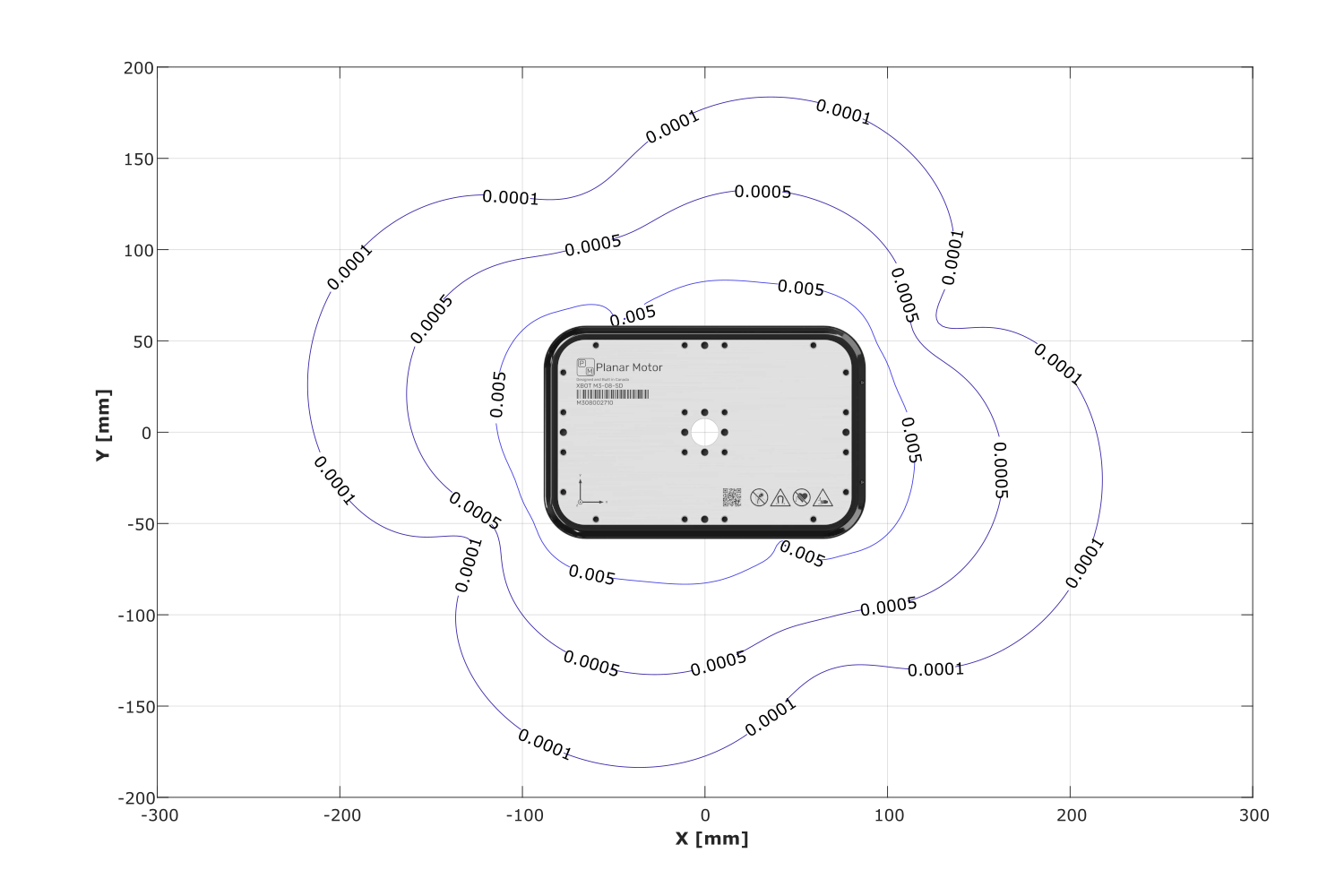

M3-08-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

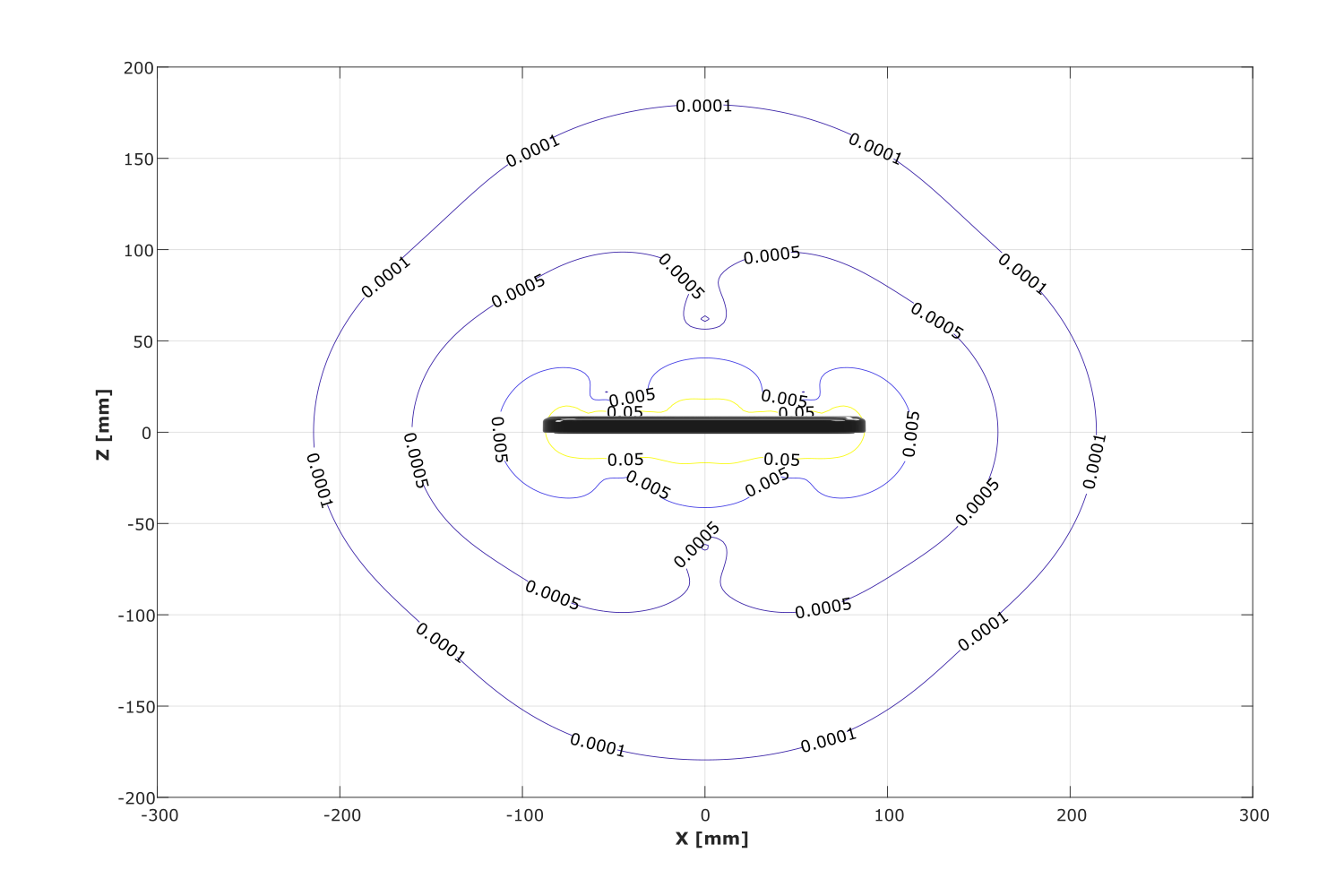

M3-08-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-09-SD00-10

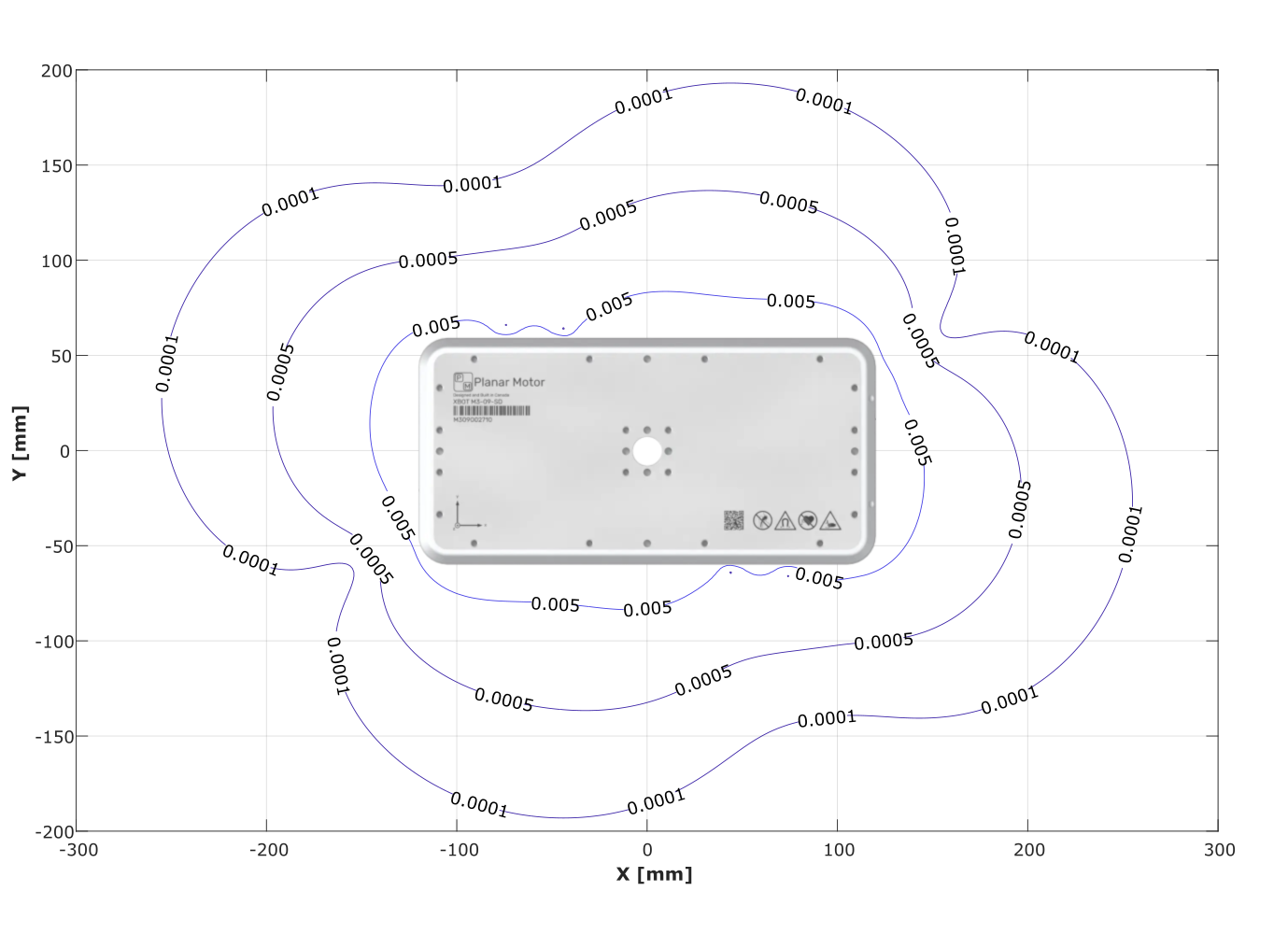

M3-09-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

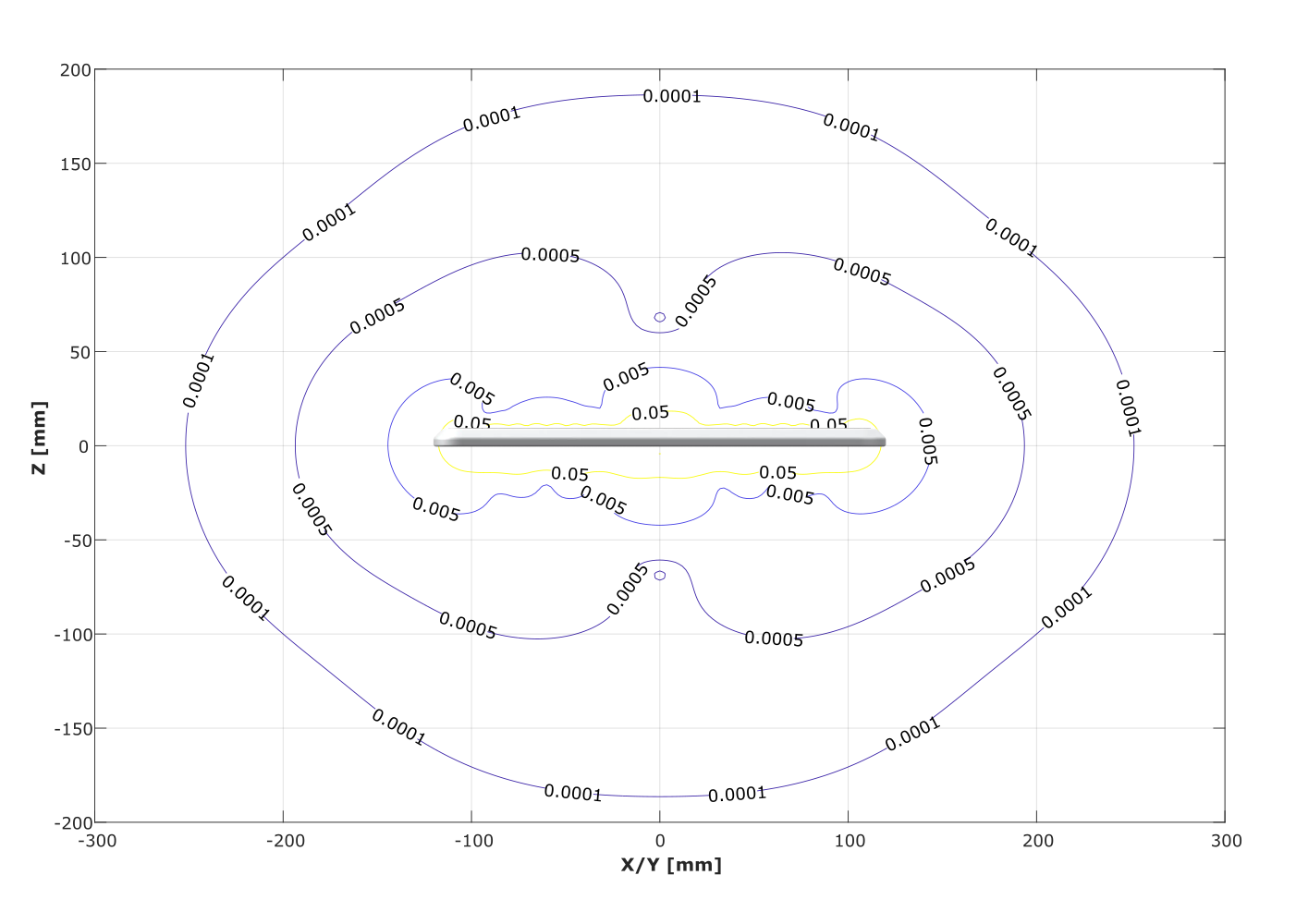

M3-09-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-10-SD00-10

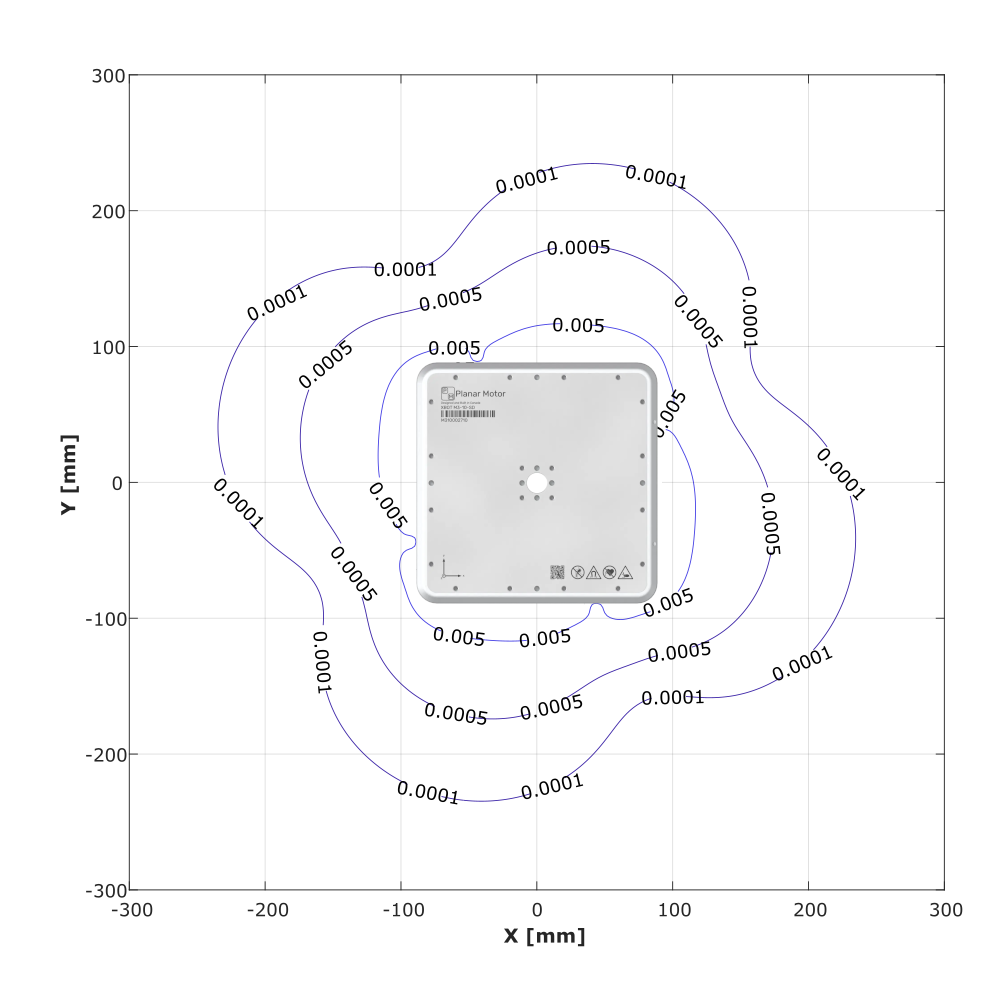

M3-10-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

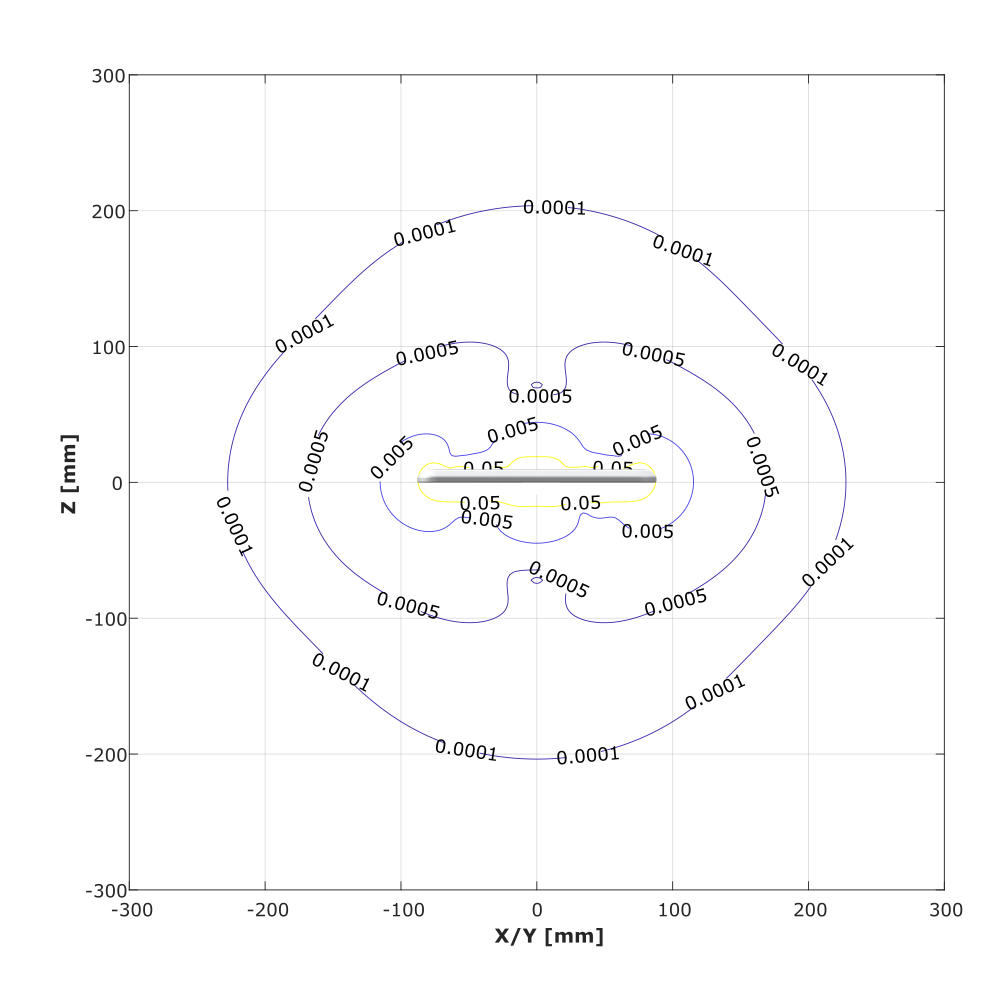

M3-10-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-12-SD00-10

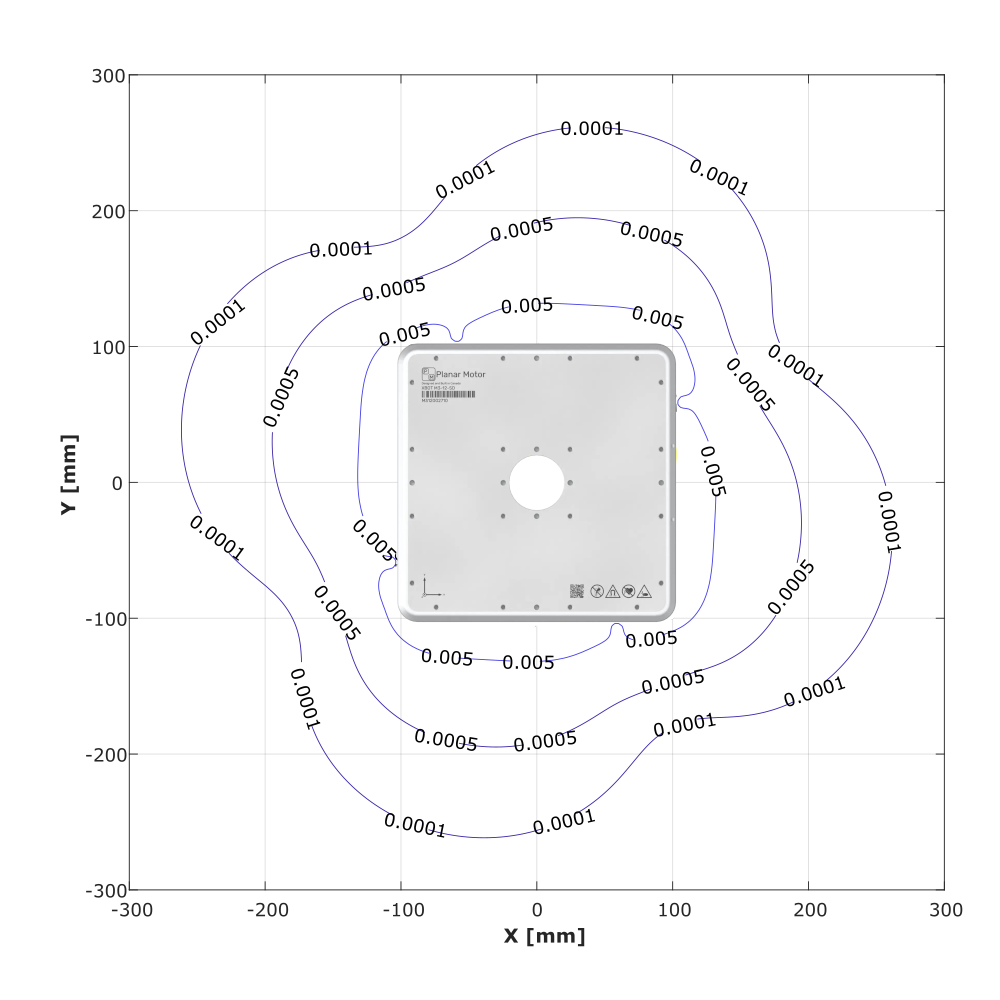

M3-12-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

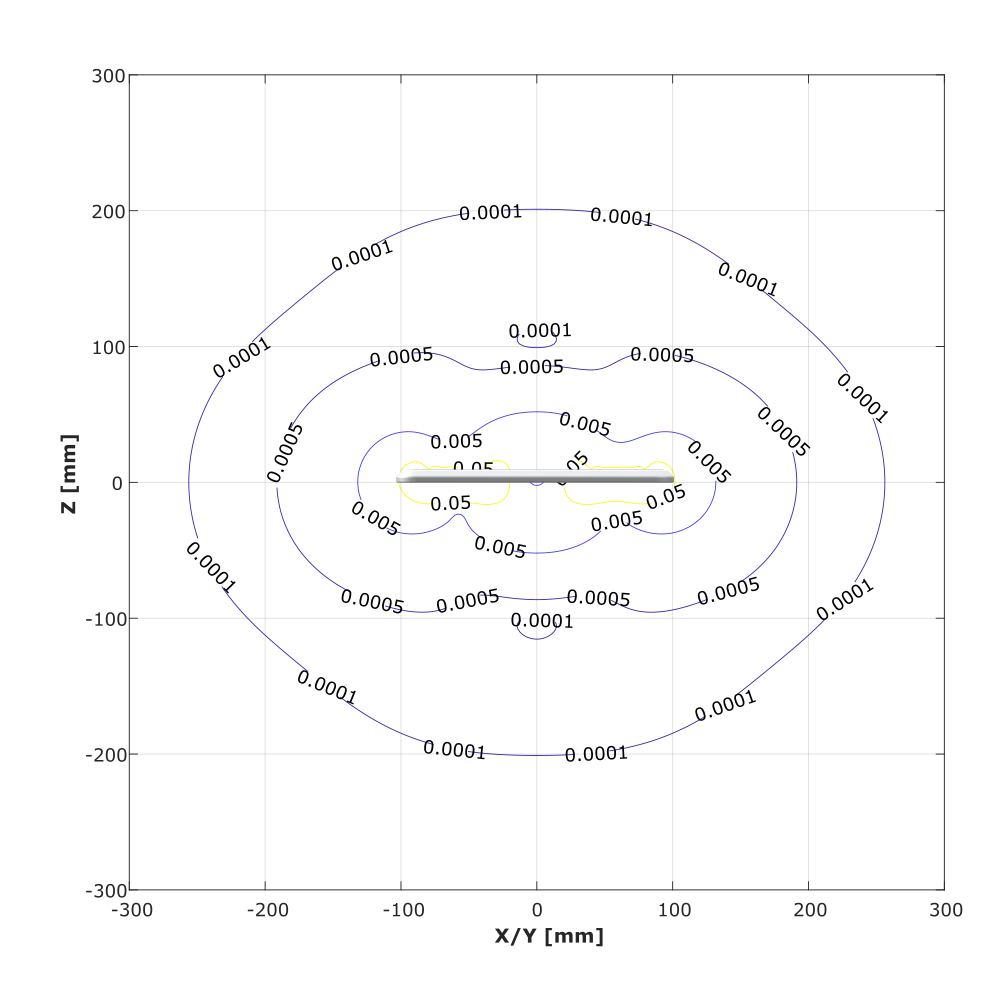

M3-12-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-13-SD00-10

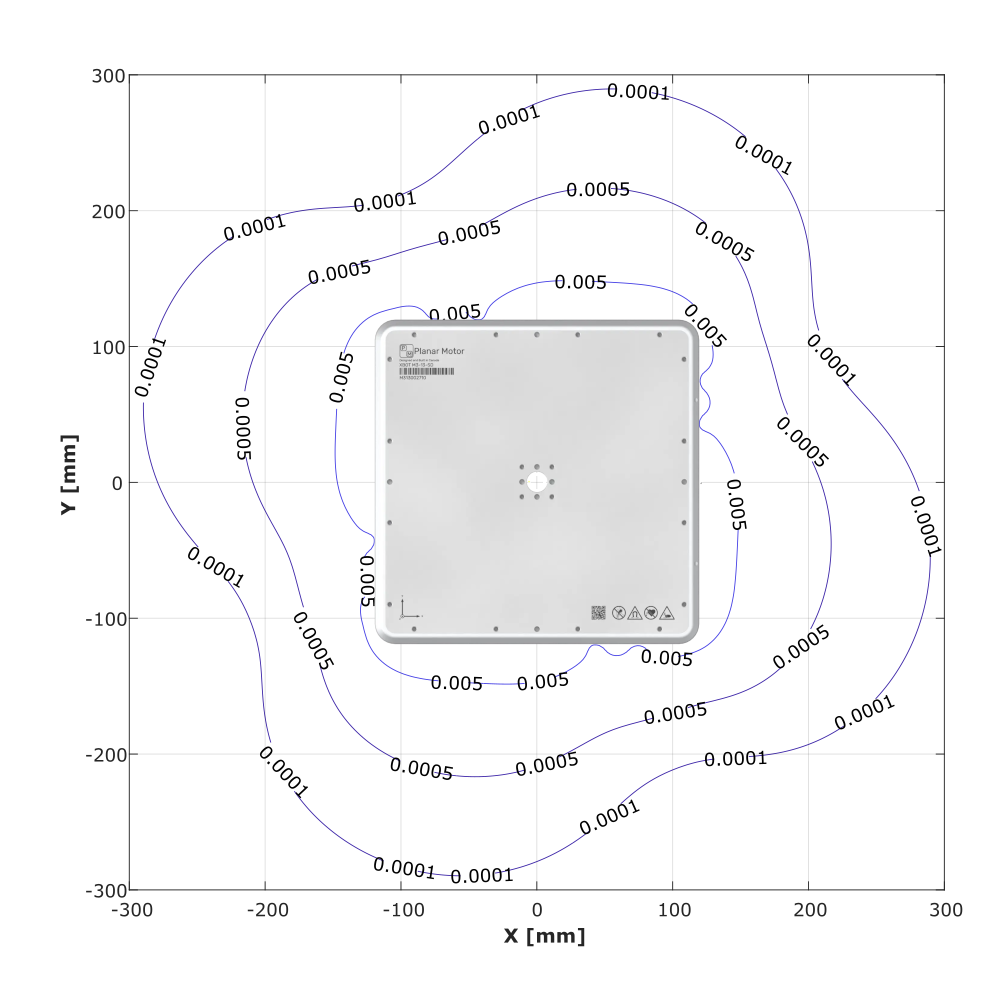

M3-13-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

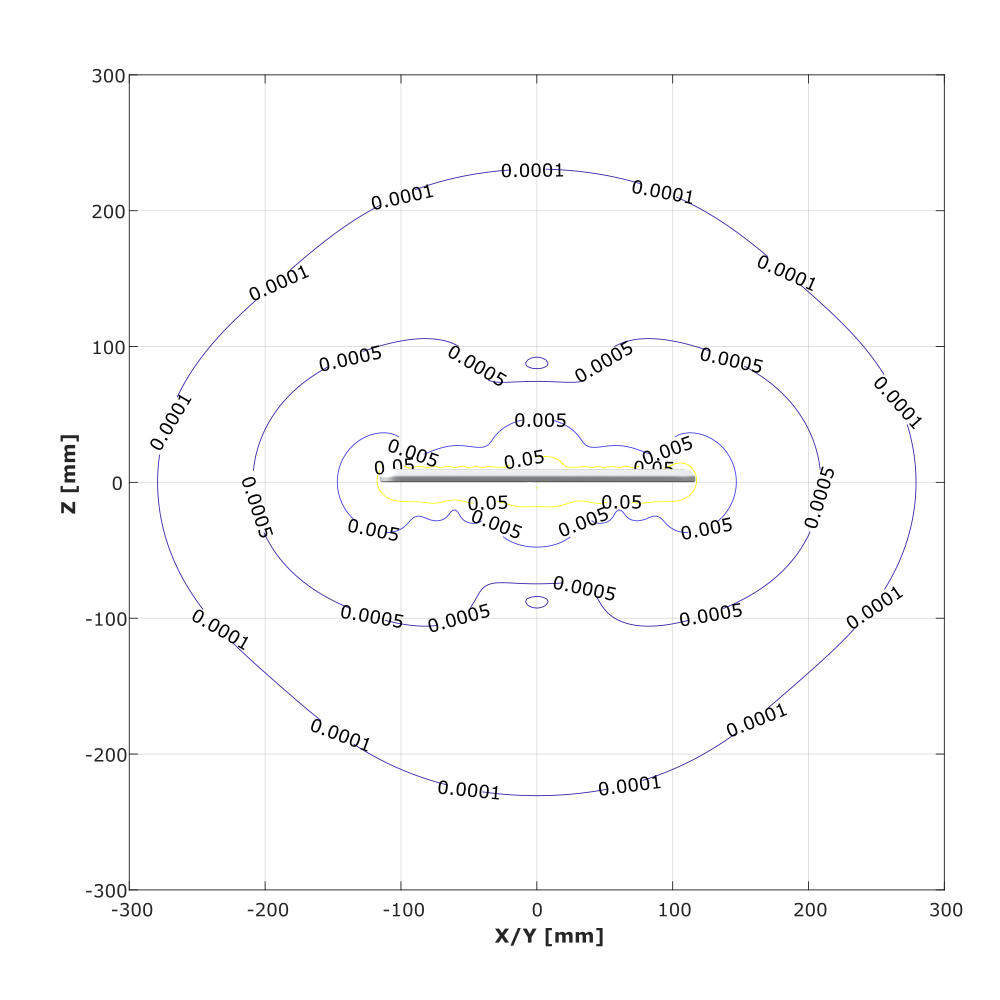

M3-13-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-15-SD00-10

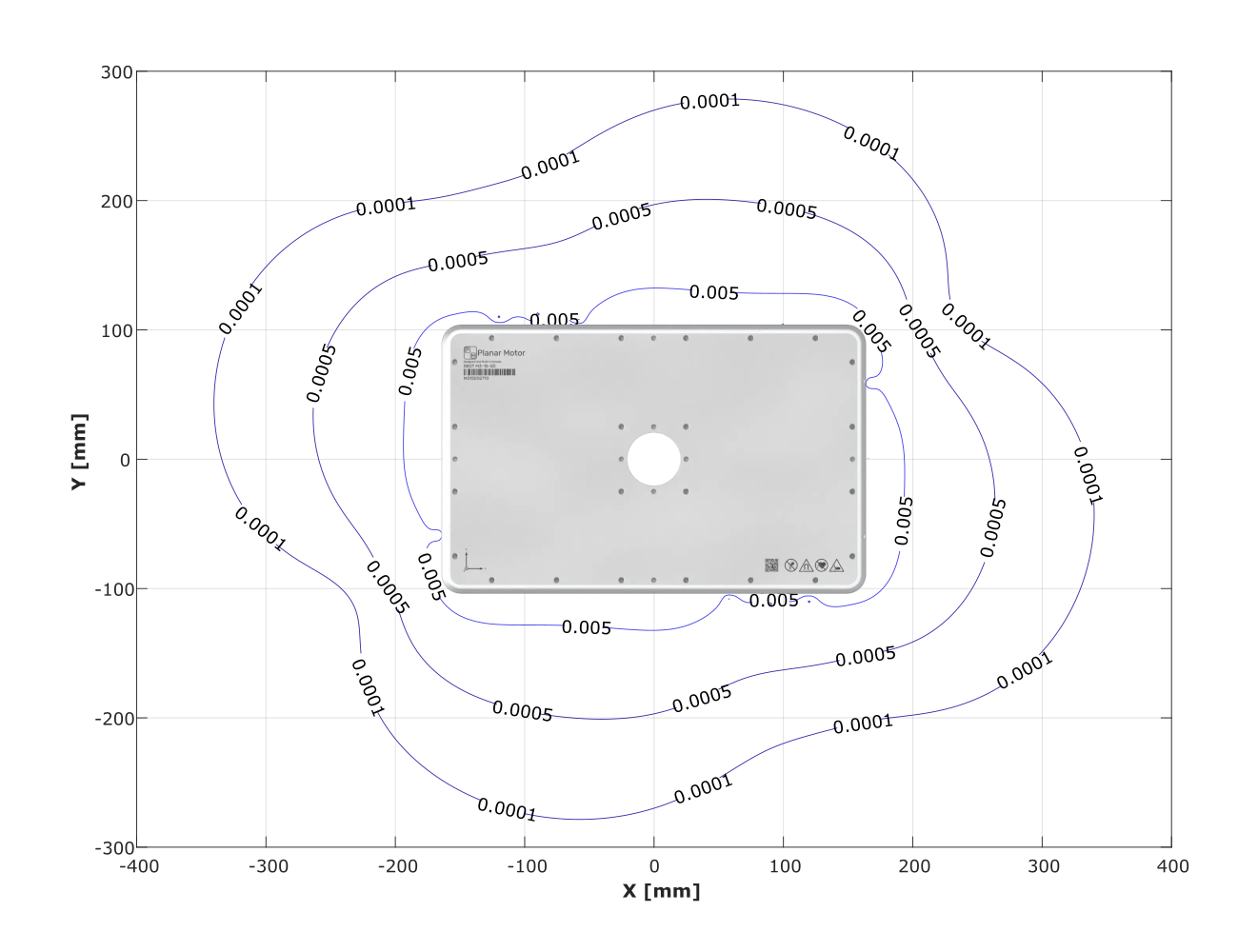

M3-15-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

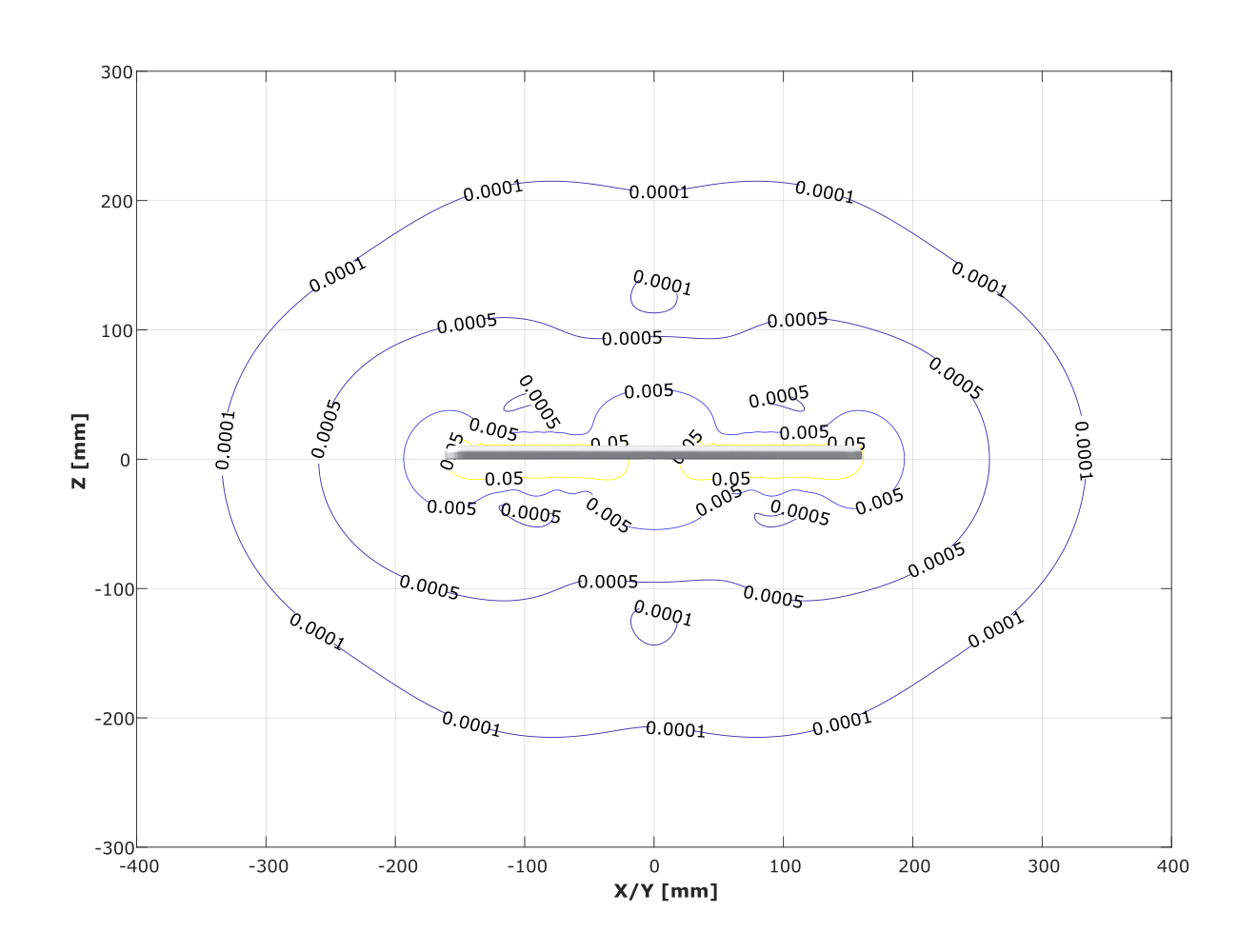

M3-15-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-17-SD00-10

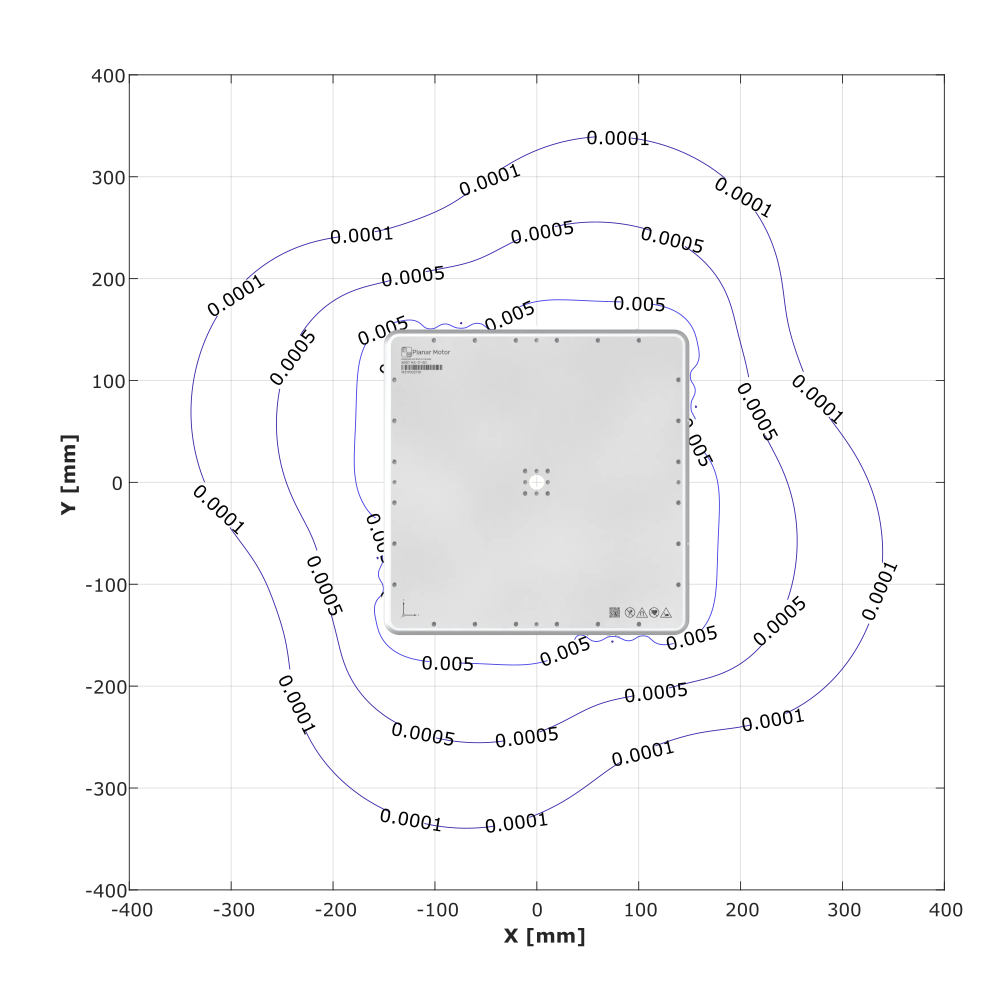

M3-17-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

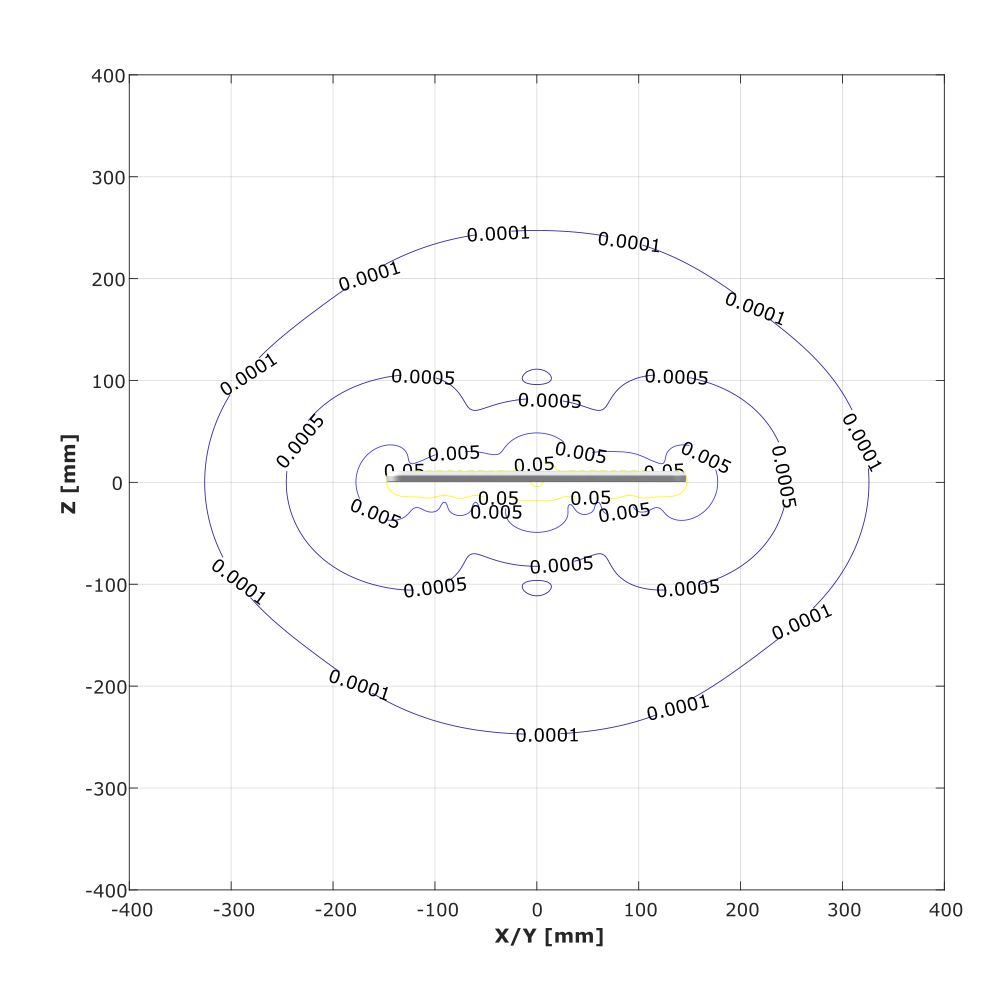

M3-17-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-18-SD00-10

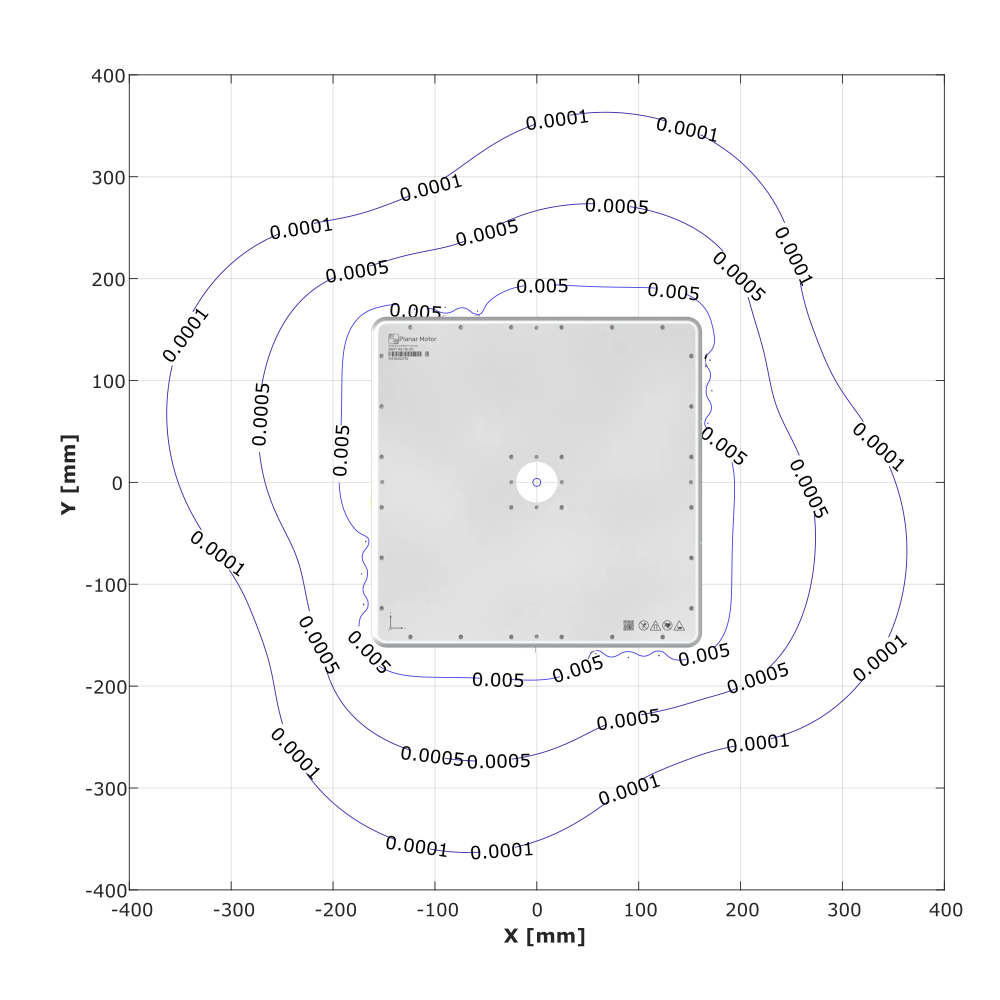

M3-18-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

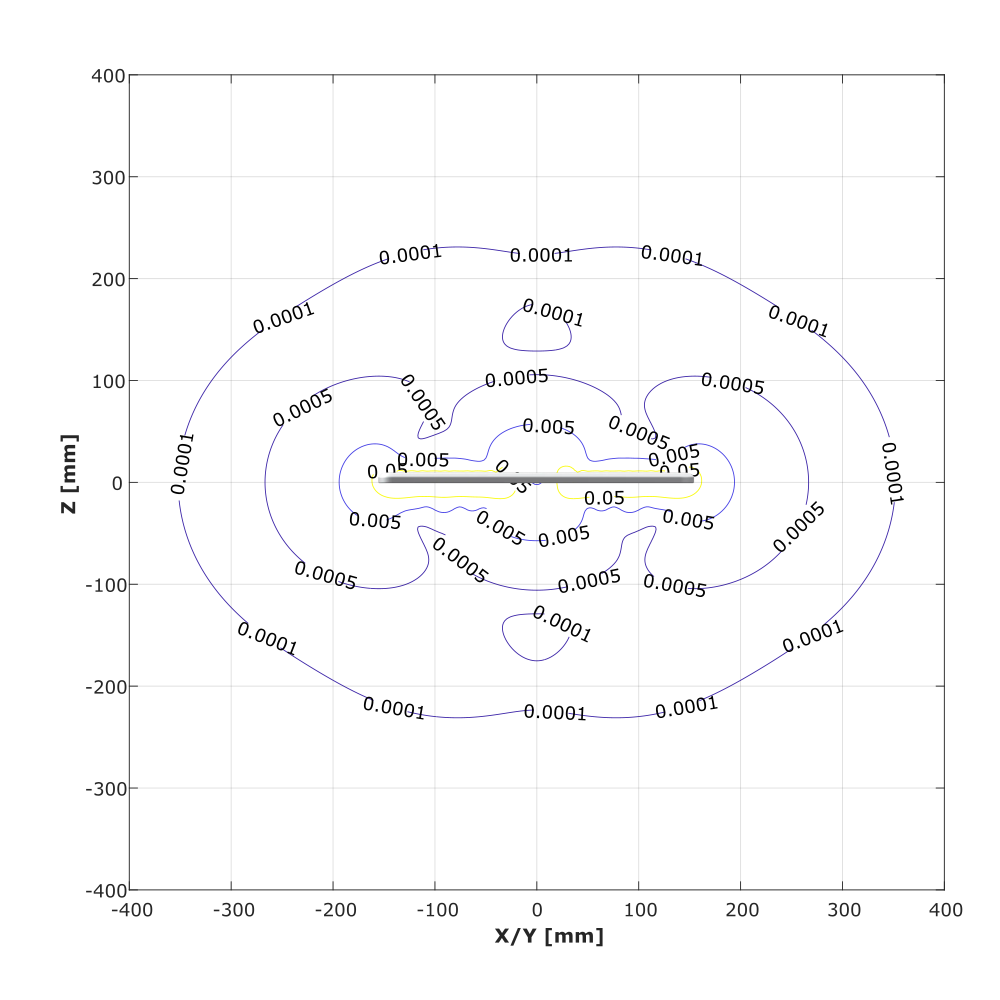

M3-18-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm

M3-25-SD00-10

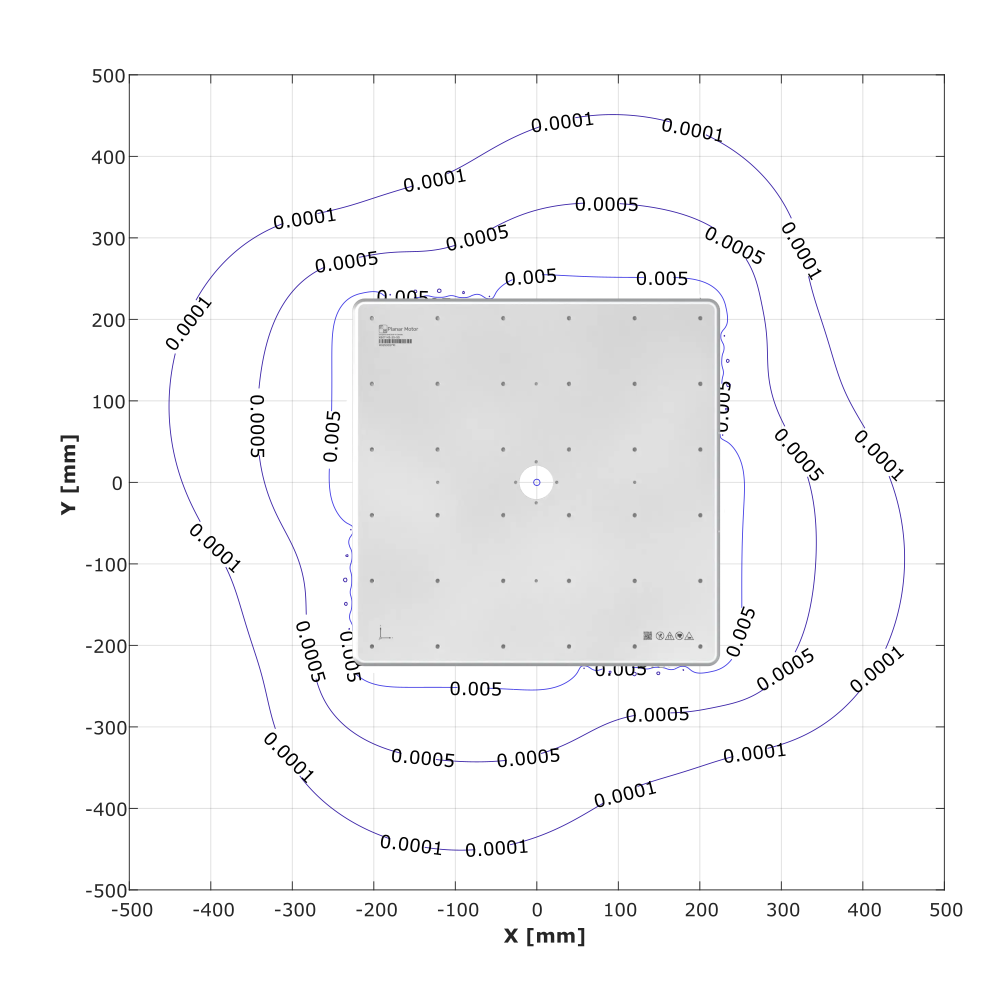

M3-25-SD00-10 magnetic field [Tesla] at bottom surface Z = 0 mm

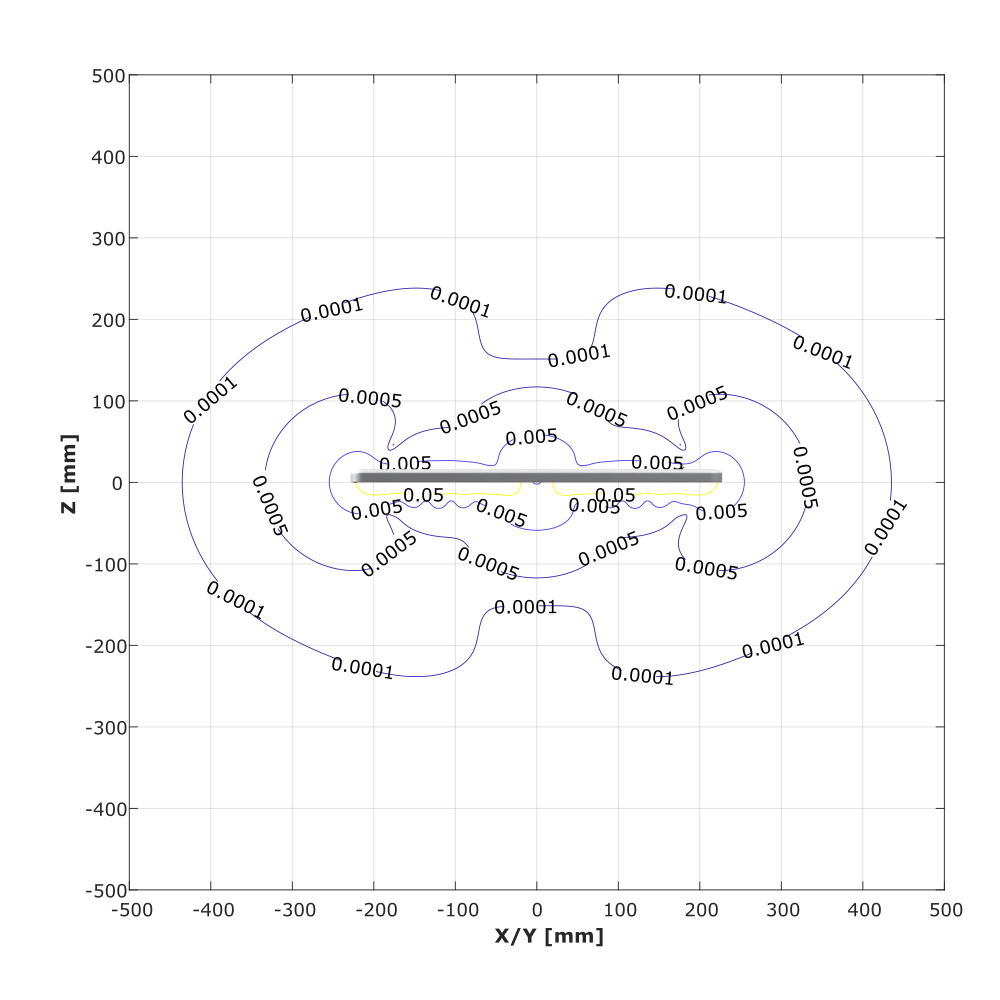

M3-25-SD00-10 magnetic field [Tesla] at vertical central plane Y = 0 mm
