General Data |
|
|
Model No |
M3-15-SD00-11 |
|
Description |

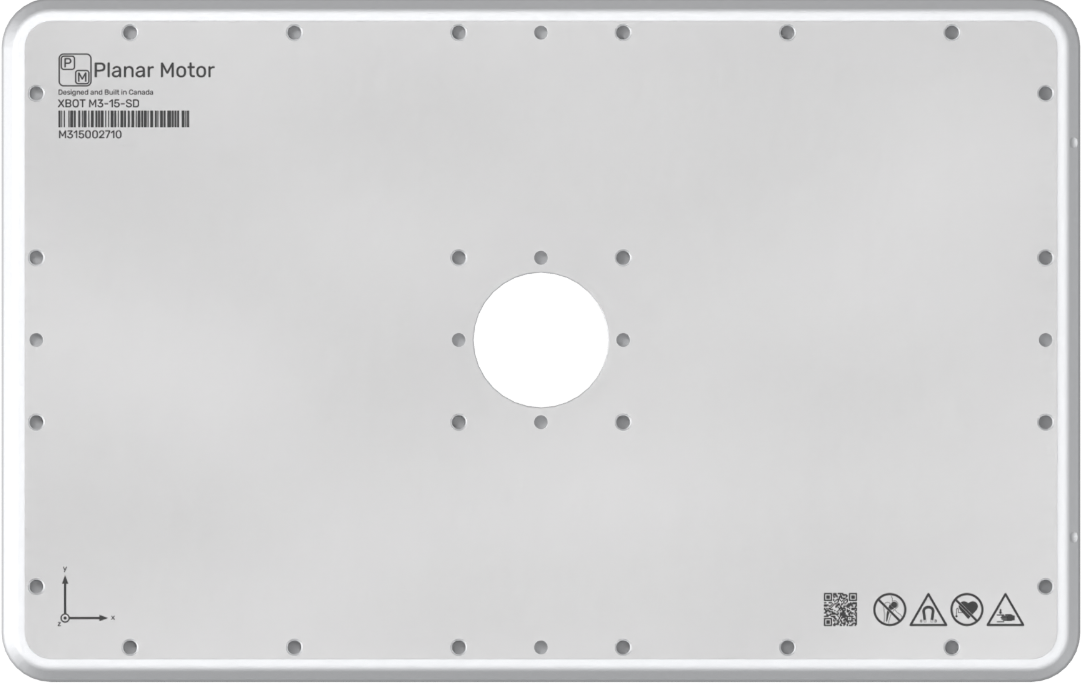

XBot (Mover) 1 micron repeatability typ. Absolute traceability |
|
Dimensions |
330 x 210 x 11 mm |
|
Payload |
6.0 kg |
|
Absolute ID |
Integrated |
|
Mechanical CAD data |
|
|
XBot Conditions |
|
|
Temperature |
|
|
Operating |
5°C to 70°C |
|
Relative Humidity |
|
|
Operating |
5% to 85%, non-condensing |
|
Ambient Conditions |
|
|
Temperature |
|
|
Storage / Transport |
-25°C to 70°C |
|
Relative Humidity |
|
|
Storage |
5% to 85% |
|
Transport |
95% at 40°C |
|
Mechanical properties |
|
|
Dimensions |
|
|
Length |
328 mm |
|
Width |
208 mm |
|
Height |
10.85 mm |
|
Weight |
3.44 kg |
|
Frame Material |
Anodized aluminum |
|
Bottom Cover Material |
Polycarbonate |
|
Bumper Material |
Anodized aluminum |
|
Payload Mounting Holes |
24 x M5x0.8* |
|
Payload Locating Holes |
8 x Ø4 mm dowel holes* |
|
Max. Torque on Threads |
5.5 Nm (5 mm minimum engagement) |
* Do not use magnetic screws / dowels on these holes as it may hinder performance.
