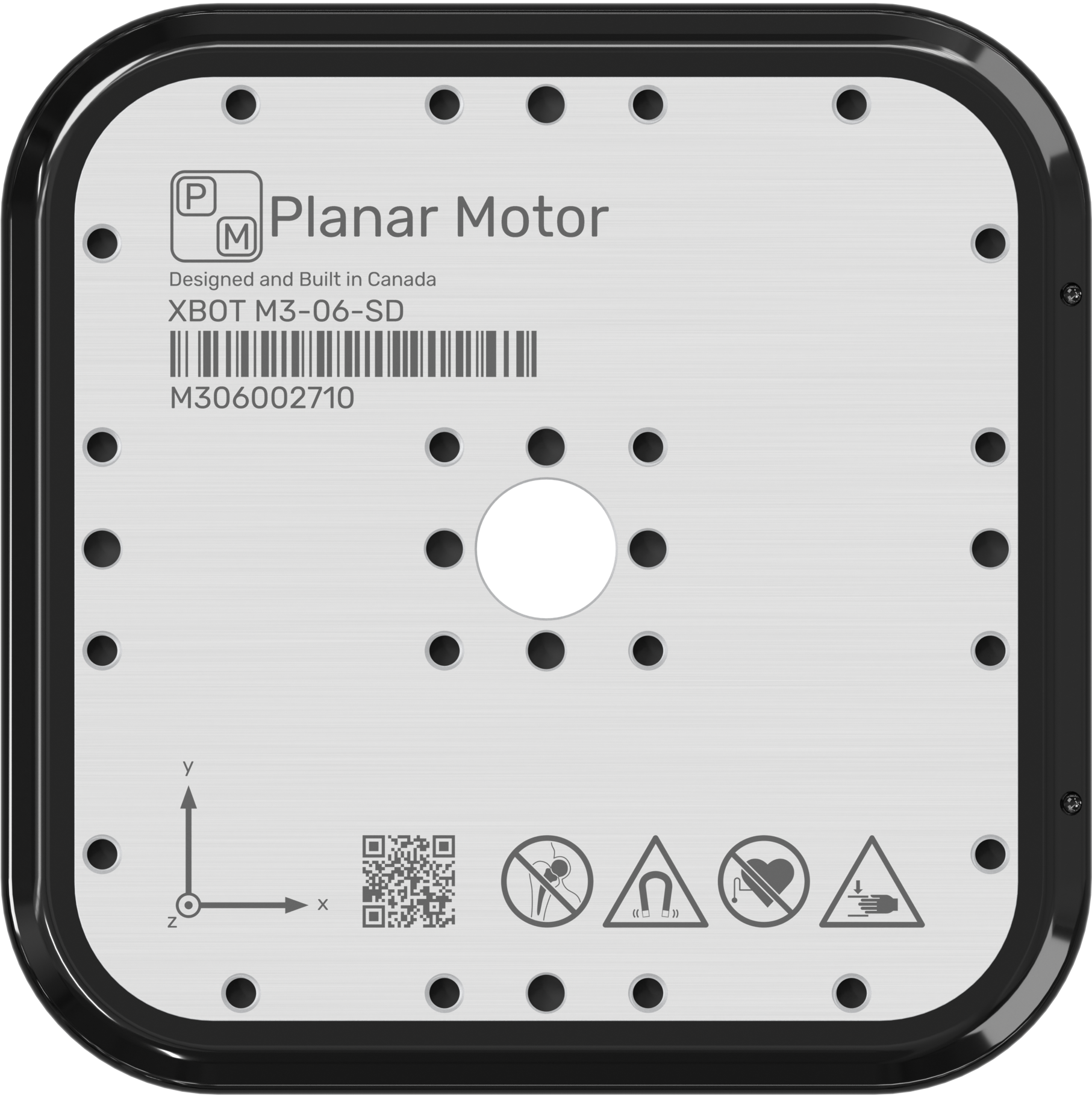

M3-06-SD00-04 (aka M3-06-04)

General Data

Model No

M3-06-04

Description

XBot (Mover)

1 micron repeatability typ.

Absolute traceability

Dimensions

120 x 120 x 10 mm

Payload

0.6 kg

Absolute ID

Integrated

Mechanical CAD data

2D (PDF) / 3D (STEP)

XBot Conditions

Temperature

    Operation

5°C to 70°C

Relative Humidity

    Operation

5% to 85%, non-condensing

Ambient Conditions

Temperature

    Storage / Transport

-25°C to 70°C

Relative Humidity

    Storage

5% to 85%

    Transport

95% at 40°C

Mechanical properties

Dimensions

    Length

118 mm

    Width

118 mm

    Height

9.85 mm

Weight

0.53 kg

Frame Material

Anodized aluminum

Bottom Cover Material

Polycarbonate

Bumper Material

Polycarbonate

Payload Mounting Holes

20 x M4x0.7^*

Payload Locating Holes

8 x Ø4 mm dowel holes^*

Max. Torque on Threads

2.5 Nm (4 mm minimum engagement)
