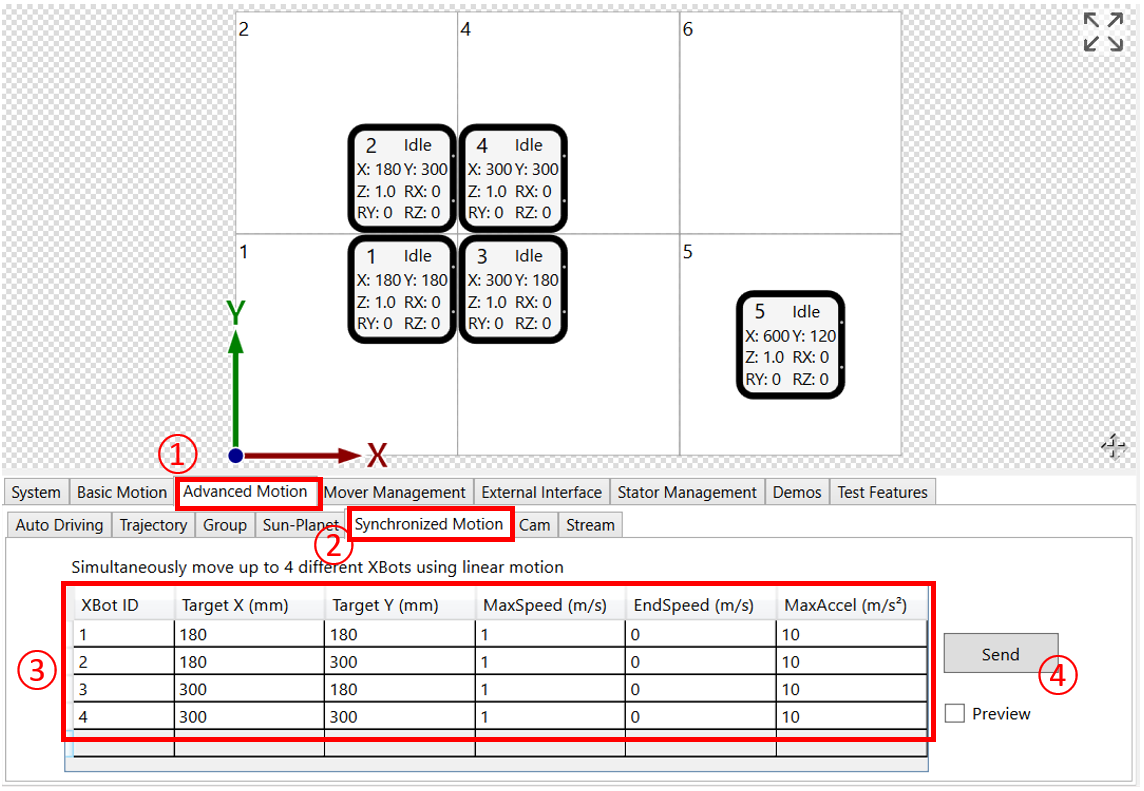

① Click the Advanced Motion tab
② Click the Synchronized Motion Tab
③ Enter the XBot IDs, target X, Y positions of the XBots you want to move, and speed / acceleration parameters. You can enter up to 4 XBots
④ Click “Send” when ready
Note:
-
The PMC will execute the motion commands simultaneously, but will not perform any automatic routing.
-
It is equivalent to sending multiple linear motion commands simultaneously.
