This command will obtain the serial number of the Flyway specified.
Fieldbus Interface

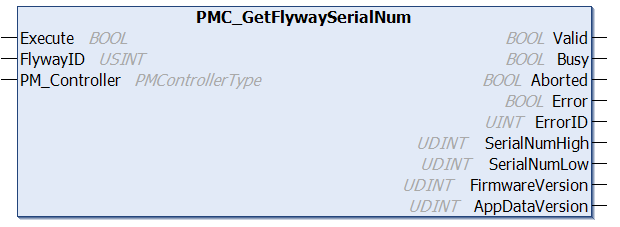

PMC_GetFlywaySerialNum
Inputs
|
Name
|
Data Type
|
Description
|
|
Execute
|
BOOL
|
Execution of the function block begins on a rising edge of this input. |
|
FlywayID
|
USINT
|
ID of the Flyway. |
|
PM_Controller
|
PMControllerType
|
Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
|
Name
|
Data Type
|
Description
|
|
Valid
|
BOOL
|
TRUE: output values have been successfully read. FALSE: unable to obtain output values. |
|
Busy
|
BOOL
|
Function block is active and must continue to be called. |
|
Aborted
|
BOOL
|
Command aborted by another command. |
|
Error
|
BOOL
|
If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
|
ErrorID
|
UINT
|
0x0: All OK. Otherwise, please see Fieldbus Reply Codes. |
|
SerialNumHigh
|
UDINT
|
High 32 bits of serial number (left 4 bytes)
|
|
SerialNumLow
|
UDINT
|
Low 32 bits of serial number (right 4 bytes)
|
|
FirmwareVersion
|
UDINT
|
Flyway firmware version number
|
|
AppDataVersion
|
UDINT
|
Flyway application data version
|
Ethernet Interface
FlywaySerialNumberRtn GetFlywaySerialNumber(int flywayID)
Parameters
|
Name
|
Type
|
Description
|
|
flywayID
|
int
|
Flyway ID
|
Returns
|
Name
|
Type
|
Description
|
|
FlywaySerialNumberRtn.PmcRtn
|
PMCRTN enum
|
ALLOK (0): Command Accepted. Otherwise, please see Ethernet Reply Codes. |
|
FlywaySerialNumberRtn.SerialNumberLow
|
uint
|
Low 32 bits of serial number (right 4 bytes)
|
|
FlywaySerialNumberRtn.SerialNumberHigh
|
uint
|
High 32 bits of serial number (left 4 bytes)
|
Conditions
|
Operating Conditions
|
|
Preconditions
|
None
|
|
Postconditions
|
Obtained the serial number of the specified Flyway
|
Description
This command will obtain the serial number of the Flyway specified.
Changelog
PMC v117.14.65 - Added AppDataVersion to the output
PMC v117.26.45 (Ethernet v117.15.01) - Command released in .NET library
