PMT-Assign Mover Stereotype to XBot

Mover Stereotypes can be used to define a set of parameters that can then be applied to one or more XBots. Assign Stereotype to XBot assigns a previously programmed Stereotype Definition to an XBot

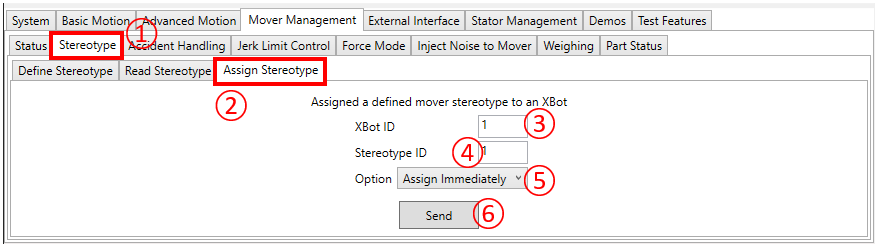

① Click the Mover Management \ Stereotype tab

② Click the Assign Stereotype tab

③ Enter the XBot ID

④ Enter the Stereotype ID

⑤ Choose whether to apply stereotype immediately, or add it to the XBot buffer

⑥ Click "Send" when ready
