Measure Moment of Inertia Async

Starts and runs a single-axis inertia measurement on an XBot and returns the result on the same block. The block stays Busy while the measurement runs and finishes on Done (success) or Error (failure). On Done the MomentofInertia output holds the measured value.

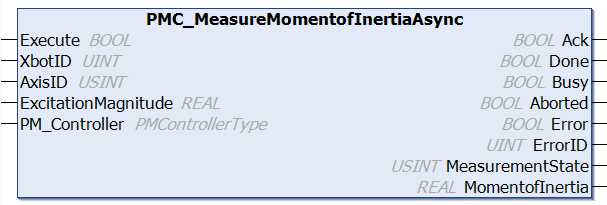

Fieldbus Interface

PMC_MeasureMomentofInertiaAsync

Inputs

Name

Data Type

Description

Execute

BOOL

 Execution of the function block begins on a rising edge of this input.

XbotID

UINT

 ID of the XBot. Real XBot IDs [1,78].

AxisID

USINT

Axis to measure: 0 = X, 1 = Y, 2 = Z, 3 = Rx, 4 = Ry, 5 = Rz

ExcitationMagnitude

REAL

Excitation strength (N for X/Y/Z, Nm for Rx/Ry/Rz). 0 = Controller default. Capped at 10 N (linear) / 1 Nm (rotational).

PM_Controller

PMControllerType

 Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC.
Outputs

Name

Data Type

Description

Ack

BOOL

 Command has been accepted by the PMC when Ack = TRUE.

Done

BOOL

 Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE)

Busy

BOOL

 Function block is active and must continue to be called.

Aborted

BOOL

 Command aborted by another command.

Error

BOOL

 If there is an error in processing the command, then Error = TRUE, otherwise, FALSE.

ErrorID

UINT

 0x0: All OK. Otherwise, please see Fieldbus Reply Codes.

MeasurementState

USINT

Progress state of the measurement:

  • 0: Idle

  • 1: In progress

  • 2: Done

  • 3: Failed

MomentofInertia

REAL

Inertia or moment of inertia (kg for X/Y/Z, kg·m² for Rx/Ry/Rz)

Conditions

Operating Conditions

Preconditions

  • XBot is in the Idle State, at a consistent location

  • No other measurements for Moment of Inertia is currently taking place

Postconditions

  • XBot is unlocked

  • Inertia or Moment of Inertia is provided in the output

Description

Starts and runs a single-axis inertia measurement on an XBot and returns the result on the same block. The block stays Busy while the measurement runs and finishes on Done (success) or Error (failure). On Done the MomentofInertia output holds the measured value.

The XBot will be locked for the duration of the measurement, i.e., motion commands will not be accepted by the XBot while running this command


Recommended usage:

  1. Confirm the target XBot is idle.

  2. Set XbotID, AxisID, and ExcitationMagnitude (0 for the default), then raise Execute. Keep calling the block while Busy is true.

  3. On Done read MomentofInertia; on Error the measurement failed — read ErrorID for more details.

Changelog

PMC v117.27.14 (Fieldbus v6.03.063.00) - Command released in fieldbus libraries
