General Data |
|
|
Cable Name |
0.6 m / 0.8 m PMNet cable |
|
PMI Article Number |
NC-006-CS (0.6 m) NC-008-CS (0.8 m) |
|
Short Description |
Network cable for Planar Motor internal highspeed communication |
|
Long Description |
Network cable for Planar Motor internal highspeed data transfer 12 pin, A coded Straight plug with push to lock connection Black Housing Cable length 0.6 m / 0.8 m |
|
Used for |
Connection between Flyways |
|
Certification |
E119932-I RU AWM STYLE 20276 80°C 30V VW-1 |
|
RoHS 2011/65/EU |
EN IEC 63000:201 |
|

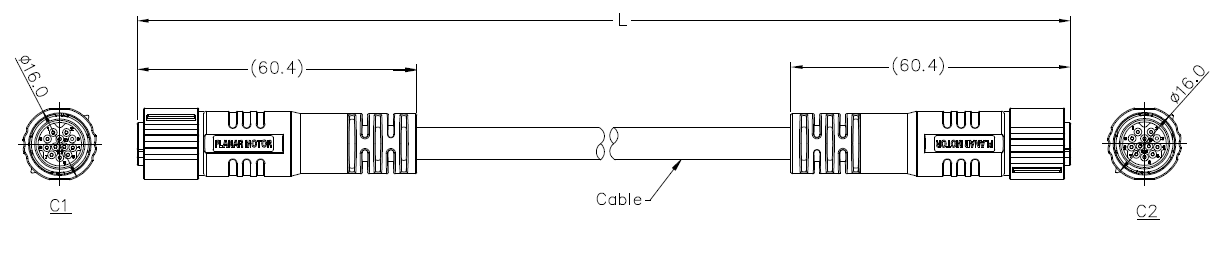

Dimensions |
|
|
Length of cable |
0.65 m (NC-006-CS) 0.85 m (NC-008-CS) |
|
Cable weight |
0.15 kg (NC-006-CS) 0.20 kg (NC-008-CS) |
|
Diameter |
8.0 mm |
|
Bend Radius Single Bend |
≥8 x cable diameter |
|
Characteristics Head 1 |
|
|
Plug Type |
M12, 12 Pin Female, A coded with push lock |
|
Degree of Protection |
IP68/ IP69K |
|
Characteristics Head 2 |
|
|
Plug Type |
M12, 12 Pin Female, A coded with push lock |
|
Degree of Protection |
IP68/ IP69K |
|
Cable |
|
|
Ferrite Cores |
None |
|
Outer Jacket Colour |
Black |
