CAP-M20 is a specialized protective sealing cap designed for unused power connectors on Planar Motor systems. To maintain the system's certified environmental protections, any unused power ports must be sealed using this cap.
⚠️ Critical Requirement: Achieving the specified IP65/IP67 ingress rating on Planar Motor modules requires caps to be properly installed on all unused power ports.
Application Environment: Designed for adverse environments where moisture, dust, or pollution is present.
|
General Data |
|
|
Model No |
CAP-M20 |
|
Description |
M20 power out port protection cap Push Lock connection |
|
Used for |
Covers unused M20 power out port for complete water and dust ingress protection. |
|
Dimensions |
Ø 27.9 x 40.2 mm |
|
Weight |
35 g |
|
Materials |

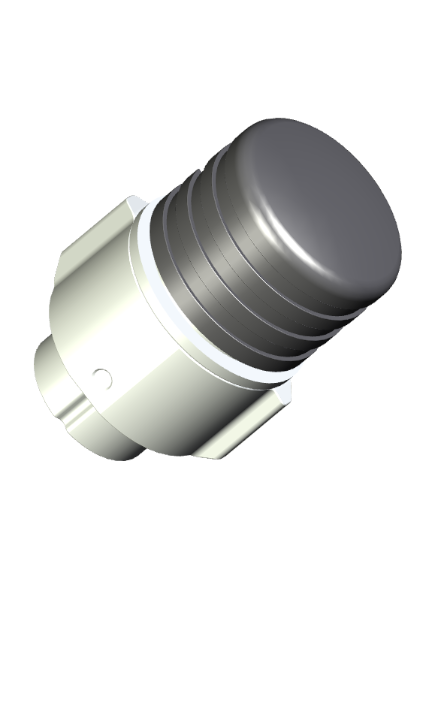

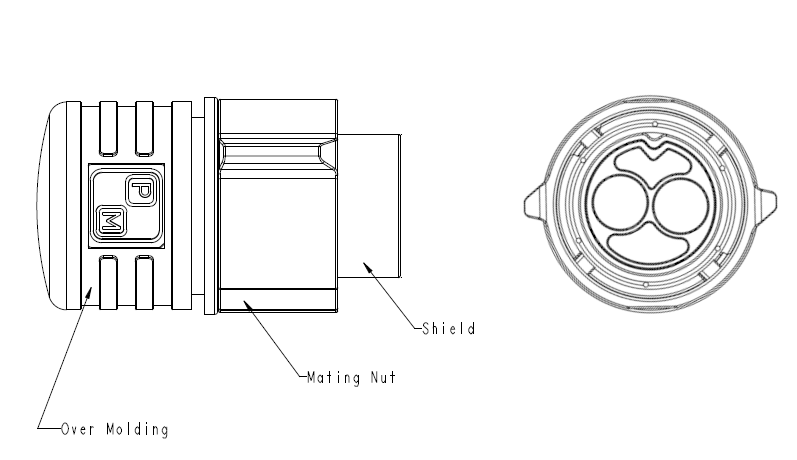

Shield and Mating Nut - Metal Over Molding and Housing - Thermoplastic, Black O-Ring - rubber |
|
Degree of Protection per EN 60529 |
IP65/67 when connected |
|
Compatible flyways |
S3-xx-04.08 S4-xx-04.08 |
|
Ordering Information |
|
|
Part No. |
CAP-M20-10 |
|
Description |
10-pack of M20 power port protection caps |
|
Package Weight |
350 g |
|
Ordering Note |
While technical specifications throughout this document refer to the individual component CAP-M20, this product is sold exclusively in packages of 10. To place an order, please use the package part number: CAP-M20-10 |
