Overwrite Flyway Configuration
This command is used to overwrite the configuration for a particular Flyway.
Fieldbus Interface

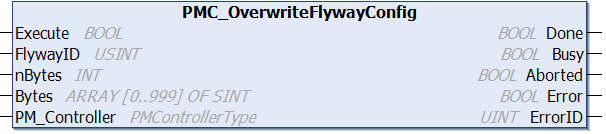

PMC_OverwriteFlywayConfig
Inputs
Name | Data Type | Description |
|---|
Execute | BOOL | Execution of the function block begins on a rising edge of this input. |
FlywayID | USINT | ID of the Flyway to overwrite. |
nBytes | INT | Number of bytes in the configuration file (up to 1,000 bytes). |
Bytes | SINT[0..999] | The configuration file as a raw binary |
PM_Controller | PMControllerType | Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
Name | Data Type | Description |
|---|
Done | BOOL | Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE) |
Busy | BOOL | Function block is active and must continue to be called. |
Aborted | BOOL | Command aborted by another command. |
Error | BOOL | If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
ErrorID | UINT | 0x0: All OK. Otherwise, please see PMC Reply Codes. |
Conditions
Operating Conditions |
|---|
Preconditions | PMC is in INACTIVE state. |
Postconditions | Flyway is updated with the new configuration. |
Description
This command is used to overwrite the configuration for a particular Flyway.
