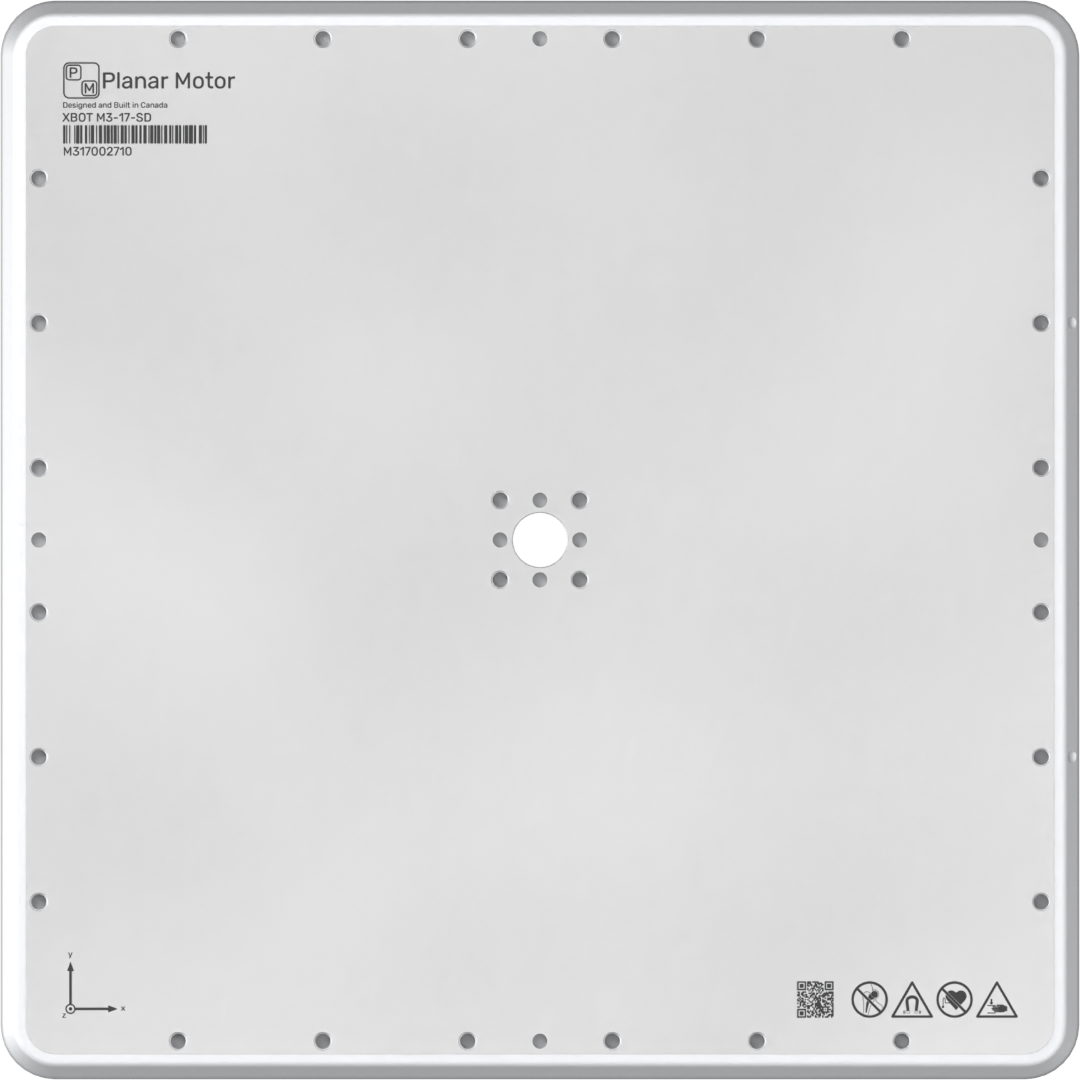

M3-17-SD00-10

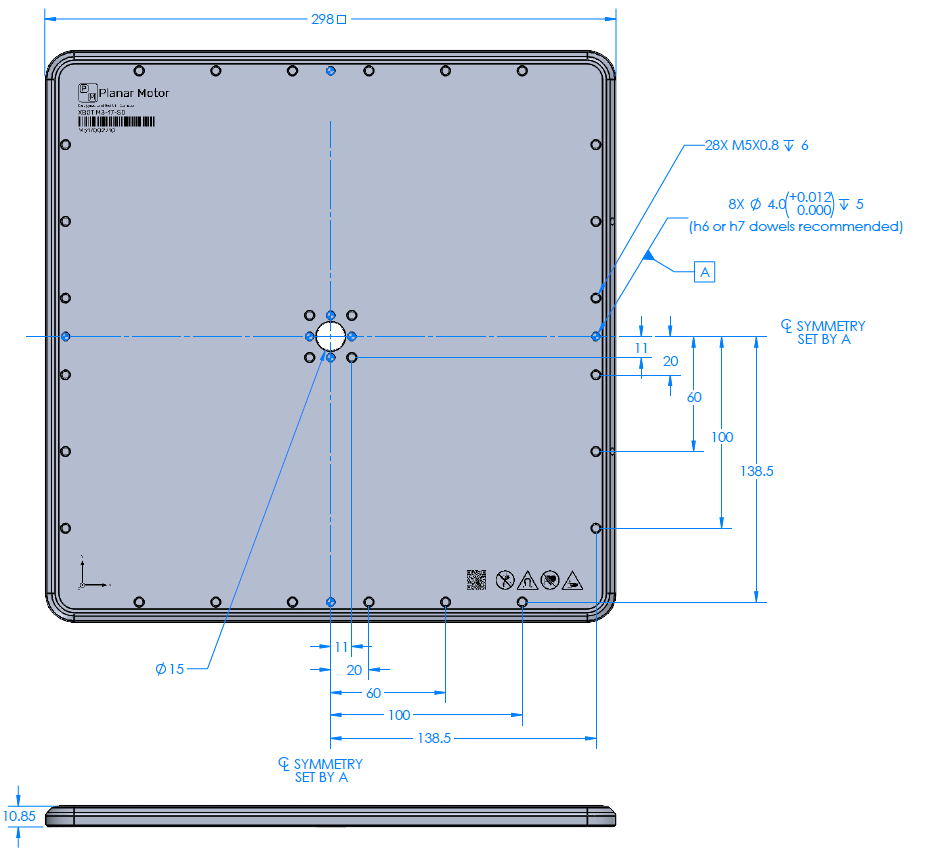

Dimensional drawing of M3-17-SD00-10 XBot
General Data | |
Model No | M3-17-SD00-10 |
Description | XBot (Mover) 300 x 300 x 12 mm 1 micron repeatability typ. Absolute traceability |
Payload | 8.0 kg |
Absolute ID | Integrated |
XBot Conditions | |
Temperature | |
Operating | -25°C to 70°C*,** |
Relative Humidity | |
Operating | 5% to 85%, non-condensing |
Ambient Conditions | |
Temperature | |
Storage | -40°C to 70°C |
Transport | -40°C to 70°C |
Relative Humidity | |
Storage | 5% to 85% |
Transport | 95% at 40°C |
Mechanical properties | |
Dimensions | |
Length | 298 mm |
Width | 298 mm |
Height | 10.85 mm |
Weight | 4.97 kg |
Frame Material | Anodized aluminum |
Bottom Cover Material / Adhesive | Lexan 8B35 / 3M™ 468MP |
Bumper Material | Anodized aluminum |
Payload Mounting Holes | 28 x M5x0.8*** |
Payload Locating Holes | 8 x Ø4 mm dowel holes*** |
Max. Torque on Threads | 5.5 Nm (5 mm minimum engagement) |
*Higher temperature XBots may be made by special order. Contact the manufacturer for more information.
**See Flyway Technical Details section for information on maximum ambient conditions for the Flyway.
*** Do not use magnetic screws / dowels on these holes as it may hinder performance.
