M3-10-SD00-10

General Data
Model No	M3-10-SD00-10

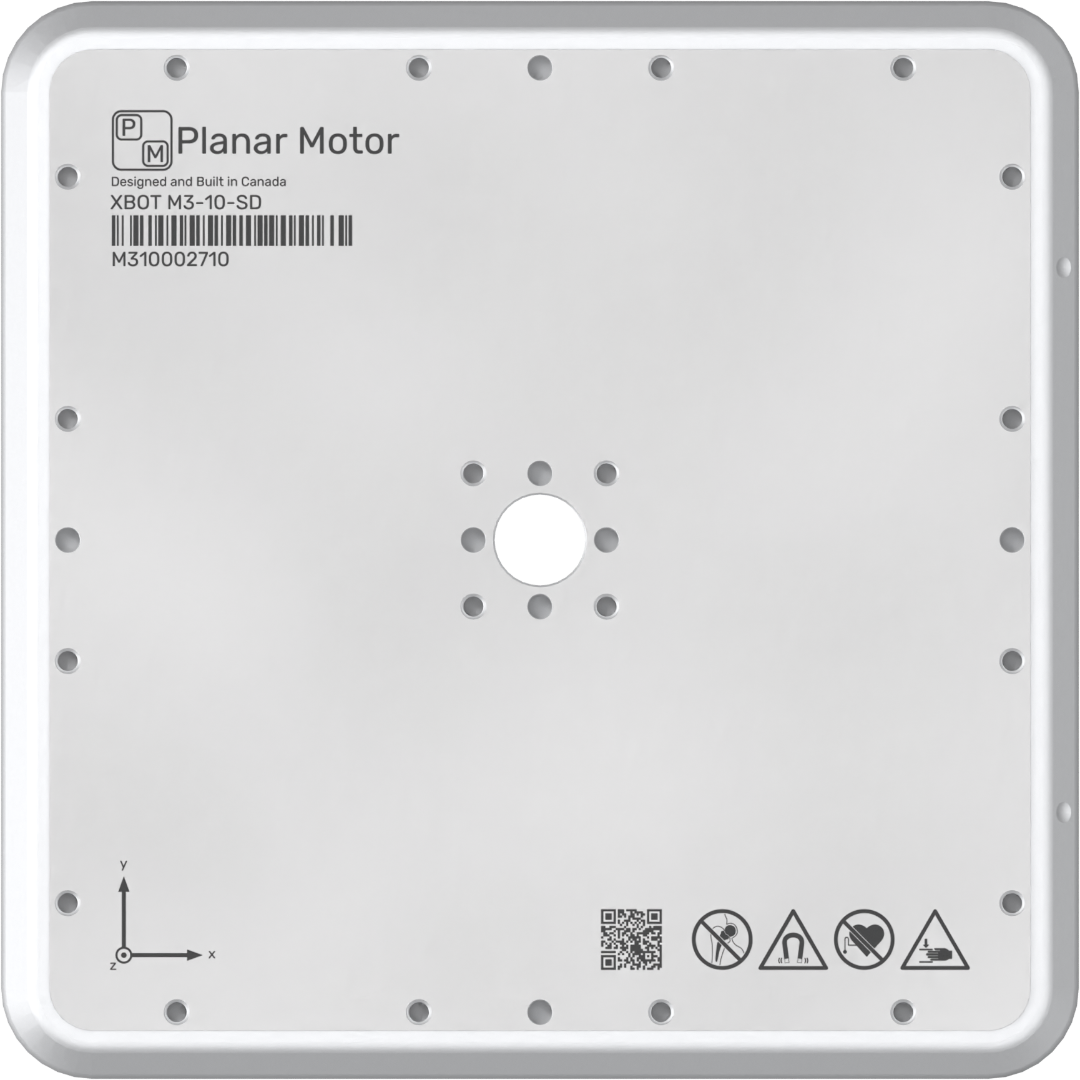

Description	XBot (Mover) 180 x 180 x 10 mm 1 micron repeatability typ. Absolute traceability
Payload	1.8 kg
Absolute ID	Integrated
Xbot Conditions
Temperature
Operating	-25°C to 70°C^,*
Relative Humidity
Operating	5% to 85%, non-condensing
Ambient Conditions
Temperature
Storage	-40°C to 70°C
Transport	-40°C to 70°C
Relative Humidity
Storage	5% to 85%
Transport	95% at 40°C
Mechanical properties
Dimensions
Length	178 mm
Width	178 mm
Height	9.85 mm
Weight	1.47 kg
Frame Material	Anodized aluminum
Bottom Cover Material / Adhesive	Lexan 8B35 / 3M™ 468MP
Bumper Material	Anodized aluminum

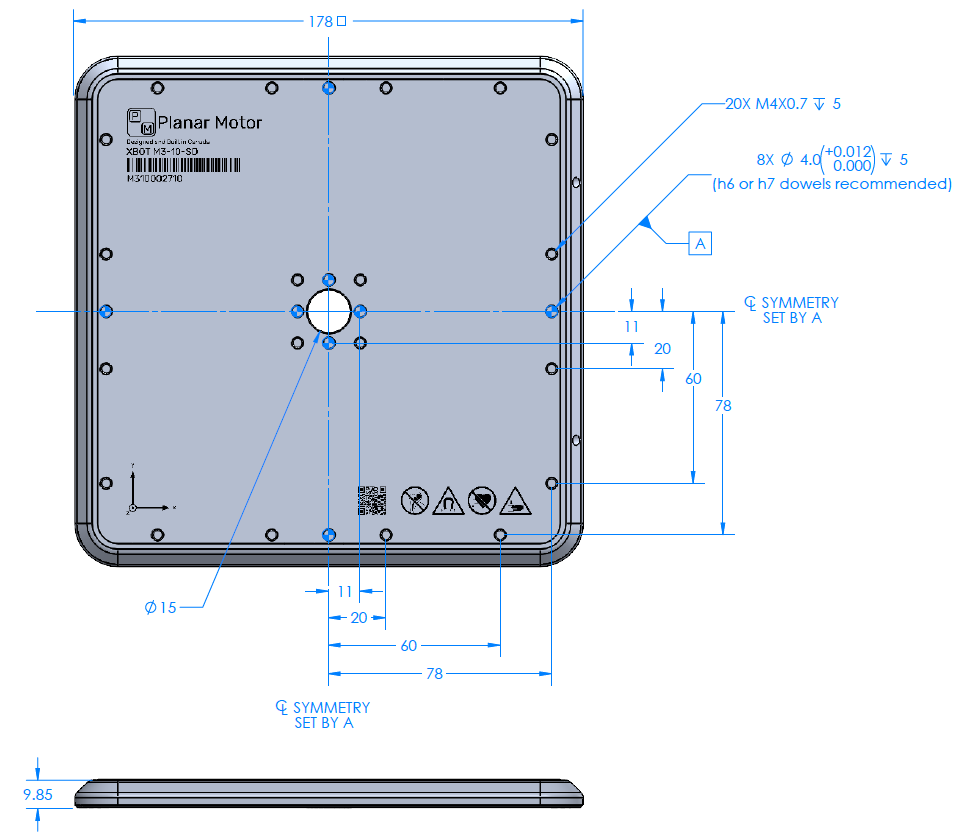

Payload Mounting Holes	20 x M4x0.7^***
Payload Locating Holes	8 x Ø4 mm dowel holes^***
Max. Torque on Threads	2.5 Nm (4 mm minimum engagement)

*Higher temperature XBots may be made by special order. Contact the manufacturer for more information.

**See Flyway Technical Details section for information on maximum ambient conditions for the Flyway.

*** Do not use magnetic screws / dowels on these holes as it may hinder performance.
